Mode 15: Automatic activation
In the online change mode "Automatic activation", the new cam data are accepted directly after the
internal recalculation of the data from the application unit [unit] into the internal unit [increments]
has been completed.
• The controller does not need to be inhibited for acceptance.

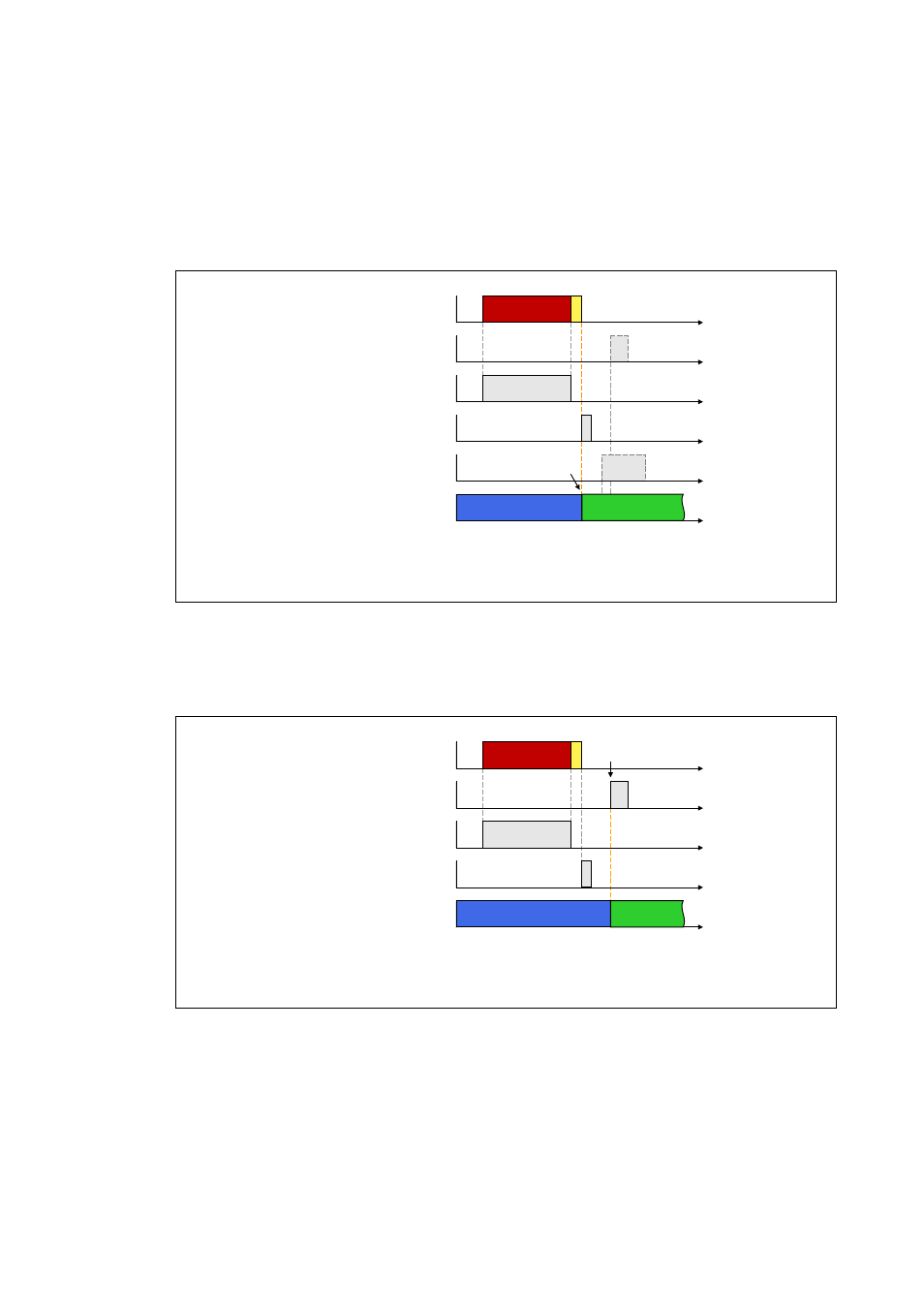

[12-50] Online change mode "Automatic activation"
Mode 10: Manual activation
In the online change mode "Manual activation", the new cam data are accepted when the
CAM_bActivateNewData control input is set to TRUE.
[12-51] Online change mode "Manual activation"
Download/change of cam data active
Internal recalculation of cam data active
Automatic activation
W
&$0BE$FWLYDWH1HZ'DWD
W
&$0BE%XV\
W
&$0BE1HZ'DWD$YDLODEOH
W
2QOLQHFKDQJH
W
&DPGDWD%
&DPGDWD$
n
o
W
&,1+
p
Download/change of cam data active
Internal recalculation of cam data active
Manual activation
W
&$0BE$FWLYDWH1HZ'DWD
W
&$0BE%XV\
W
&$0BE1HZ'DWD$YDLODEOH
W
2QOLQHFKDQJH
W
&DPGDWD%
&DPGDWD$
n
o
p
