9 I/O terminals
9.4 Digital inputs
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
9.4 Digital inputs
The controller is provided with eight freely configurable digital inputs.
• All digital inputs can be used for touch probe.  Touch probe detection ( 327)
• The control input RFR of terminal strip X5 for controller enable is fixedly connected to the device
control.

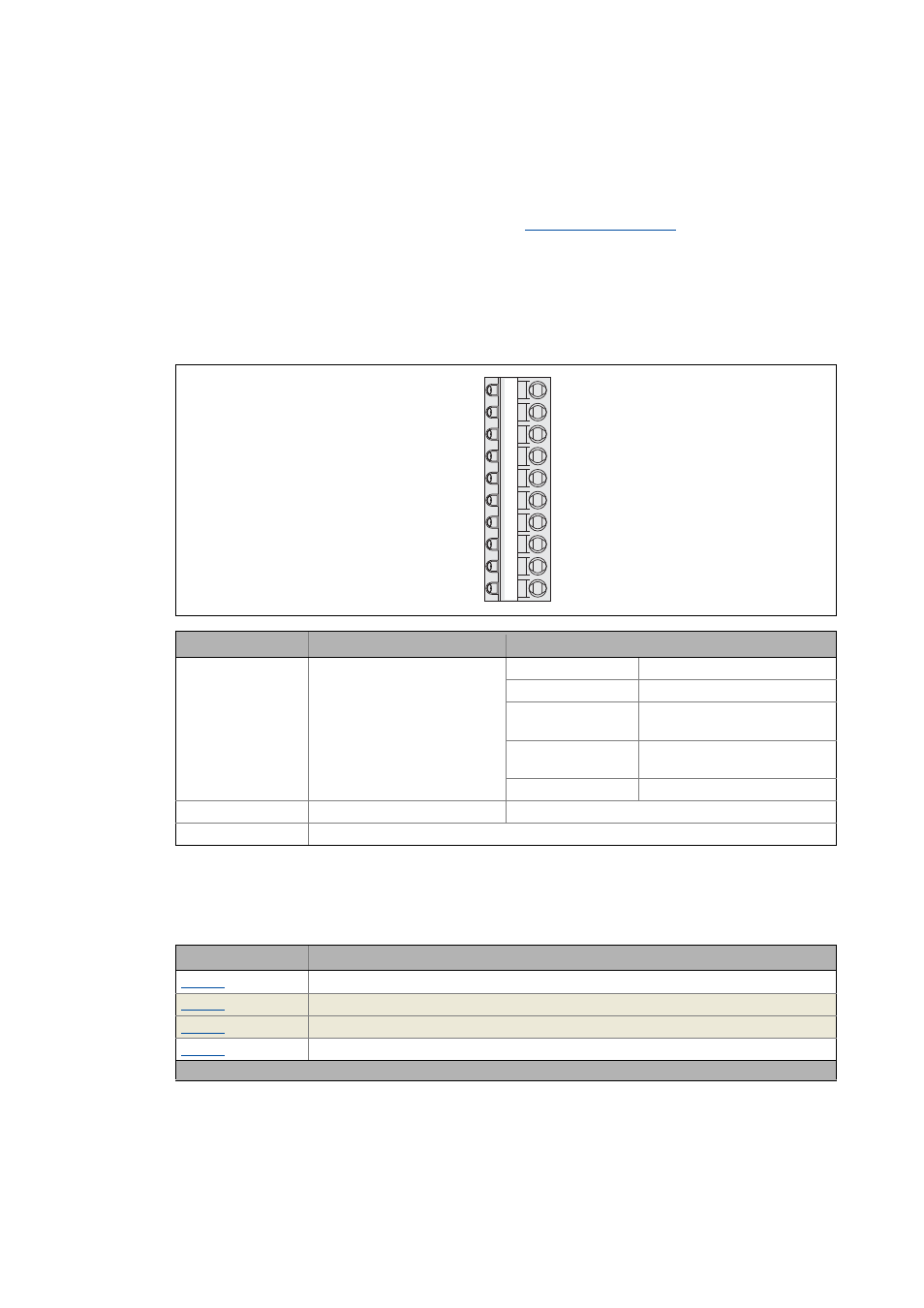

9.4.1 Terminal assignment/electrical data
9.4.2 Parameter setting
Short overview of parameters for the digital inputs:
Terminal Application Electrical data
X5/DI1
X5/DI8
Digital input 1 ... 8 LOW level: 0 ... +5 V
HIGH level: +15 ... +30 V
Input current: 8 mA per input
(at 24 V)
Electric strength of
external voltage
Max. ±30 V
Conversion rate: 1 kHz
X5/RFR Controller enable See digital inputs
X5/GI Reference potential (digital ground)
X5
GI
RFR
DI1
DI2
DI3
DI4
DI5
DI6
DI7
DI8
Parameter Info
C00114 Digital input x - terminal pol.
C00443 Status: Digital inputs
C02803 Status word: Digital inputs
C02830 Digital inputs: Delay time
Highlighted in grey = display parameter
