12 Basic drive functions
12.13 Cam data management
590
Lenze · 9400 Servo PLC· Reference manual · DMS 4.0 EN · 11/2013 · TD05/06
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

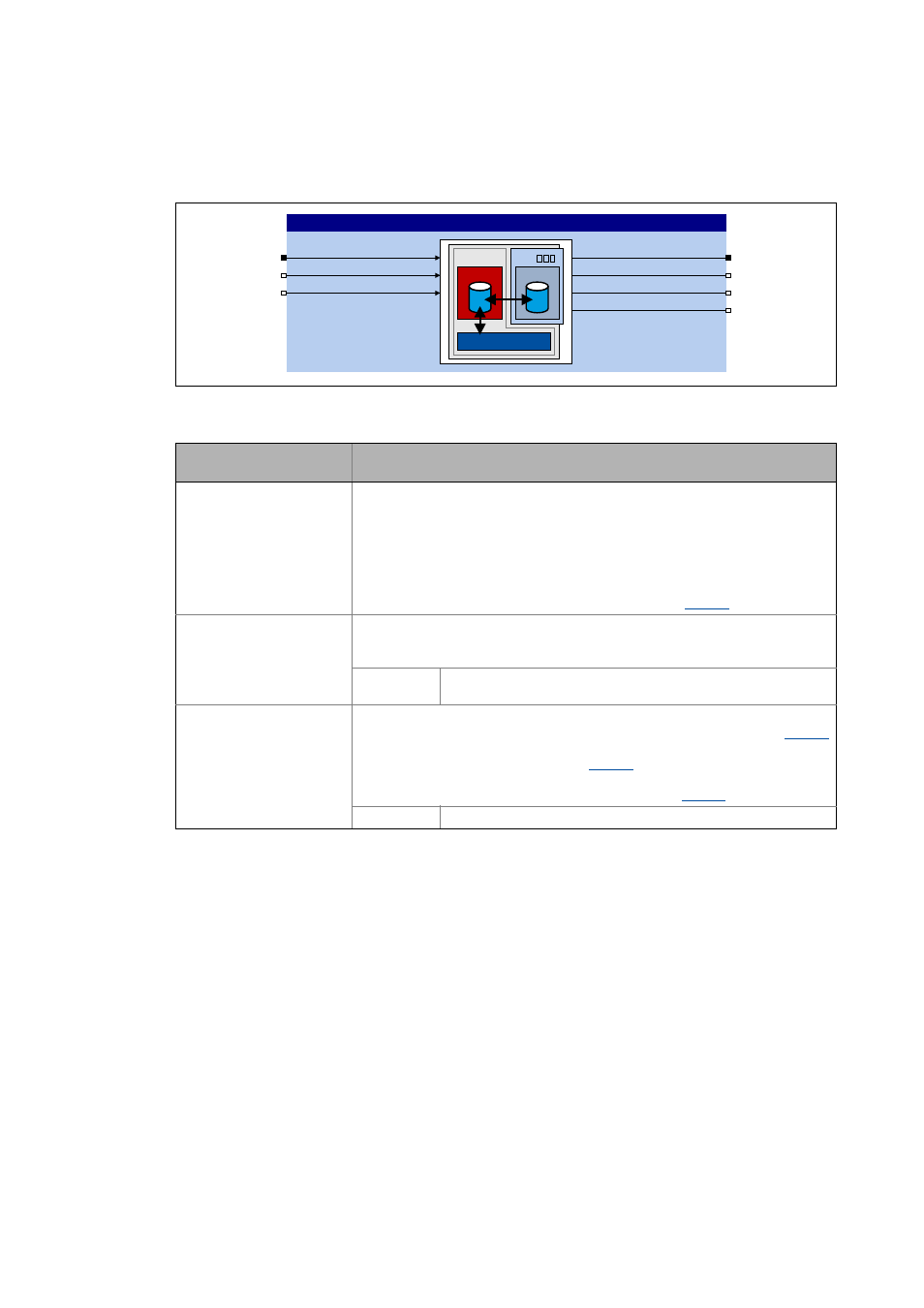

12.13.2 Internal interfaces | "LS_CamInterface" system block
Inputs
Identifier
DIS code | data type
Information/possible settings
CAM_dnProductNumber
DINT
Product number
• The basic function manages the product number for all cam FBs within the
application.
• The product number is displayed in the »Cam Manager« in squared brackets after
the product name.
• If the product number is to be defined via parameters instead, a corresponding
user code must be created in the application and connected with this input.
• The highest product number to be created is shown in C02908 .
CAM_bActivateProduct
BOOL
Activate product
• The change-over to another product is caused by an event which is generated
from the application.
TRUE The product with the product number at input
CAM_dnProductNumber is activated.
CAM_bActivateNewData
BOOL
Reload cam data from the backup memory (controlled acceptance)
• Only possible if the online change mode "10: Manual Activation" is set in C02905 .
• If the online change mode "16: Automatic activation with CINH" (Lenze setting)
or "15: Automatic activation" is set in C02905 , the new cam data are accepted
immediately after a download and this input has no function.
• The current status of the data acceptance is shown in C02906 .
TRUE Reload cam data from the backup memory.
/6B&DP,QWHUIDFH
&$0BE$FWLYDWH3URGXFW
&$0BE$FWLYDWH1HZ'DWD
&$0BGQ$FWLYH3URGXFW
&$0BE(UURU
&$0BGQ3URGXFW1XPEHU
&$0BE'RZQORDG%XV\
&$0BE1HZ'DWD$YDLODEOH
5$0 00
&DPGDWD &DPGDWD
&DPDSSOLFDWLRQ
