4 PLC functionality
4.4 Use of function blocks
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

How to create the codes for function block instances:
1. Open the Parameter manager in the Resources tab.
2. Use the menu command InsertList to open the dialog window Insert list.
3. Activate the Instance field
4. Enter list names (example: "ramp generator").
After being imported into Engineer, the list name appears as pulldown menu in the "All
parametersIEC 1131 parameter" register.
5. Confirm with OK
6. Go to the Template selection field and enter the name of the L_SdRampGenerator function
block
7. Go to the Base variable and enter the name of the instanced POU using the function key
. Enter 0 in the base index and subindex fields.

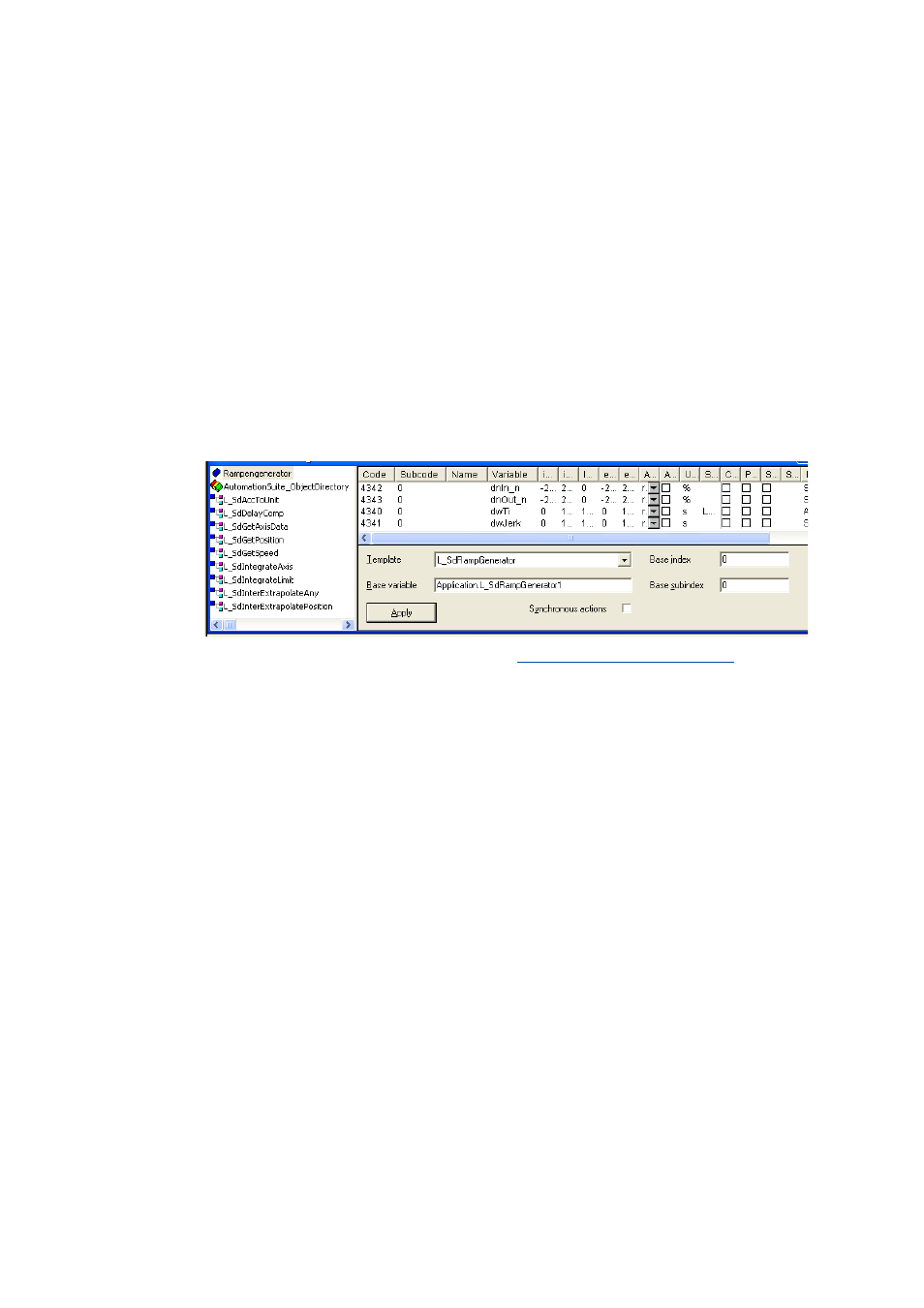

8. Select Apply . The following image appears:
9. Import new codes as described in section " Import in the »Engineer« project ". ( 65)
In the All parameters tab, the Ramp generator category is displayed.
