Lenze · 9400 Servo PLC· Reference manual · DMS 4.0 EN · 11/2013 · TD05/06
439
12 Basic drive functions
12.4 Manual jog
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
12.4.2 Parameter setting
• Parameterisation dialog in »Engineer«: Tab Application parameters  Dialog level Overview 
All basic functions  Manual jog
• Short overview of the parameters for manual jog:
12.4.2.1 Smooth start and quick stop of the drive

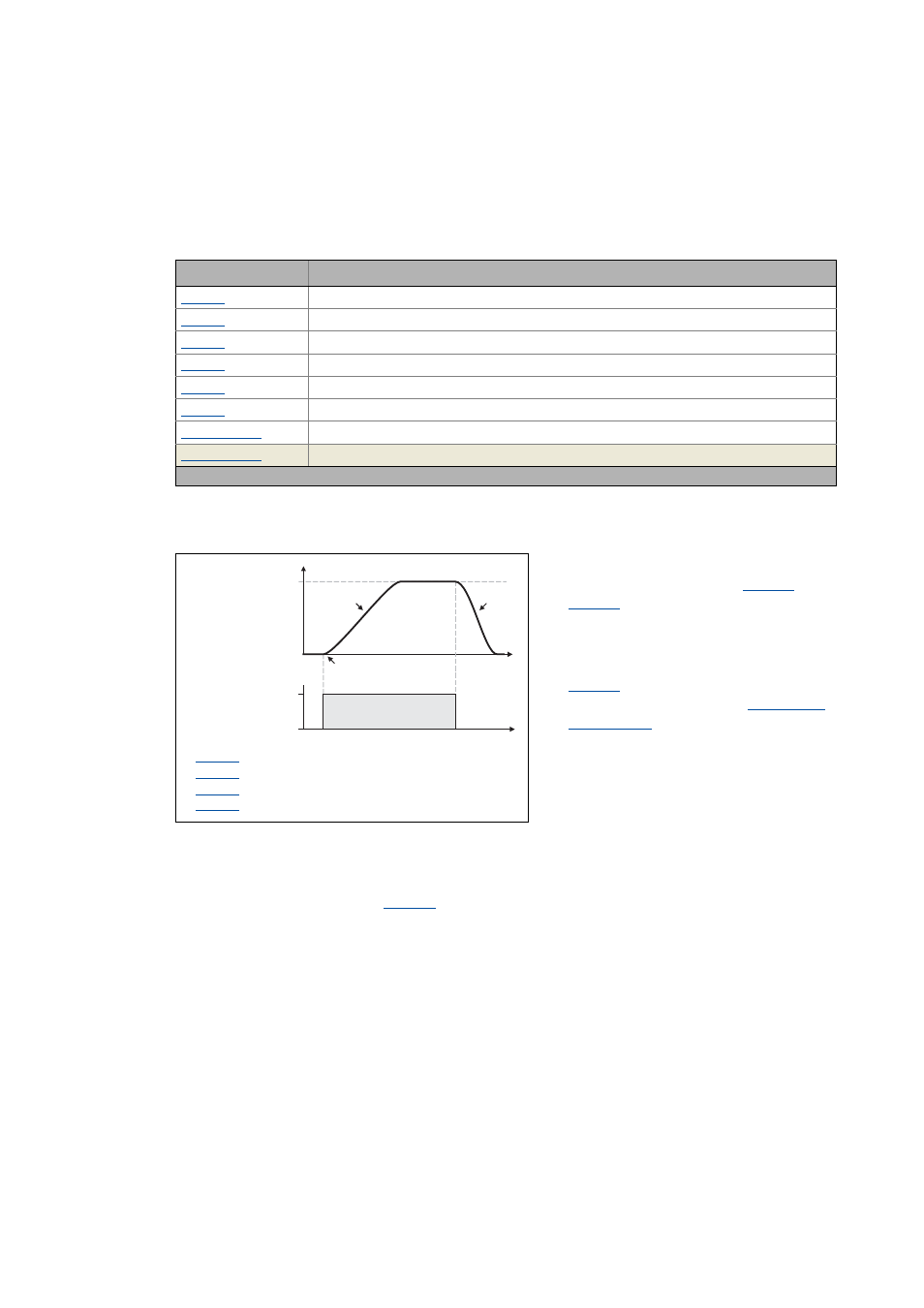

[12-16] Example: Smooth start and quick stop

Tip!
A quick deceleration (
C02623 ) reduces the time from letting go of the "Jog key" to the
actual stop of the drive, so that the drive can thus be better positioned "by eye" and the
desired stop position is not overtravelled.
Parameter Info
C02620 Manual jog: Speed 1
C02621 Manual jog: Speed 2
C02622 Manual jog: Acceleration
C02623 Manual jog: Deceleration
C02624 Manual jog: S-ramp time
C02625 Manual jog: Step distance
C02626/1...16 Manual jog: Index stop position
C02627/1...16 Manual jog: Selected stop position
Highlighted in grey = display parameter
 C02620 : Manual jog: Speed 1
 C02622 : Manual jog: Acceleration
 C02623 : Manual jog: Deceleration
 C02624 : Manual jog: S-ramp time
• Different values for acceleration and
deceleration can be set in C02622 /
C02623 in order to implement a
smooth start and a quick stop of the
drive.
• By entering a relative S-ramp time in
C02624 both ramps can be set in S-
shape for jerk reduction.  Setting the
S-ramp time ( 422)
n
t
TRUE
FALSE
bJogPositive
t
Œ


Ž
