4 PLC functionality
4.1 Setting the controller in »Engineer«
36
Lenze · 9400 Servo PLC· Reference manual · DMS 4.0 EN · 11/2013 · TD05/06
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
Assignment of a PLC project for a newly created ServoPLC
If the PLC project has not yet been assigned, please observe the following instructions.

How to export a PLC application from the »Engineer« project

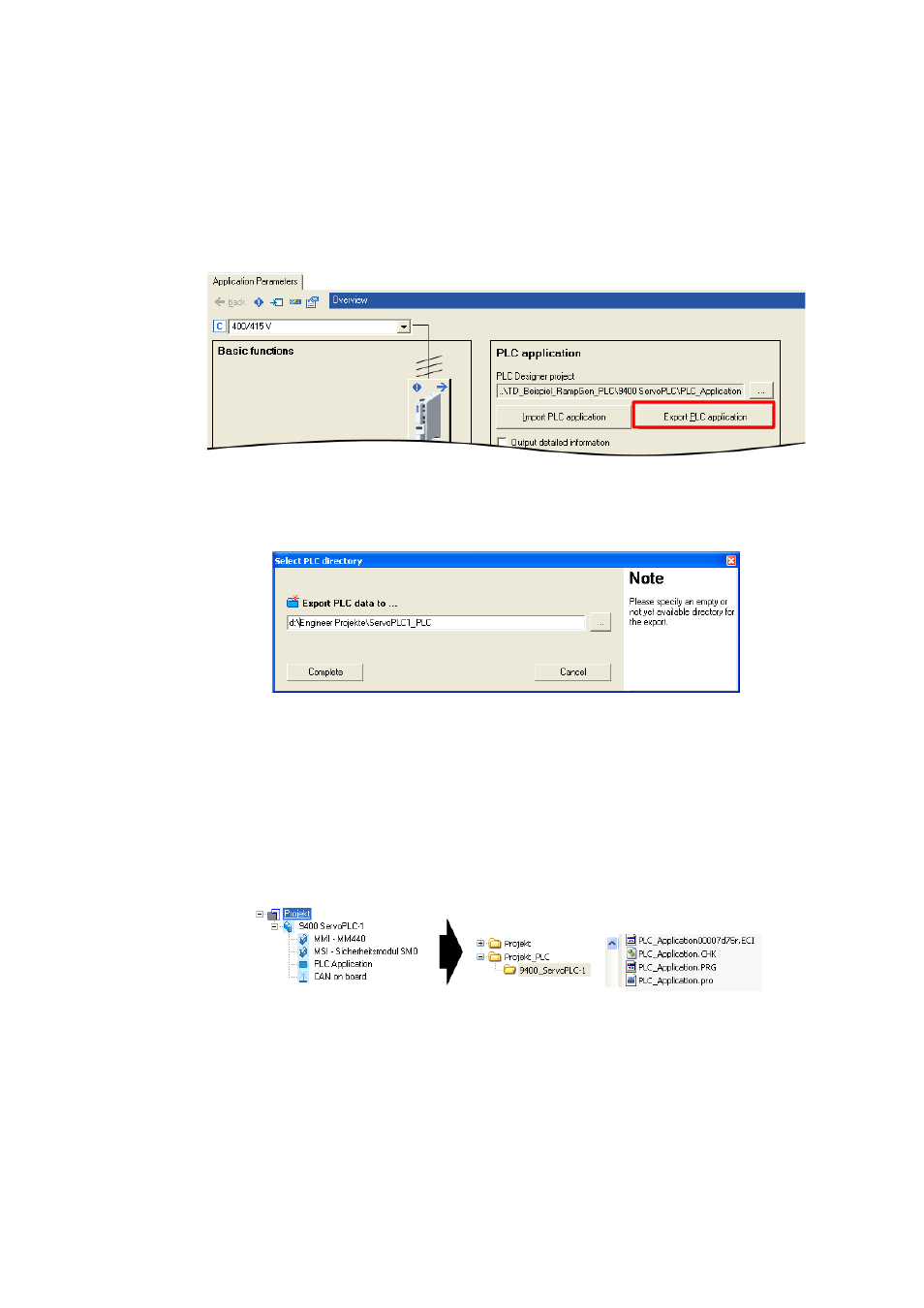

1. Click on the Export PLC application button.
• An empty or not yet available directory must be indicated for the export. For this
purpose, »Engineer« proposes a directory name which contains the ending "_PLC" in
addition to the project name:
• Contrary to the proposal of »Engineer« the directory with the project file can also be
exported into another directory.
• Neither the directory nor files may be write-protected.
2. Click the "Complete" button.
• The PLC application contained in the »Engineer« project is exported in the directory that
is named before (in the example below: "Projekt_PLC").
In this directory, a subdirectory is created for the component (»9400 ServoPLC«) of the
project which has the name of the component in the project (e.g. "9400_ServoPLC-1").
• Each of the component directories contains a file with the file type PRO, PRG, CHK and
ECI:
