12 Basic drive functions
12.13 Cam data management
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
12.13.1 "Online" tab for cam data management

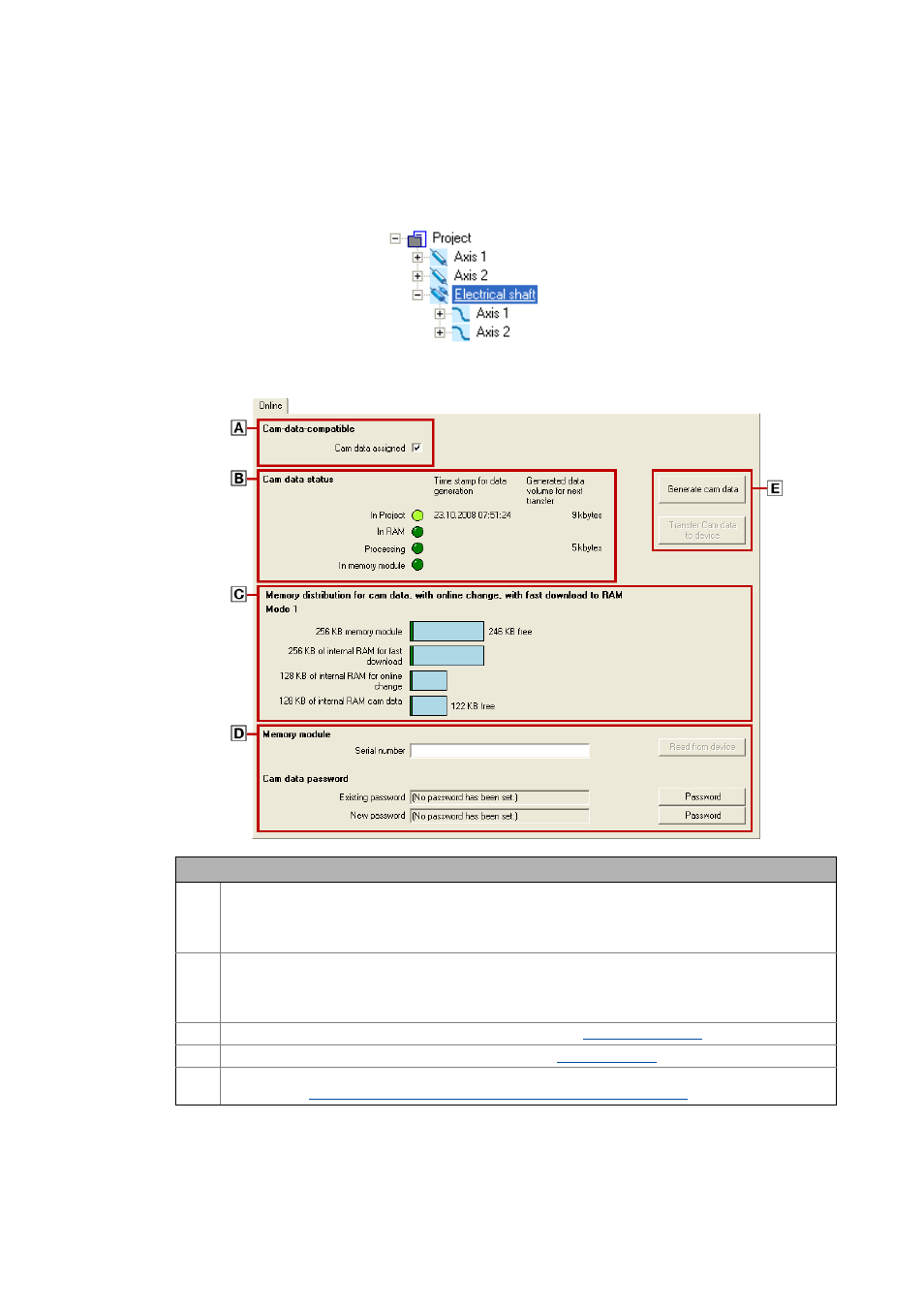

After an interconnection has been created via the electrical shaft, it is shown in the Project view with
the axes assigned:
If you select the axis representing the 9400 ServoPLC under the electrical shaft, the Online tab for
cam data management is provided in the Workspace:
Info
 Cam data-able
• This property is set automatically for the controller if the controller supports cam data (licence level
Motion Control TopLevel required).
• Note: The checkmark must not be removed, as otherwise the assignment to the cam data is lost!
 Cam data status
• The first green LED for instance is lit if the cam data file in the project is active.
• When an online connection to the controller has been established, also the status of the cam data
available in the controller is shown.
 Display of the current memory distribution for the cam data.  Memory distribution ( 586)
 Configuration of the access protection for the cam data.  Access protection ( 587)
 Possibility for quickly updating the cam data in the controller (without having to transfer the complete
application).  Regenerating the cam data file and transferring it to the controller ( 589)
