12 Basic drive functions
12.3 Quick stop
428
Lenze · 9400 Servo PLC· Reference manual · DMS 4.0 EN · 11/2013 · TD05/06
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
12.3 Quick stop
In contrast to Stop , the purpose of quick stop (QSP) is a stop in case of error. If quick stop is activated,
the drive is brought to standstill within the deceleration time set irrespective of the setpoint that is
preselected.

Tip!
Quick stop can also be set as error response for many monitoring functions ("quick stop by
trouble"). Detailed information can be found in the chapter " Diagnostics & fault analysis ".
( 630)
The source from which the quick stop was activated is shown in a bit coded manner in
C00159 .
12.3.1 Internal interfaces | "LS_Quickstop" system block"

Note!
Through this, superimposed controls (e.g. synchronous or position control) may produce
following errors. If several drives execute a coordinated motion, the quick stop function
should only be used for the motion master (master drive) in order to maintain the
coordination.
When the basic function is activated, a start acceleration is considered.
 Start
acceleration/acceleration reduction when the basic function changes ( 420)

Note!
Ensure that the system block is called in a cyclic application task.
Basically, projects which only contain an unsolicited task and no cyclic task are not
permissible!

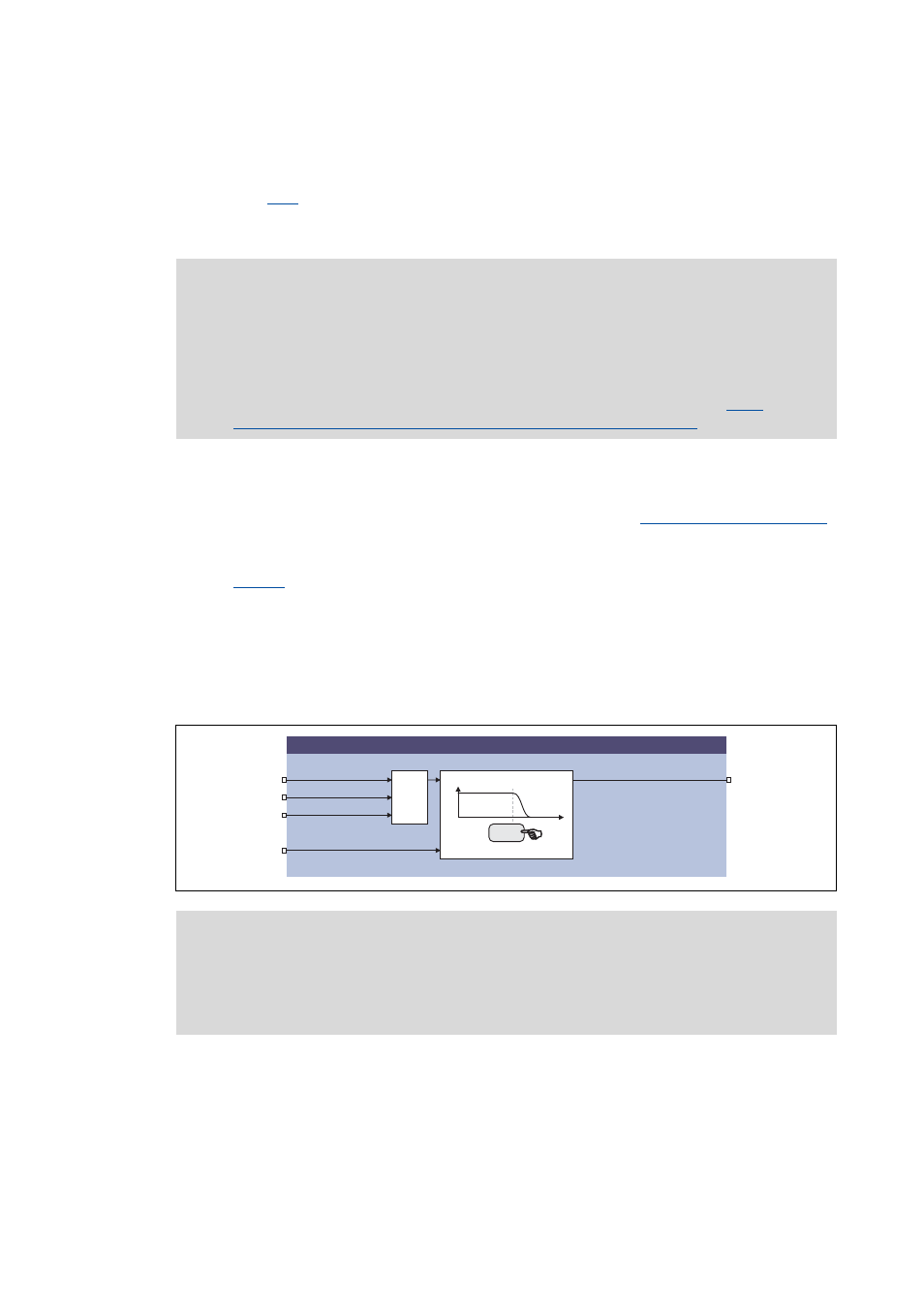

LS_Quickstop
QSP_bActivate1 QSP_bActive
STOP
n
t
³ 1
QSP_bActivate2
QSP_bActivate3
QSP_bActivateDCBrake
