569

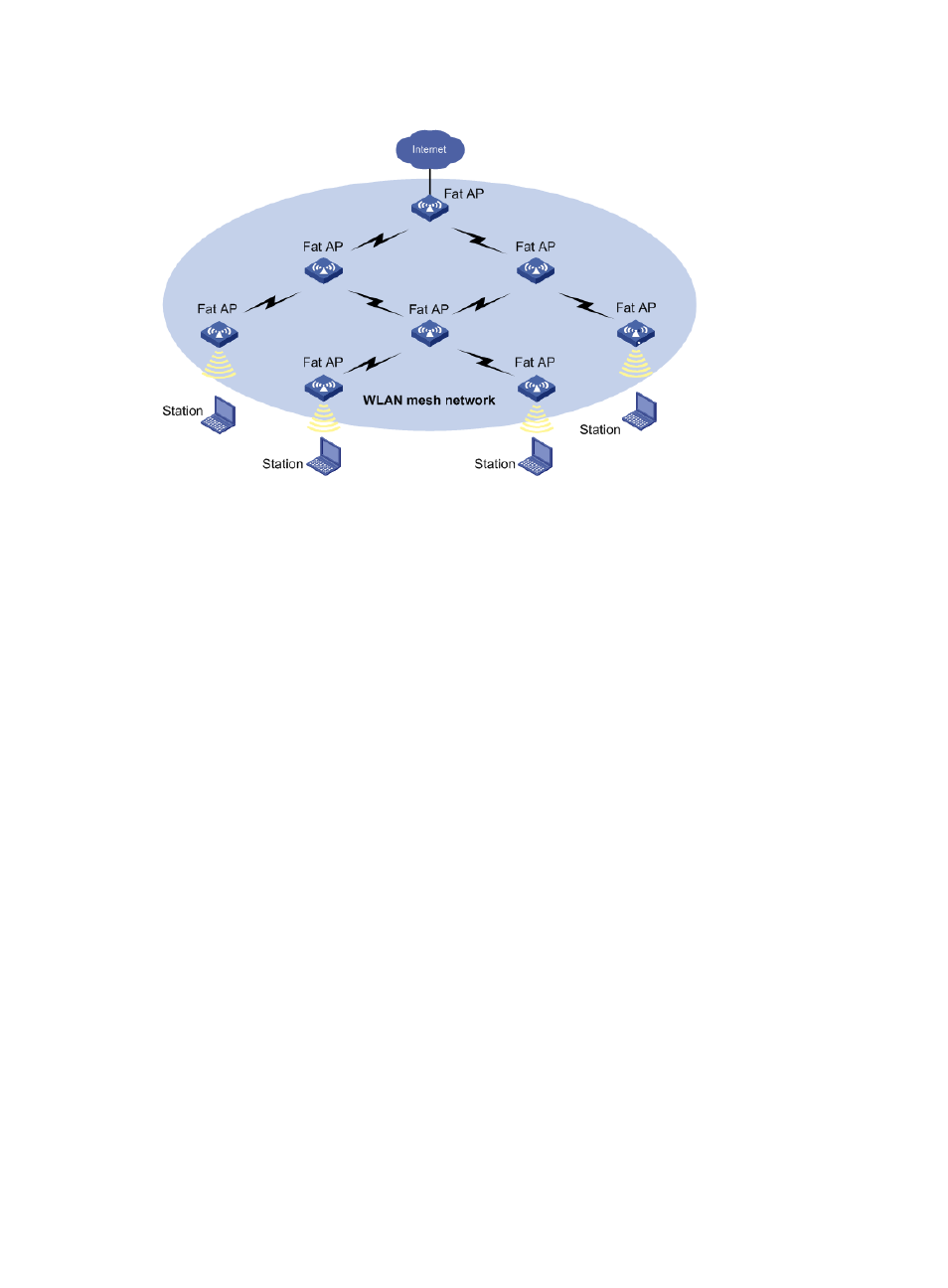

Figure 75 Typical WLAN mesh network (fat AP application)
Mesh management is used for establishing and maintaining mesh networks. Mesh management
includes the following objects:
• Mesh profile
• Mesh policy
• Mesh interface
• Peer AP MAC address
• Mesh topology
Only the Comware-based ACs and APs support mesh management.
Managing mesh profiles
A mesh profile is mapped to a mesh point (MP) so that it can provide mesh services to other MPs that
have the same mesh profile mapped. The following information describes mesh profile management
operations.
Viewing mesh profile list
1. Click the Service tab.
2. From the navigation tree, select WLAN Manager > Resource Management > ACs or WLAN
Manager > Resource Management > Fat APs.
3. Click the device label of an AC or fat AP to enter the device information page.
4. On the Mesh Management menu on the lower right corner of the page, click Mesh Profile
Management.
The Mesh Profile Management displays all mesh profiles.
Mesh Profile List contents
{
Mesh Profile ID—ID of the mesh profile.
{
Mesh ID—ID of the mesh network.
