5.5 Operation
746 VA Trace Analyzer / 747 VA Stand
5-108
Segment-VR-Curve: XXXXXXXX-XX-original
Display
subst.
Select
segment
Select
curve
Next
VR
Prev.
VR
Scale Unlinked
peaks
Spike
elimin.

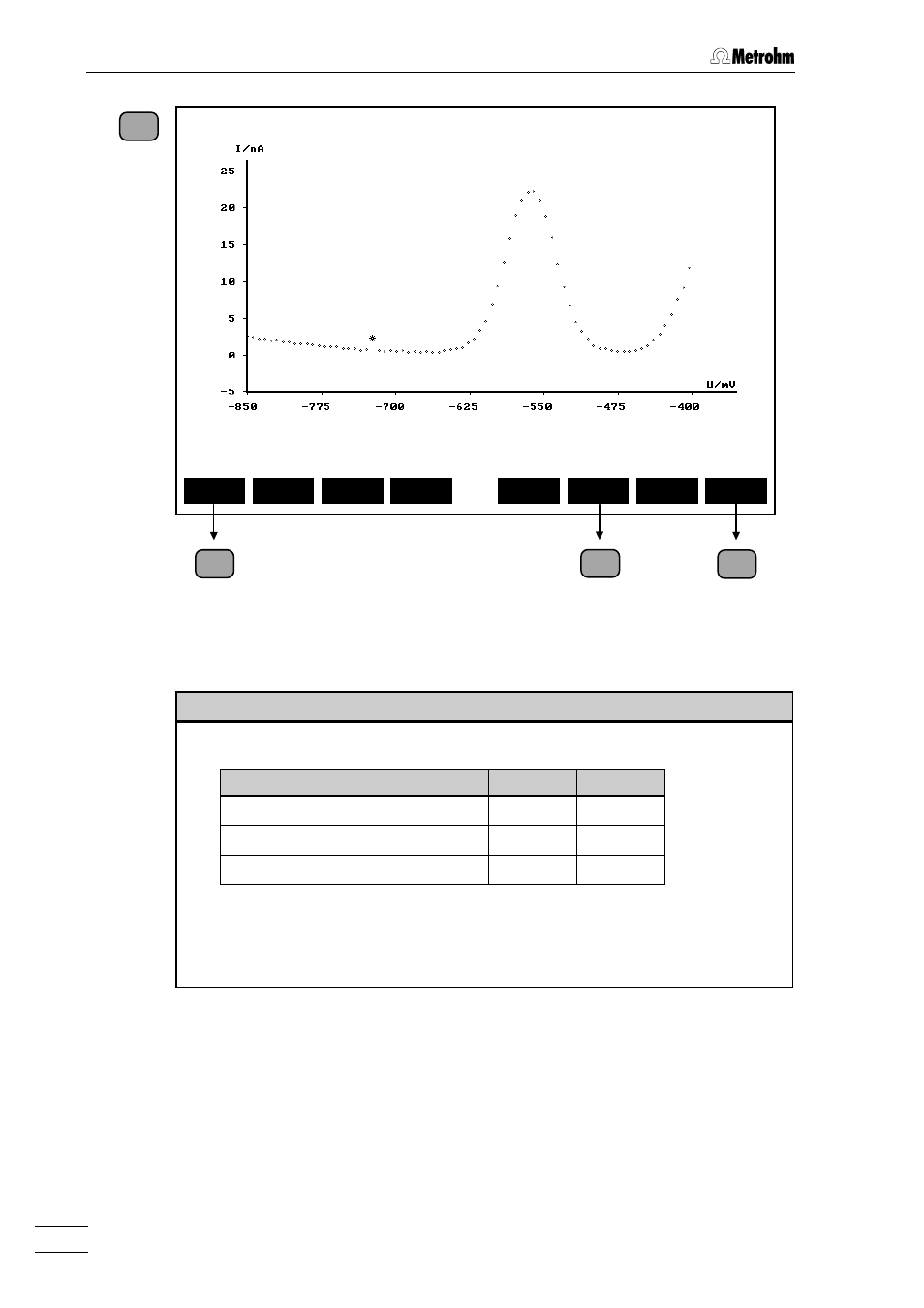

Curve display
The representation of the segment curve depends on the selected sweep:
Sweep y axis x axis
SWEEP, FSWEEP, SSWEEP I/xA U/mV
PSWEEP U/mV t/xs
TSWEEP I/xA t/xs
In what follows, a segment recorded with SWEEP will be used as a curve example. How-
ever, in most cases the listed functions of the softkeys and the meaning of the parameters
apply to not just this example but also curves with other sweeps. Any differences which
appear are listed specifically under "Softkeys" or "Parameter".
