5.5 Operation
746 VA Trace Analyzer / 747 VA Stand
5-106

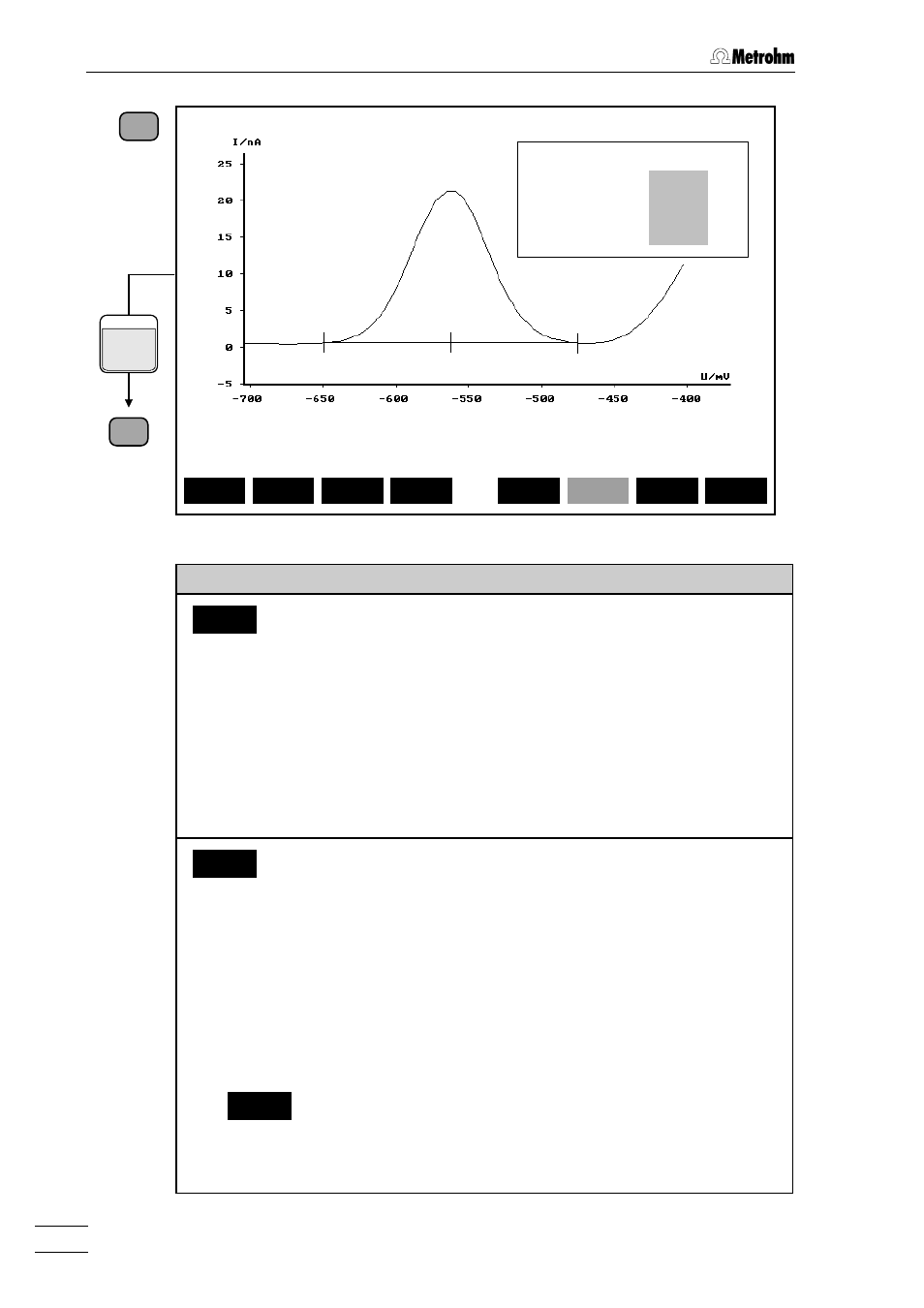

Substance-VR-Curve: XXXXXXXX-XX-smoothed
U.peak : XXXXXX mV dU.front: XXXXXX mV dU.rear: XXXXXX mV
I.peak : XXXXXX xA S.front: XXXXXX S.rear: XXXXXX
P.peak : XXXXXX xW
U.width: XXXXXX mV
Modify
column
Start
zoom
Modify
dU.front
Modify
dU.rear
New
display
Reset
param.
Save
param.
Softkeys
Meaning
Modify
column
Modify baseline parameters column-by-column
Modification of the parameters for calculation of the baseline (not
possible for curves recorded with PSAMODE). For details of the
baseline parameters, see section 5.6.3.
Modifications made here initiate a recalculation and baseline display
on closure of the entry. These changes are temporary, they are
canceled with
or after exit with
The changes are permanently incorporated in the method only if they
are stored with
before exiting. To ensure they are also
effective for the result calculation, a recalculation must be initiated on
the "MONITORING" page with
.
Start
zoom
Select zoom range
This softkey starts the selection of the zoom region (curve section
which should be enlarged).
First, the cursor keys <è>, <ç>, <é> and <ê> must be used
to define the top left corner point of the zoom region (marked by a
cross) as follows:
Each time these keys are pressed, the corner point moves in the
selected direction by 5 pixels. A finer shift of 1 pixel can be
achieved when the
both cases, the cursor keys are repetitive, i.e. the longer the cur-
sor key is pressed, the further the corner point is shifted.
Uppr/lft
corner
Once the top left corner point is in the desired position, it must be
fixed by pressing the softkey
or the
key. Next, the bottom right corner point of the zoom region is also
defined using the cursor keys. This automatically opens a frame
encompassing the region to be enlarged.
11
Baseline
––––––––––––––––––––––––
Type ........
Scope ........
dU.front ........
S.front ........
dU.rear ........
S.rear ........
8
ESC
