Analog Touch Screen Interface
EP93xx User’s Guide
2
5
2
5
25
The register values for TSDirect can be derived from the switch positions shown in Figure 25-
8 . A “1” in the register bit position indicates that the switch is made or closed. Therefore, the
TSDirect value for battery sampling should be set to 0x4000_0700, the TSDirect value for the
measuring the DAC feedback example should be set to 0x2000_0600, and the TSDirect
value for measuring a miscellaneous input example should be set to 0x0000_0601.
To use the miscellaneous measurement input, TSDIRECT should be set to 0x0000_0601 and
the input should be on Xp pin. By using this configuration, we can measure the FULL range,
from 0 to 3.3 V. Also, to use this function we need to configure 2 items in Syscon:
• Enable the Clock for the Touch Screen (KTDIV register in Syscon)
• Set the TIN bit in DeviceCfg in Syscon. This sets the Touch Screen controller to an
inactive state.

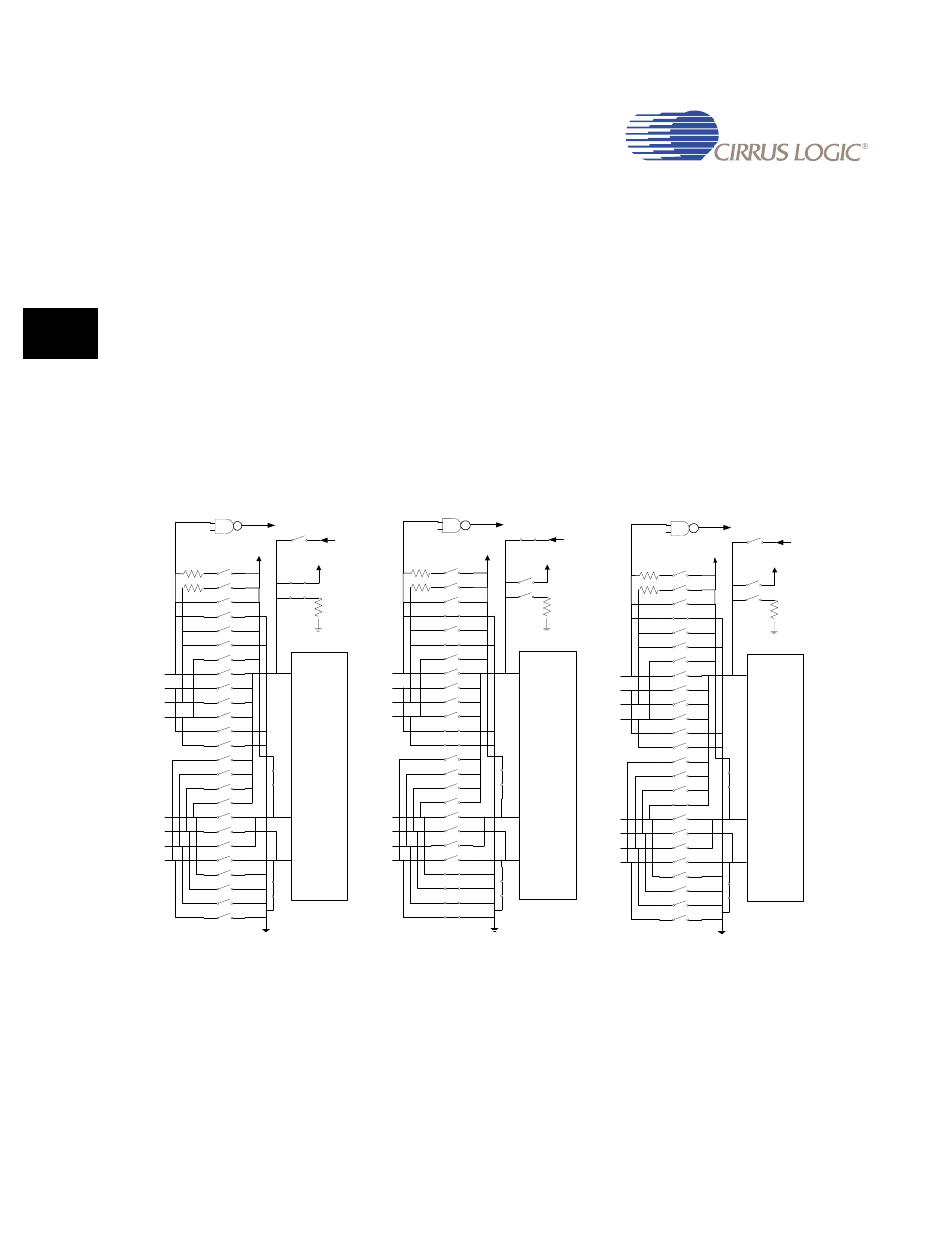

Figure 25-8. Other Switching Diagrams
