CRD1610A-8W
CRD1610A-8W
8 Watt Reference Design
Features
• Quasi-resonant Flyback with Constant-current Output
• Flicker-free Dimming
• Line Voltage 120VAC, ±10%
• Rated Input Power: 8.1W
• Rated Output Power: 6.7W
• Output Voltage: 14.0V to 15.8V
• Efficiency: 84% at 460mA for 5  LEDs in Series
• Low Component Count
• Supports Cirrus Logic Product CS1610A
General Description
The CRD1610A-8W reference design demonstrates the
performance of the CS1610A resonant mode AC/DC
dimmable LED driver IC with a 460mA output driving
5

LEDs in series. It offers best-in-class dimmer
compatibility with leading-edge, trailing-edge, center-cut,
and digital dimmers. The form factor is targeted to fit into
many LED bulb applications (A19, PAR).
DIMENSIONS (OVERALL)
Length Width Height
For more information, see Figure 3 on page 6.
ORDERING INFORMATION
CRD1610A-8W-Z 8 Watt Reference Design
Supports CS1610A
2.285  58mm   1.181 29.9mm   0.59 15mm    
SEP‘13
DS1012RD3

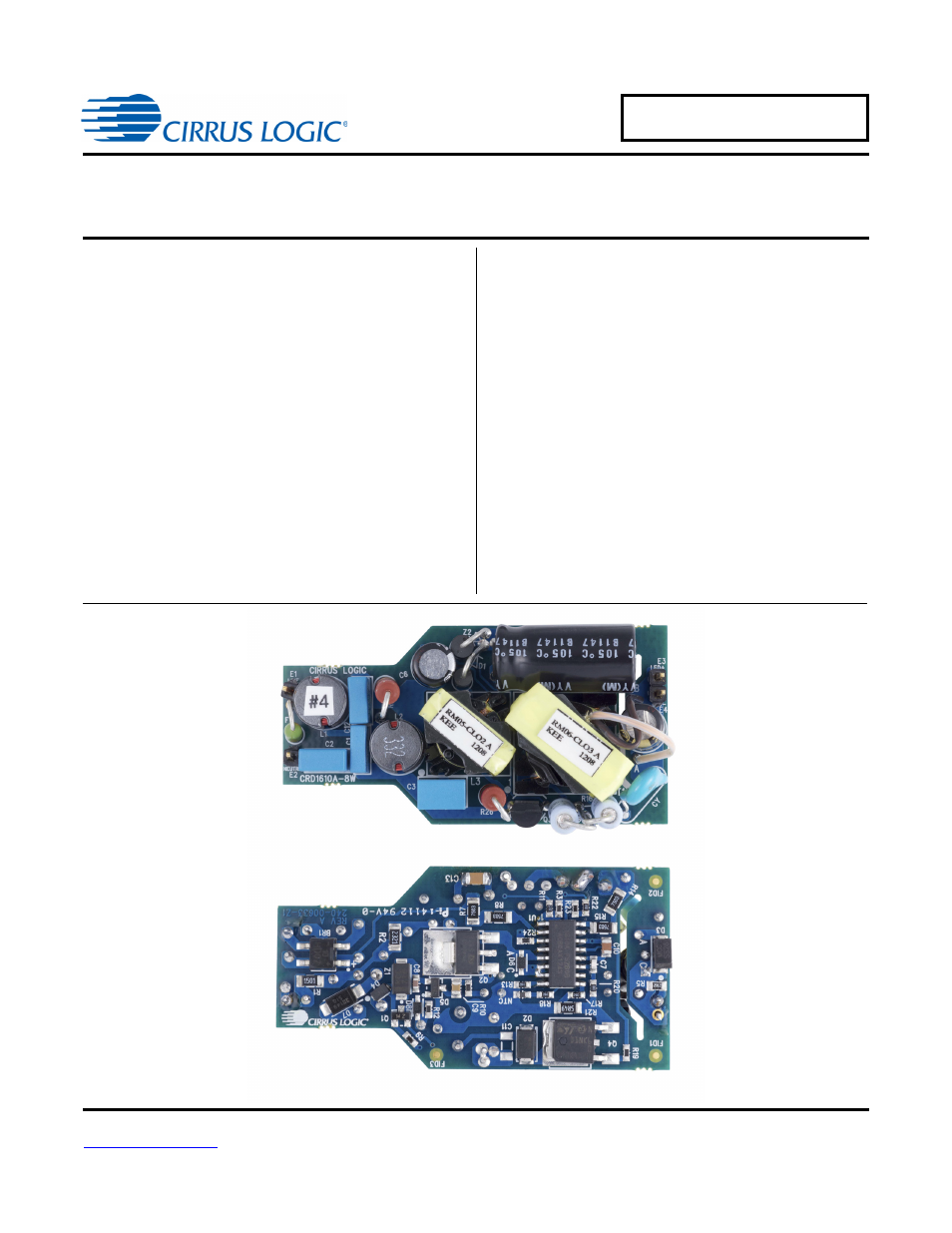

Top
Bottom
