WindO/I-NV2 User’s Manual 10-45
3 Picture Display
10
Data Displa
ys

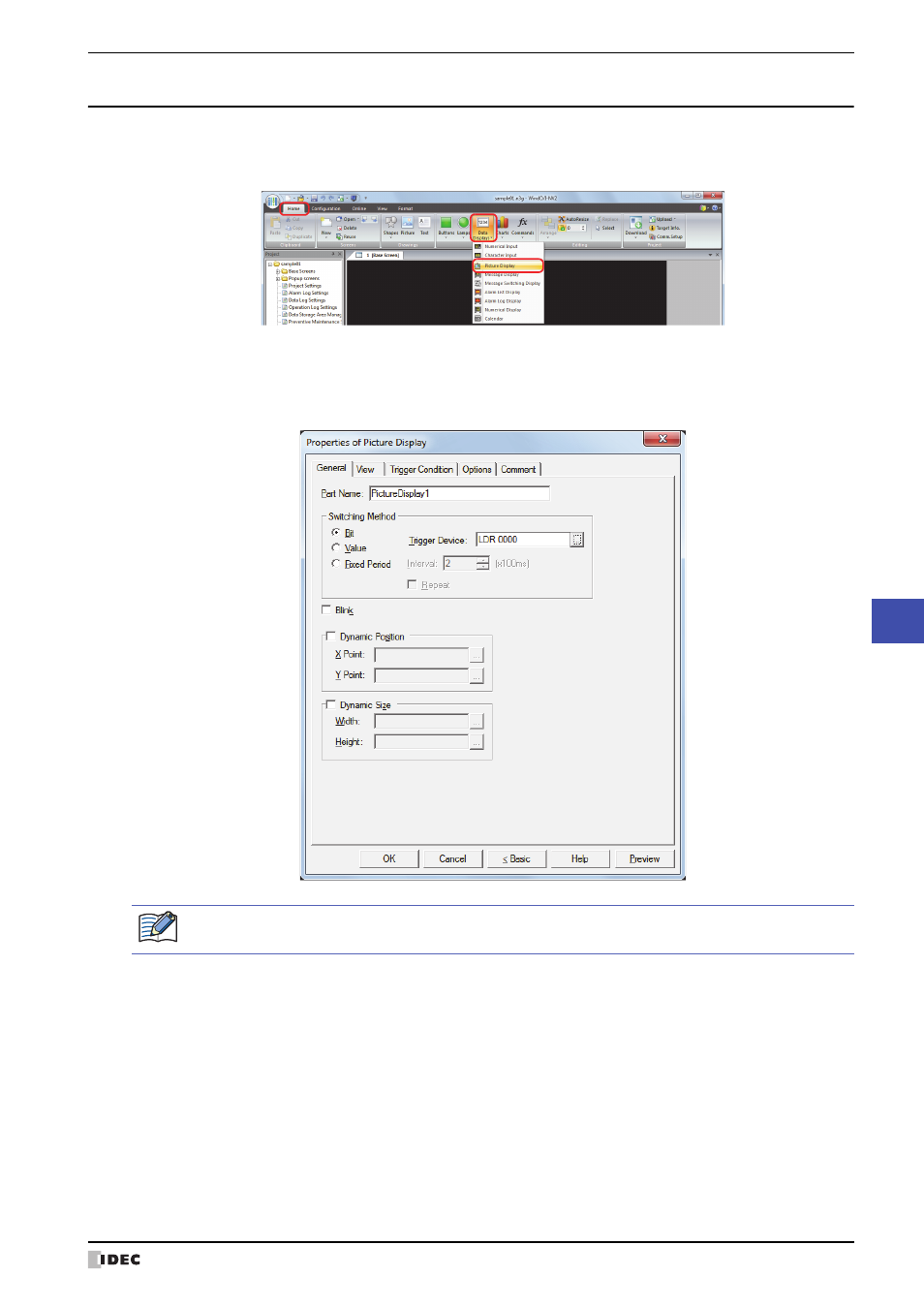

3.2 Picture Display Configuration Procedure
This section describes the configuration procedure for Picture Displays.
1 On the Home tab, in the Parts group, click Data Displays, and then click Picture Display.
2 Click a point on the edit screen where you wish to place the Picture Display.
3 Double-click the dropped Picture Display and a Properties dialog box will be displayed.
4 Change the settings on each tab as necessary.
The Trigger Condition tab and Options tab only appear in Advanced mode.
To switch to Advanced mode, click Advanced.
