4.7 Installation
●
Operating Environment
For designed performance and safety of the HG2F, do not install the HG2F in the following environments:
• Where dust, briny air, or iron particles exist.
• Where oil or chemical splashes for a long time.
• Where oil mist is filled.
• Where direct sunlight falls on the HG2F.
• Where strong ultraviolet rays fall on the HG2F.
• Where corrosive or combustible gasses exist.
• Where the HG2F is subjected to shocks or vibrations.
• Where condensation occurs due to rapid temperature change.
• Where high-voltage or arc-generating equipment (electromagnetic contactors or circuit protectors) exists in the
vicinity.
●
Ambient Temperature
• Allow sufficient space for ventilation, and install the equipment away from heat sources.
• Allow at least 100mm between the HG2F and walls or other equipment.
• Do not install the HG2F where the ambient temperature exceeds the rated operating ambient temperature range.
When mounting the HG2F in such locations, provide a forced air-cooling fan or air-conditioner to keep the ambient
temperature within the rated temperature range.
• The HG2F is designed to install on a vertical plane so that natural air-cooling is provided. If you install it using any
other orientation, use forced-air cooling, or lower the ambient operating temperature.
●
HG2F Installation

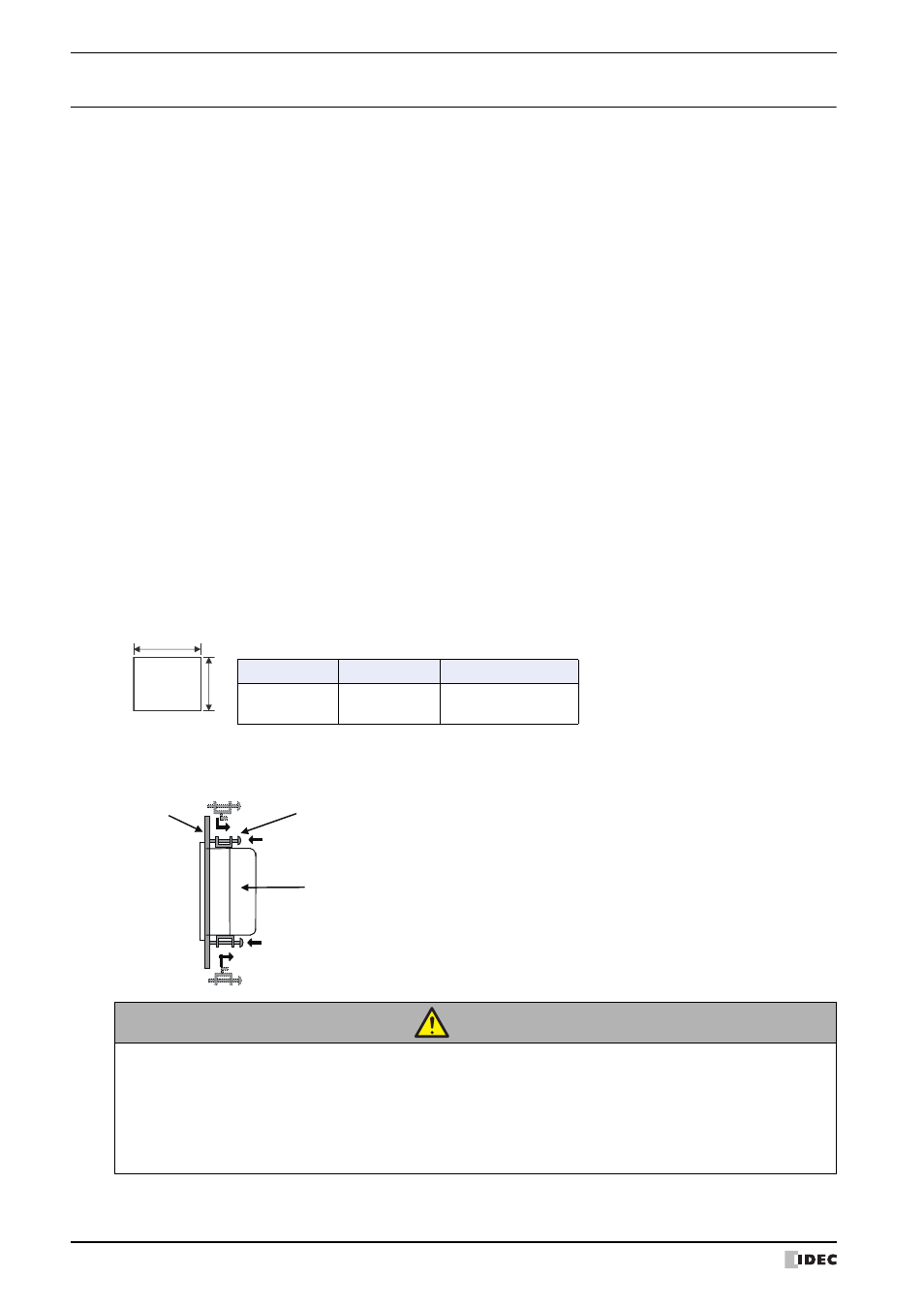

• Make a panel cut-out on the panel with the dimensions shown below.
• Place the HG2F in a panel cut-out and fasten with the attached mounting clips at four places to a torque of 0.15 to
0.2 N•m uniformly.
CAUTION
• Do not tighten excessively, otherwise the HG2F may warp and cause wrinkle on the display, or
impair the waterproof characteristics.
• If the mounting clips are tightened obliquely to the panel, the HG2F may fall off the panel.
• When installing the HG2F into a panel cut-out, make sure that the gasket is not twisted. Especially
when re-installing, take special care because any twists in the gasket will impair the waterproof
characteristics.
B
A
Unit: mm
A B Panel Cut-out
126.5
+0.5
0
162.5
+0.5
0
1.6 to 5.0
Panel
Mounting
Clip
HG2F
