WindO/I-NV2 User’s Manual 10-33
2 Character Input
10
Data Displa
ys
●

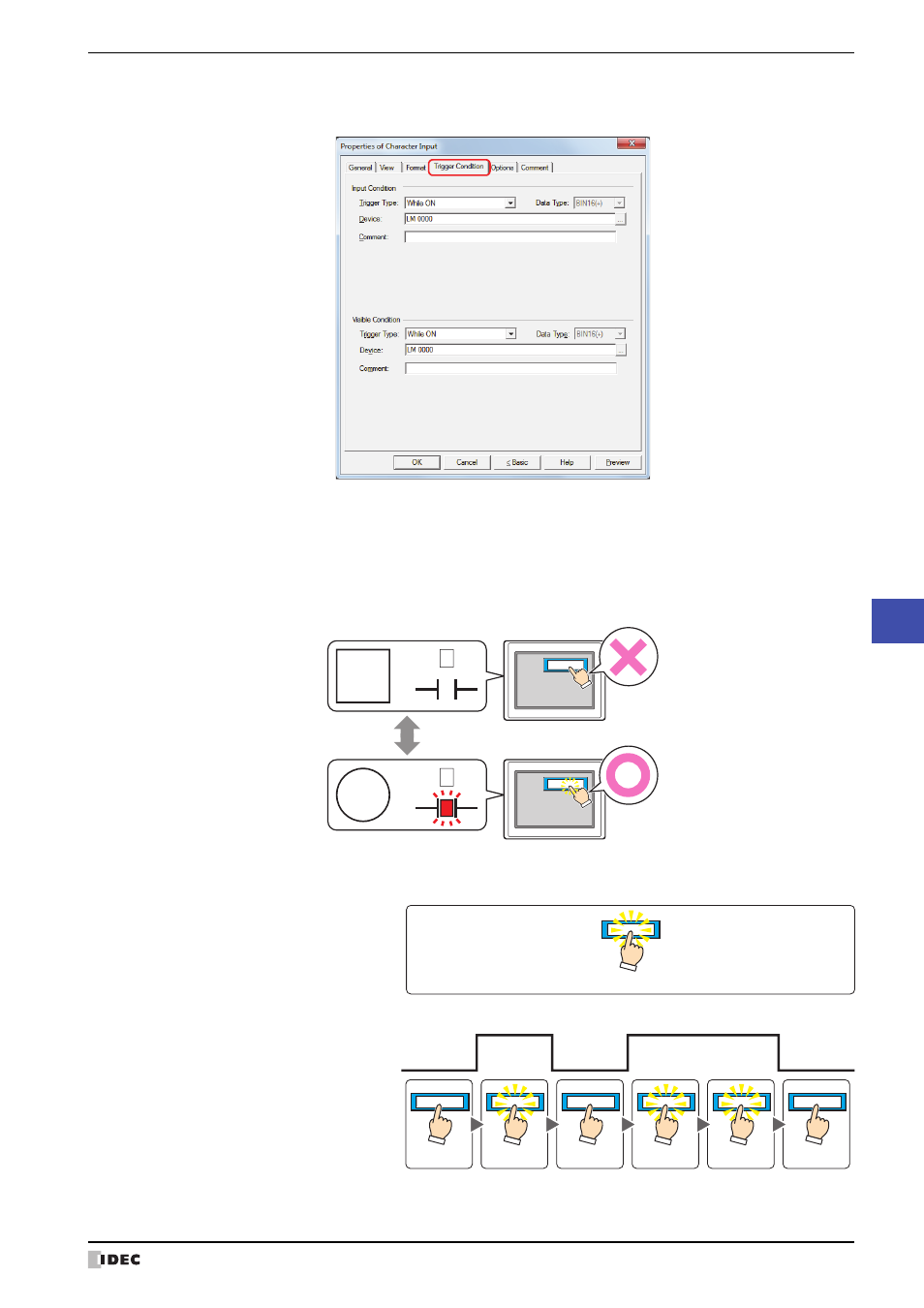

Trigger Condition Tab
The Trigger Condition tab is displayed in Advanced mode.
■ Input Condition
The Character Input is enabled and operational while the condition is satisfied. The Character Input is disabled and
not operational while the condition is not satisfied.
Example: When Trigger Type is While ON and Device is LM 0
While LM 0 is 0, the condition is not satisfied and the Character Input is not operational.
While LM 0 is 1, the condition is satisfied and the Character Input is operational.
Trigger Type: Selects the condition to enable the Character Input from the following.
Always enable: The Character Input is always enabled.
While ON: Enables the Character Input when the value of device is 1.
LM0:
MICRO/I
0
LM0: 1 Operational
Condition
Satisfied
Condition
Not
satisfied
IDEC
IDEC
Not
operational
Always enabled
Character Input
state
IDEC
1
0
Disabled Enabled Disabled Disabled Enabled Enabled
Value of Device
Character Input
state
IDEC IDEC IDEC IDEC IDEC IDEC
