1 Pilot Lamps
9-10 WindO/I-NV2 User’s Manual

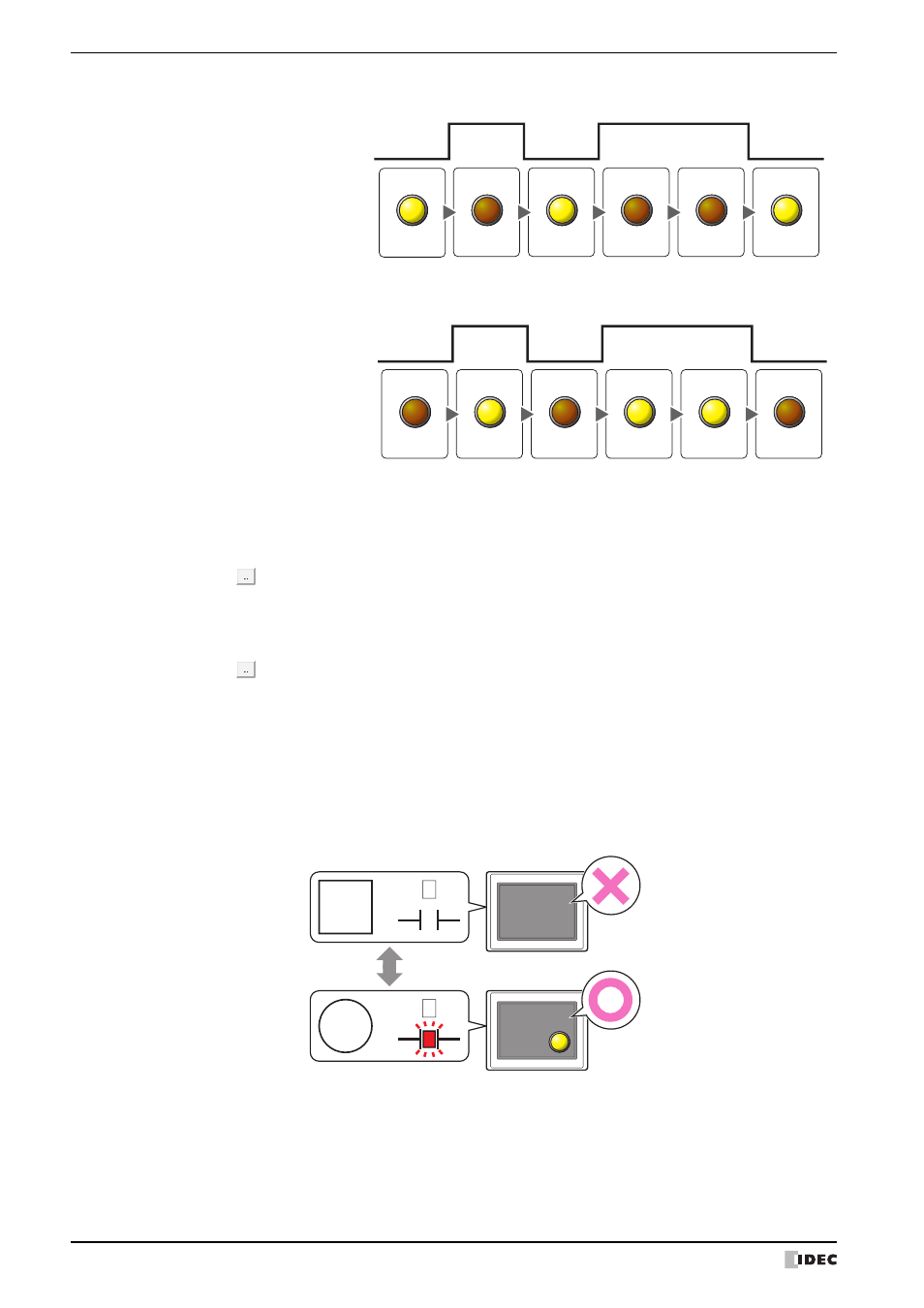

■ Visible Condition *1
The Pilot Lamp is displayed while the condition is satisfied. The Pilot Lamp is hidden while the condition is not
satisfied.
Example: When Trigger Type is While ON and Device is LM 0
While LM 0 is 0, the condition is not satisfied and the Pilot Lamp is hidden.
While LM 0 is 1, the condition is satisfied and the Pilot Lamp is displayed.
*1 HG2G-5F, HG3G/4G only
While OFF: Turns on the Pilot Lamp when the device value is 0.
While satisfying the condition:
Turns on the Pilot Lamp when the condition is satisfied.
Data Type: Selects the type of data handled by the conditional expression for the on condition.
This option can only be configured if While satisfying the condition is selected for Trigger Type.
For details, refer to Chapter 2 “1.2 Available Data” on page 2-2.
Device: Specifies the bit device or bit of the word device to serve as the on condition.
This option can only be configured when While ON or While OFF is selected for Trigger Type.
Click
to display the Device Address Settings dialog box. For the device address configuration
procedure, refer to Chapter 2 “5.1 Device Address Settings” on page 2-67.
Condition: Specifies the conditional expression for the on condition.
This option can only be configured when While satisfying the condition is selected for Trigger
Type.
Click
to display the Trigger Condition Settings dialog box. For the conditional expression
configuration procedure, refer to Chapter 2 “5.2 Setting Conditional Expressions” on page 2-69.
Comment: Used for entering a comment for the on condition. The maximum number is 80 characters.
1
0
On On On Off Off Off
Pilot Lamp status
Device value
On Off Off Off On On
Pilot Lamp status
Condition
Satisfied
Not satisfied
LM0:
MICRO/I
0
LM0: 1
Show
Condition
Not
satisfied
Condition
Satisfied
Hide
