WindO/I-NV2 User’s Manual 7-29
3 Text
7
Dr
awings
■ Coordinates
■ Use Text Area
Select this check box to specify a text area and adjust the display position of the text with the specified text area.

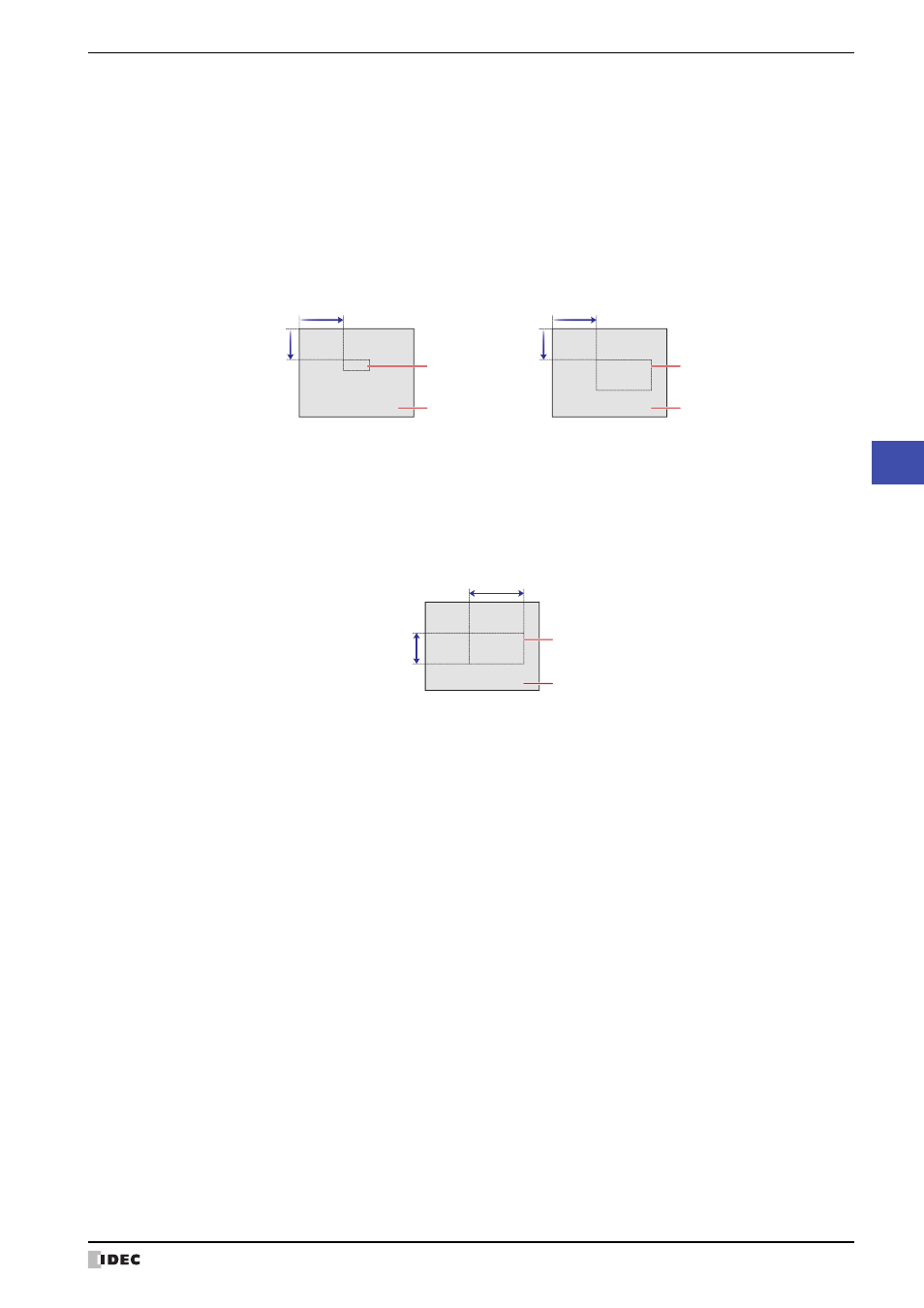

X, Y: Specifies the display position of the text or the text area in coordinates.
With the upper-left corner of the screen as the origin, the upper-left corner of the rectangle that
circumscribes the text or the upper-left corner of the text area is the X and Y coordinates.
When the Use Text Area check box is cleared, the coordinates are for the text. When the Use Text
Area check box is selected, the coordinates are for the text area.
X: 0 to (base screen horizontal size - 1)
Y: 0 to (base screen vertical size - 1)
IDEC IDEC
(0, 0)
X
Y
(0, 0)
X
Y
Screen
Text
Screen
Text area
When Use Text Area is cleared When Use Text Area is selected
W, H: Specifies the size of the text area in width and height.
W: 1 to (base screen horizontal size)
H: 1 to (base screen vertical size)
IDEC
Width
Height
Screen
Text area
