Configuring PIMv6 for IPv6
– 737 –
P ARAMETERS
These parameters are displayed:
◆ BSR Candidate Status – Configures the switch as a Bootstrap Router
(BSR) candidate. (Default: Disabled)
◆ VLAN ID – Identifier of configured VLAN interface. (Range: 1-4093)
◆ Hash Mask Length – Hash mask length (in bits) used for RP selection
(see "Configuring a PIM6 Static Rendezvous Point" on page 738 and
"Configuring a PIM6 RP Candidate" on page 739 ). The portion of the
hash specified by the mask length is ANDed with the group address.
Therefore, when the hash function is executed on any BSR, all groups
with the same seed hash will be mapped to the same RP. If the mask
length is less than 32, then only the first portion of the hash is used,
and a single RP will be defined for multiple groups. (Range: 0-32;
Default: 10)
◆ Priority – Priority used by the candidate bootstrap router in the
election process. The BSR candidate with the largest priority is
preferred. If the priority values are the same, the candidate with the
larger IP address is elected to be the BSR. Setting the priority to zero
means that this router is not eligible to server as the BSR. At least one
router in the PIM6-SM domain must be set to a value greater than zero.
(Range: 0-255; Default: 0)
W EB I NTERFACE
To configure the switch as a BSR candidate:
1. Click Routing Protocol, PIM6, PIM6-SM.
2. Select BSR Candidate from the Step list.
3. Specify the VLAN interface for which this router is bidding to become
the BSR, the hash mask length that will subsequently be used for RP
selection if this router is selected as the BSR, and the priority for BSR
selection.
4. Click Apply.

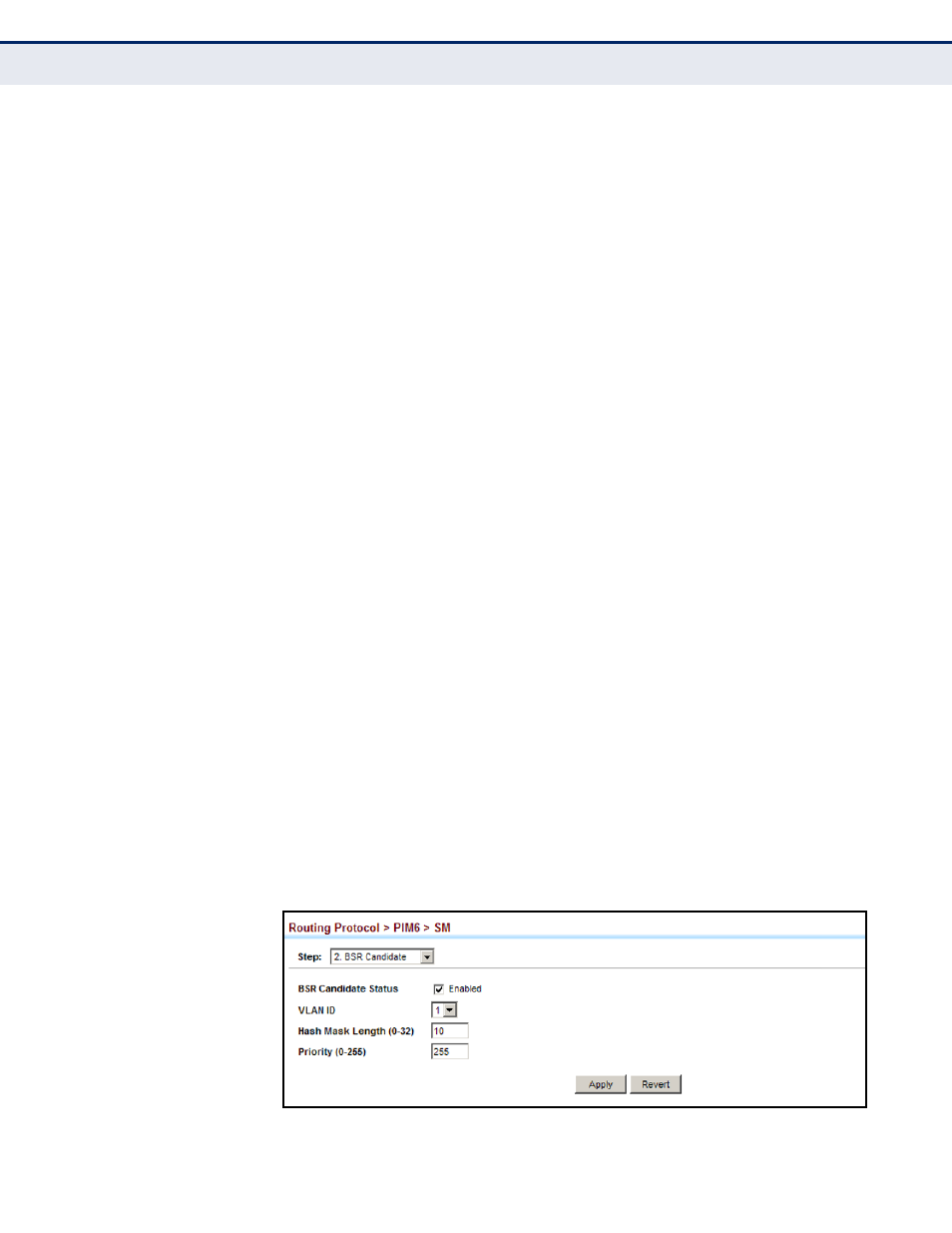

Figure 475: Configuring a PIM6-SM BSR Candidate
