Configuring the PPPoE Intermediate Agent
– 618 –
■
The switch intercepts PPPoE discovery frames from the client and
inserts a unique line identifier using the PPPoE Vendor-Specific tag
(0x0105) to PPPoE Active Discovery Initiation (PADI) and Request
(PADR) packets. The switch then forwards these packets to the
PPPoE server. The tag contains the Line-ID of the customer line over
which the discovery packet was received, entering the switch (or
access node) where the intermediate agent resides.
■
Outgoing PAD Offer (PADO) and Session-confirmation (PADS)
packets sent from the PPPoE Server include the Circuit-ID tag
inserted by the switch, and should be stripped out of PADO and
PADS packets which are to be passed directly to end-node clients.
◆
Operational Circuit ID – The configured circuit identifier.
◆
Remote ID – String identifying the remote identifier (or interface) on
this switch to which the user is connected. (Range: 1-63 ASCII
characters; Default: Port MAC address)
◆
Operational Remote ID – The configured circuit identifier.
W
EB
I
NTERFACE
To configure interface settings for PPPoE IA:
1.
Click IP Service, PPPoE Intermediate Agent.
2.
Select Configure Interface from the Step list.
3.
Select Port or Trunk interface type.
4.
Enable PPPoE IA on an interface, set trust status, enable vendor tag
stripping if required, and set the circuit ID and remote ID.
5.
Click Apply.

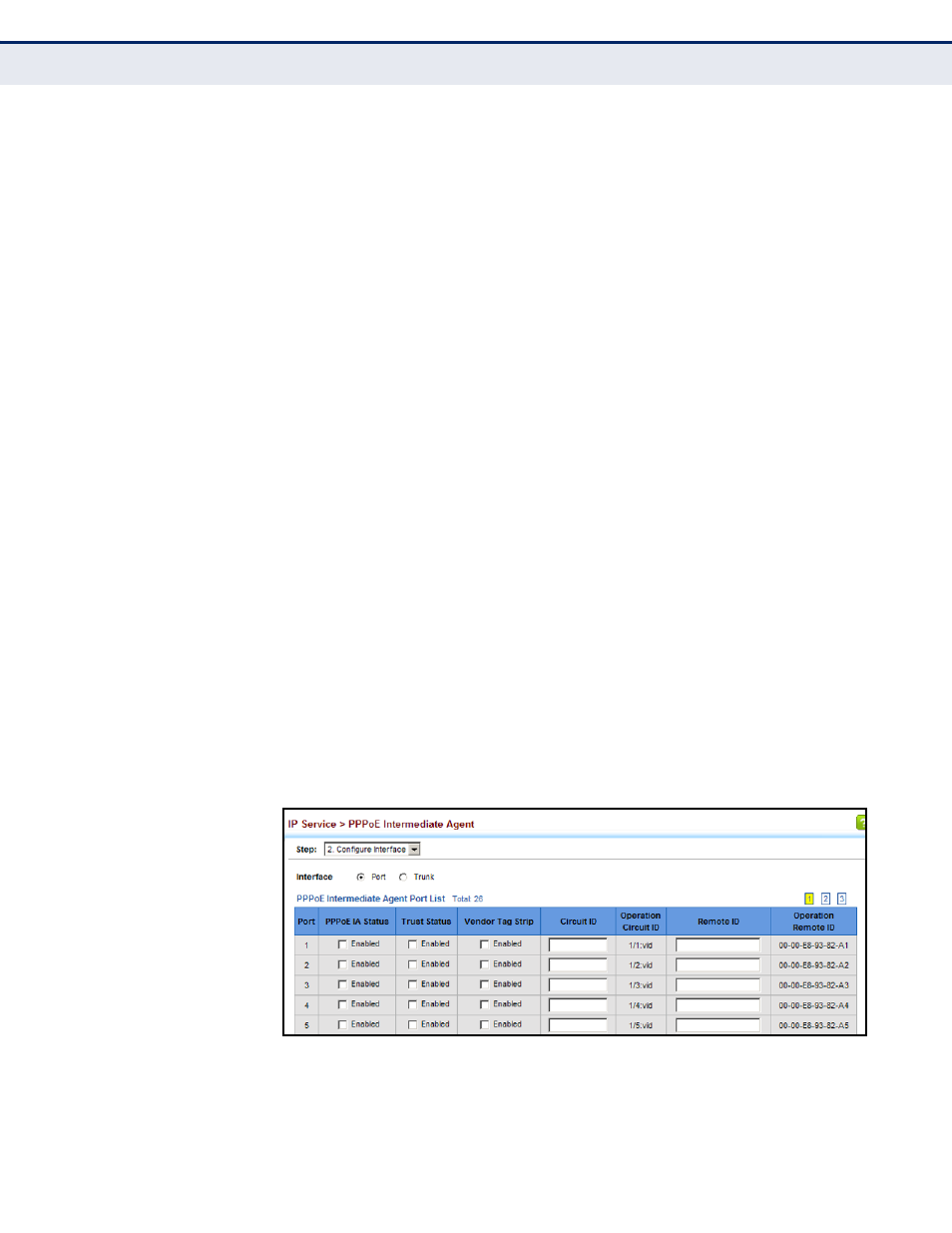

Figure 377: Configuring Interface Settings for PPPoE Intermediate Agent
