C HAPTER 15 | Multicast Filtering
Multicast VLAN Registration
– 566 –
4. Select an MVR domain.
5. Select the port or trunk for which to display this information.

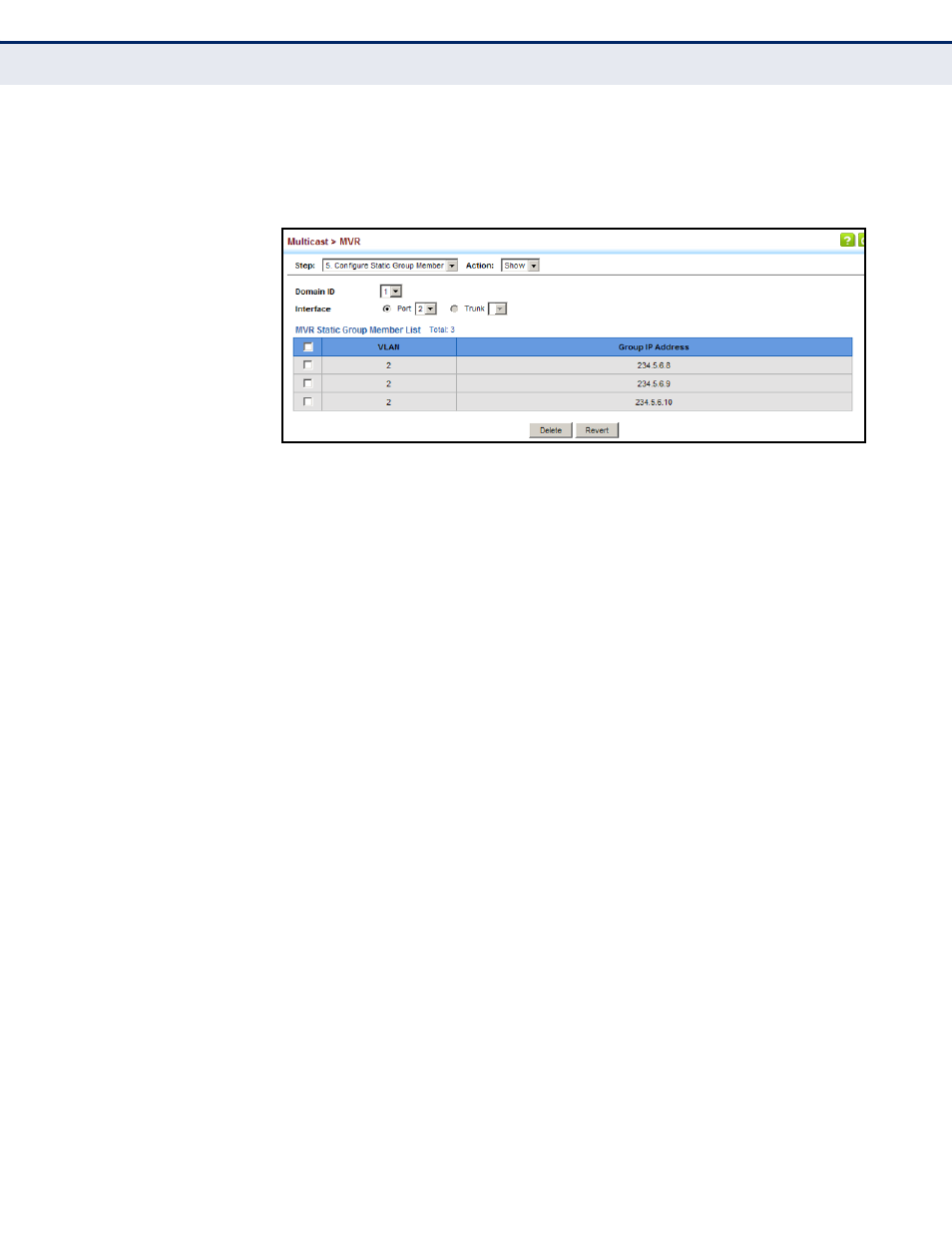

Figure 334: Showing the Static MVR Groups Assigned to a Port
D ISPLAYING MVR
R ECEIVER G ROUPS
Use the Multicast > MVR (Show Member) page to show the multicast
groups either statically or dynamically assigned to the MVR receiver groups
on each interface.
CLI R EFERENCES
◆ "show mvr members" on page 1240
P ARAMETERS
These parameters are displayed:
◆ Domain ID – An independent multicast domain. (Range: 1-5)
◆ Group IP Address – Multicast groups assigned to the MVR VLAN.
◆ VLAN – The VLAN through which the service is received. Note that this
may be different from the MVR VLAN if the group address has been
statically assigned.
◆ Port – Shows the interfaces with subscribers for multicast services
provided through the MVR VLAN.
◆ Up Time – Time this service has been forwarded to attached clients.
◆ Expire – Time before this entry expires if no membership report is
received from currently active or new clients.
◆ Count – The number of multicast services currently being forwarded
from the MVR VLAN.
