To modify the configuration settings for VLAN groups:
1.
Click VLAN, Static.
2.
Select Modify from the Action list.
3.
Select the identifier of a configured VLAN.
4.
Modify the VLAN name, operational status, or Layer 3 Interface status
as required.
5.
Click Apply.

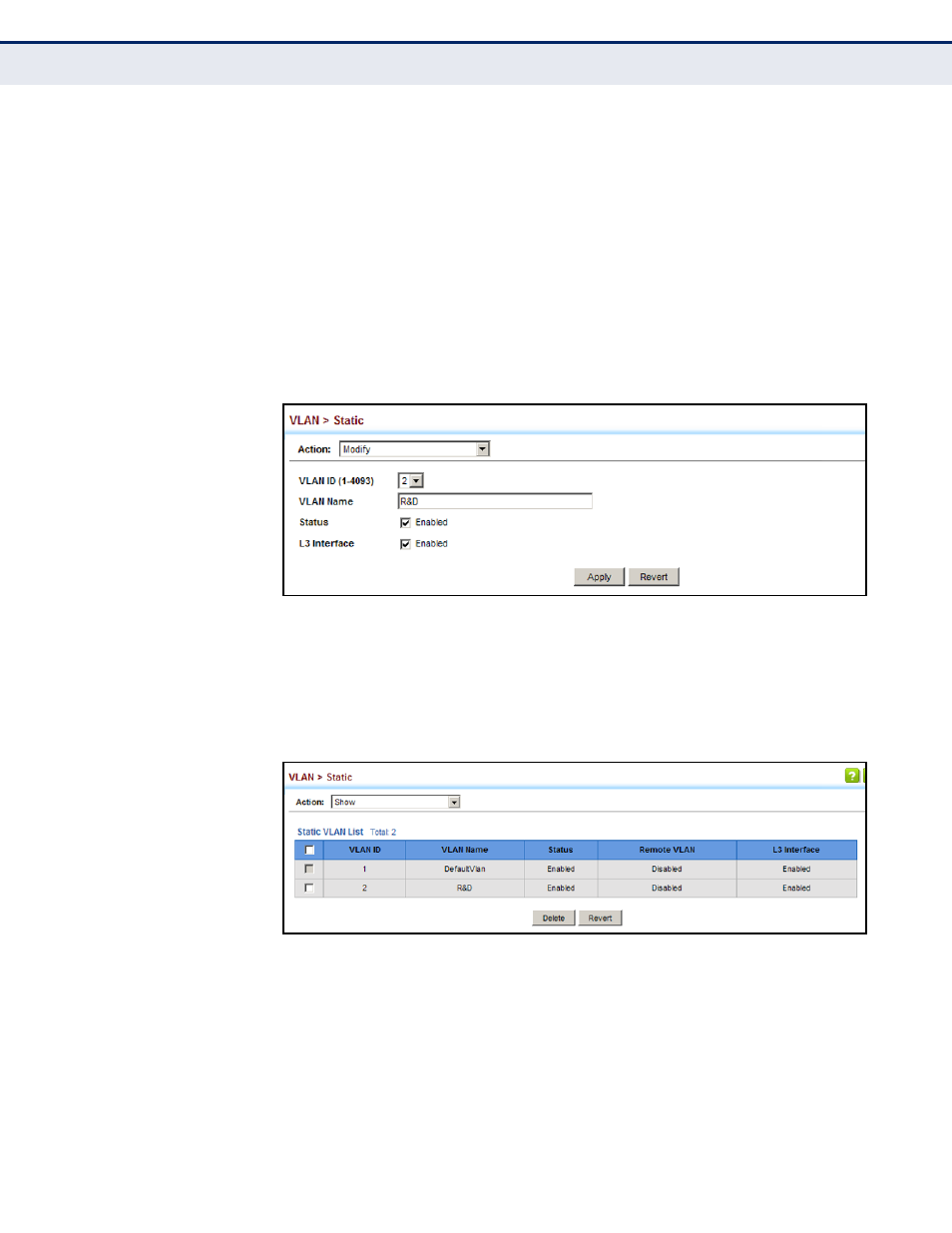

Figure 64: Modifying Settings for Static VLANs
To show the configuration settings for VLAN groups:
1.
Click VLAN, Static.
2.
Select Show from the Action list.
Figure 65: Showing Static VLANs
A
DDING
S
TATIC
M
EMBERS
TO
VLAN
S
Use the VLAN > Static (Edit Member by VLAN, or Edit Member by
Interface) pages to configure port members for the selected VLAN index or
interface. Use the menus for editing port members to configure the VLAN
behavior for specific interfaces, including the mode of operation (Hybrid or
1Q Trunk), the default VLAN identifier (PVID), accepted frame types, and
ingress filtering. Assign ports as tagged if they are connected to 802.1Q
VLAN compliant devices, or untagged they are not connected to any VLAN-
