C HAPTER 6 | VLAN Configuration
IEEE 802.1Q Tunneling
– 221 –
P ARAMETERS
These parameters are displayed:
◆ Port – Port identifier. (Range: 1-26)
◆ Customer VLAN ID – VLAN ID for the inner VLAN tag.
(Range: 1-4094)
◆ Service VLAN ID – VLAN ID for the outer VLAN tag. (Range: 1-4093)
W EB I NTERFACE
To configure a mapping entry:
1.
Click VLAN, Tunnel.
2. Select Configure Service from the Step list.
3.
Select Add from the Action list.
4.
Select an interface from the Port list.
5.
Specify the CVID to SVID mapping for packets exiting the specified
port.
6. Click Apply.

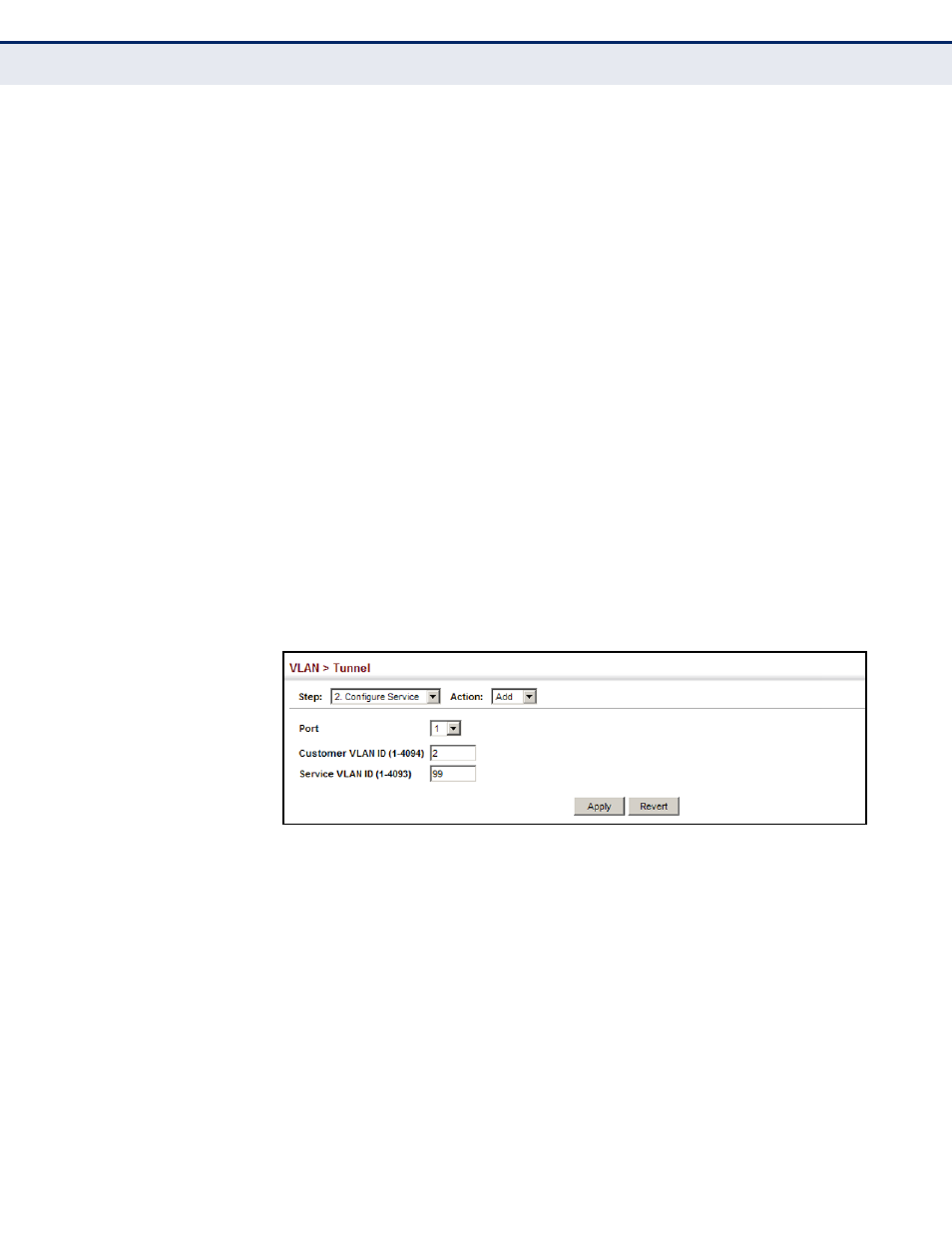

Figure 80: Configuring CVLAN to SPVLAN Mapping Entries
To show the mapping table:
1. Click VLAN, Tunnel.
2. Select Configure Service from the Step list.
3. Select Show from the Action list.
4. Select an interface from the Port list.
