Configuring the Open Shortest Path First Protocol (Version 2)
– 678 –
A
DDING
AN
NSSA
OR
S
TUB
Use the Routing Protocol > OSPF > Area (Configure Area – Add Area) page
to add a not-so-stubby area (NSSA) or a stubby area (Stub).
CLI R
EFERENCES
◆
◆
◆
C
OMMAND
U
SAGE
◆
This router supports up to 5 stubs or NSSAs.
P
ARAMETERS
These parameters are displayed:
◆
Process ID – Protocol identifier as configured on the Routing
Protocol > OSPF > Network Area (Add) page. (Range: 1-65535)
◆
Area ID – Identifier for a not-so-stubby area (NSSA) or stub. The area
ID can be in the form of an IPv4 address, or as a four octet unsigned
integer ranging from 0-4294967295.
Set the area ID to the same value for all routers on a network segment
using the network mask to add one or more interfaces to an area.
◆
Area Type – Specifies an NSSA or stub.
W
EB
I
NTERFACE
To add an NSSA or stub to the OSPF administrative domain:
1.
Click Routing Protocol, OSPF, Area.
2.
Select Configure Area from the Step list.
3.
Select Add Area from the Action list.
4.
Select a Process ID, enter the area identifier, and set the area type to
NSSA or Stub.
5.
Click Apply

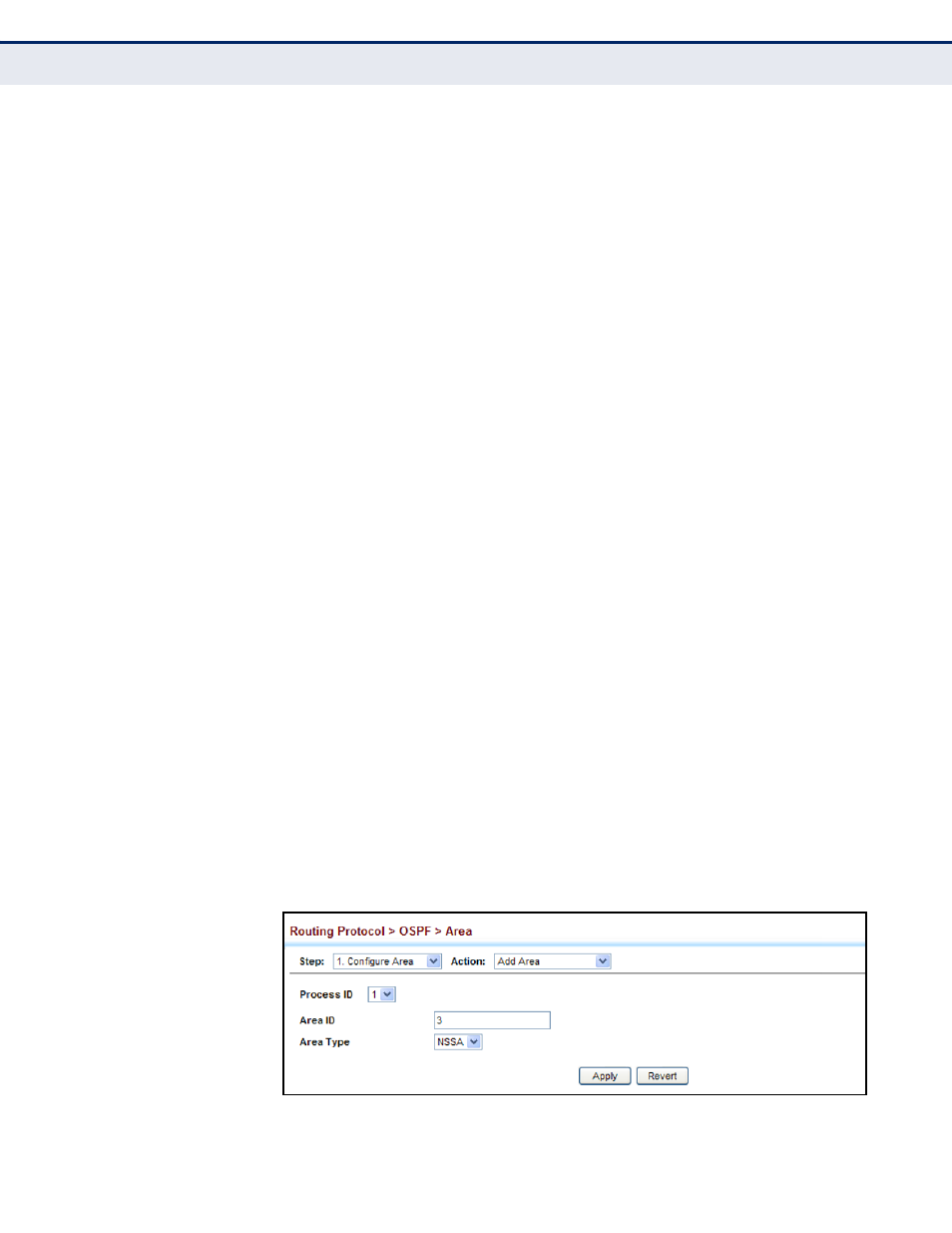

Figure 429: Adding an NSSA or Stub
