IEEE 802.1Q VLANs
– 205 –
◆ Trunk Range – Displays a list of ports. (Range: 1-32)
N OTE :
The PVID, acceptable frame type, and ingress filtering parameters
for each interface within the specified range must be configured on either
the Modify VLAN and Member Ports or Edit Member by Interface page.
W EB I NTERFACE
To configure static members by the VLAN index:
1. Click VLAN, Static.
2. Select Edit Member by VLAN from the Action list.
3. Select a VLAN from the scroll-down list.
4. Set the Interface type to display as Port or Trunk.
5. Modify the settings for any interface as required. Remember that
Membership Type cannot be changed until an interface has been added
to another VLAN and the PVID changed to anything other than 1.
6.
Click Apply.

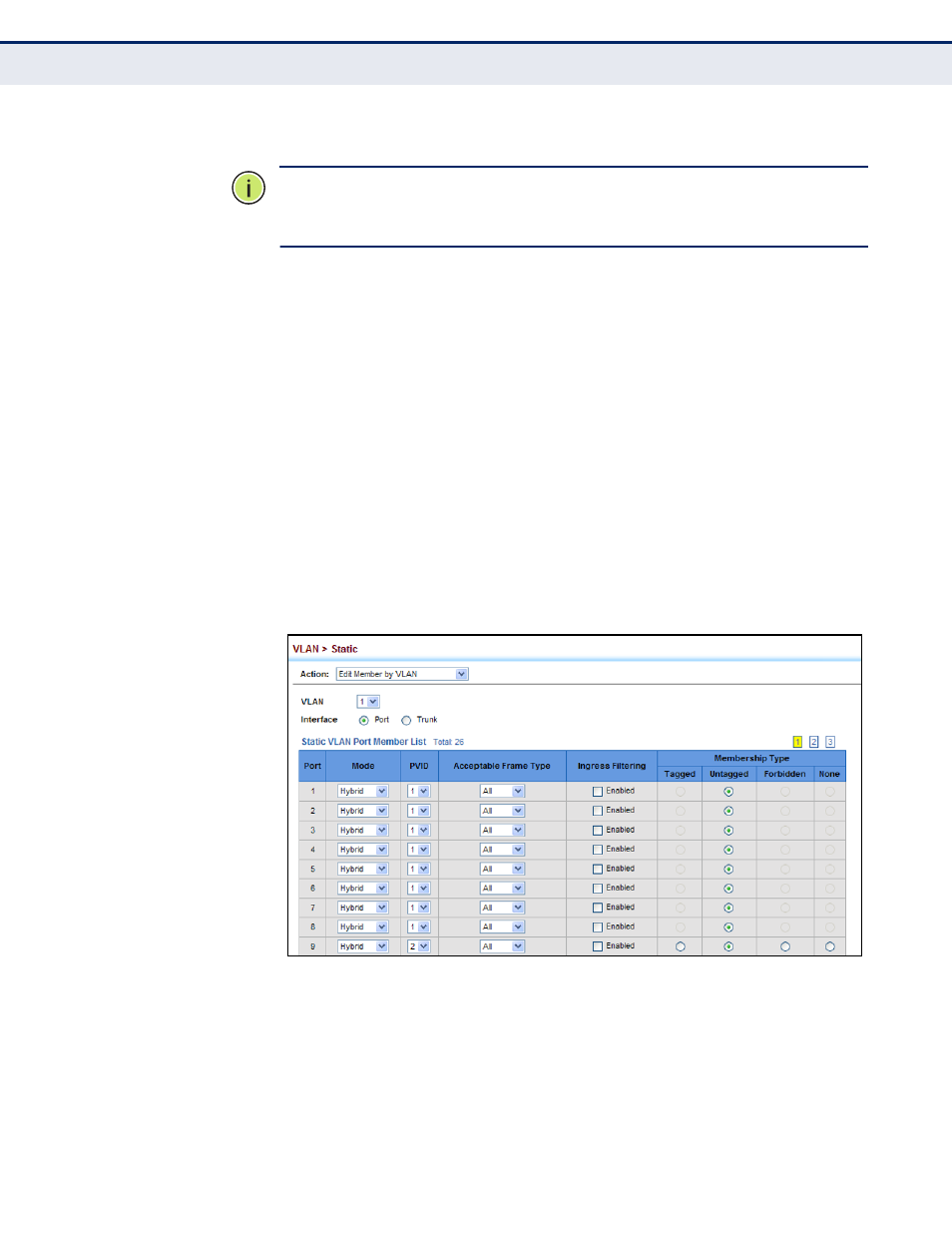

Figure 66: Configuring Static Members by VLAN Index
To configure static members by interface:
1. Click VLAN, Static.
2. Select Edit Member by VLAN from the Action list.
3. Select a port or trunk configure.
