C HAPTER 10 | Class of Service
Layer 2 Queue Settings
– 278 –
W EB I NTERFACE
To configure the queue mode:
1. Click Traffic, Priority, Queue.
2. Select the interface type to display (Port or Trunk).
3. Set the queue mode.
4. If any of the weighted queue modes is selected, the queue weight can
be modified if required.
5. If any of the queue modes that use a combination of strict and
weighted queueing are selected, the queues which are serviced first
must be specified by enabling strict mode parameter in the table.
6. Click Apply.

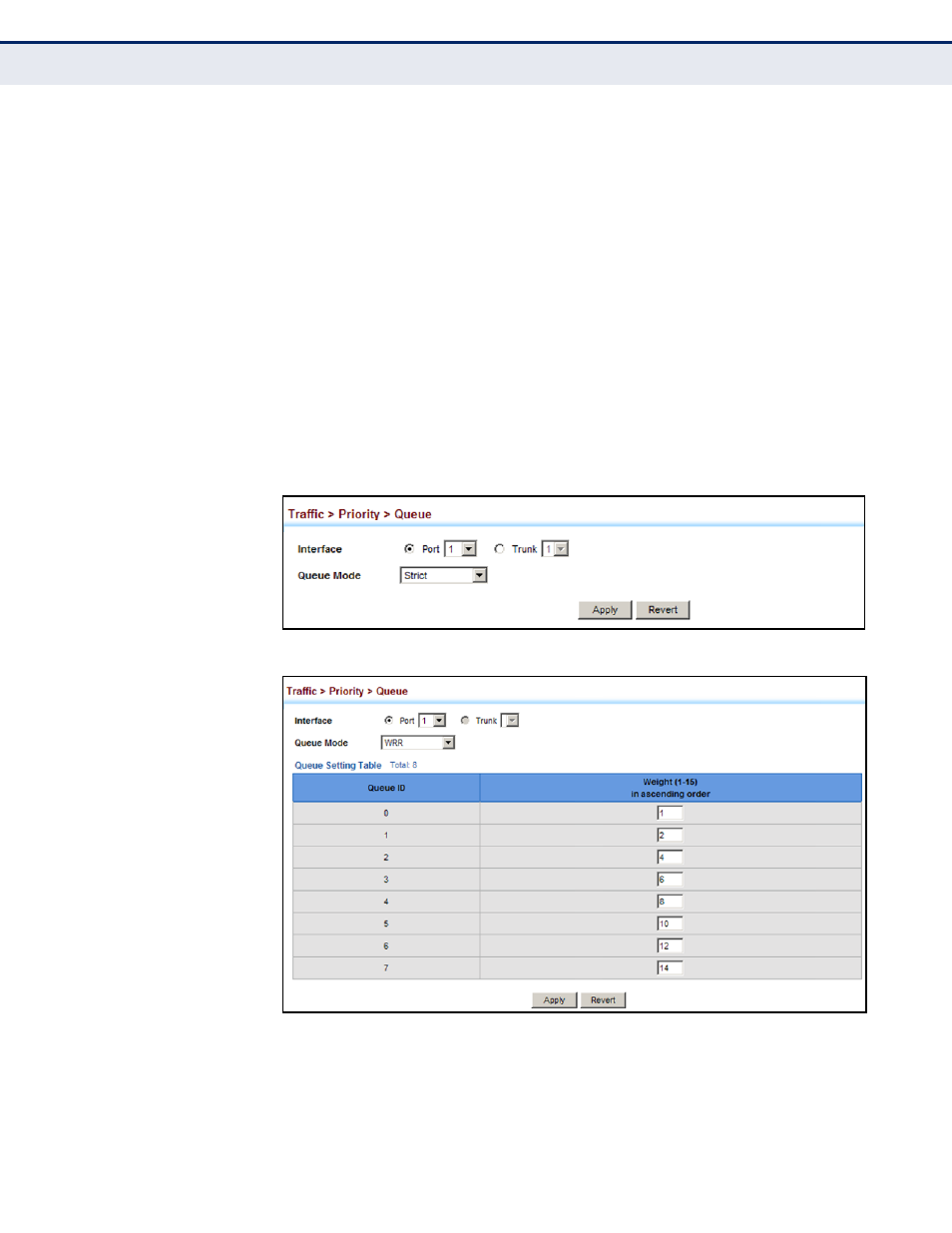

Figure 123: Setting the Queue Mode (Strict)
Figure 124: Setting the Queue Mode (WRR)
