BGP or MPLS VPN sample configurations
6
Static routes for route exchange
Static routes can be used to exchange routes between CE routers and PE routers. In this situation,
a default static route must be configured on a CE router to its associated PE router. A static route
must be configured between the PE router and the network (or networks) that the PE wants to
advertise as available through a VRF.

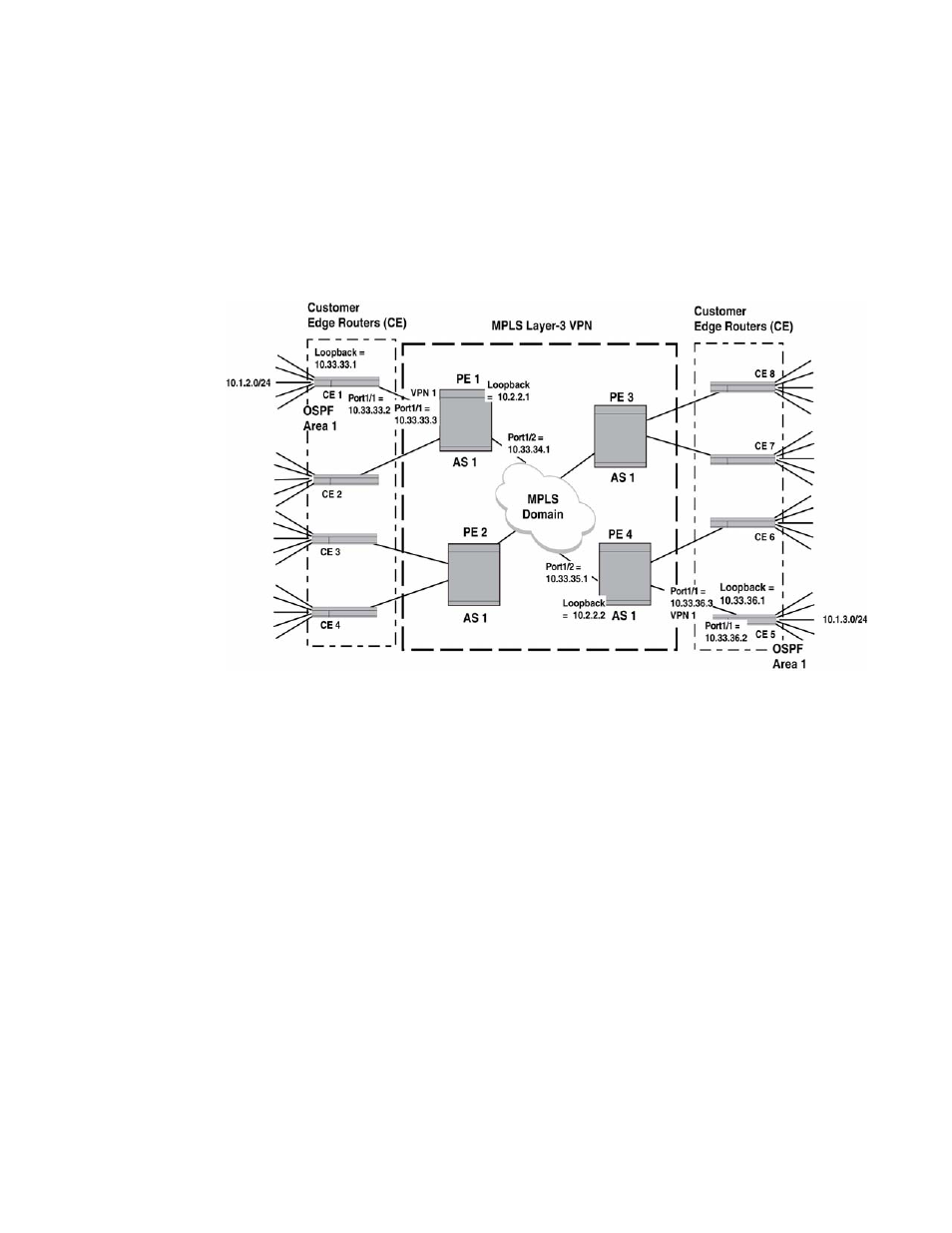

FIGURE 75 Static route to CE network example
To configure static routes to exchange routes between PE routers and CE routers, the user must
perform the configuration steps listed below.
1. “Configuring a static default route on a CE router”
2. “Configuring a static default route on a PE router”
Configuring a static default route on a CE router
To allow route exchange between a CE router and its associated PE router, a static default route
must be created to the interface on the associated PE router where the VPN is enabled. In
Figure 75 , the PE 1 router has the VRF “VPN1” enabled on port 1/1, which has the IP address
10.33.33.3. To create a default static route from CE 1 to this interface on PE 1, enter the following
command.
Brocade(config)# ip route 0.0.0.0 10.33.33.3
