Scenario d: dynamic bypass creation from all plrs – Brocade Multi-Service IronWare Multiprotocol Label Switch (MPLS) Configuration Guide (Supporting R05.6.00) User Manual
Page 210
186
Multi-Service IronWare Multiprotocol Label Switch (MPLS) Configuration Guide
53-1003031-02
Dynamic Bypass LSPs
1
Scenario D: Dynamic bypass creation from all PLRs
Dynamic bypass LSP creation on a fully connected network is as below. When there is path
available, All PLRs, except penultimate node, creates dynamic bypass LSPs with node protection.
This is illustrated in

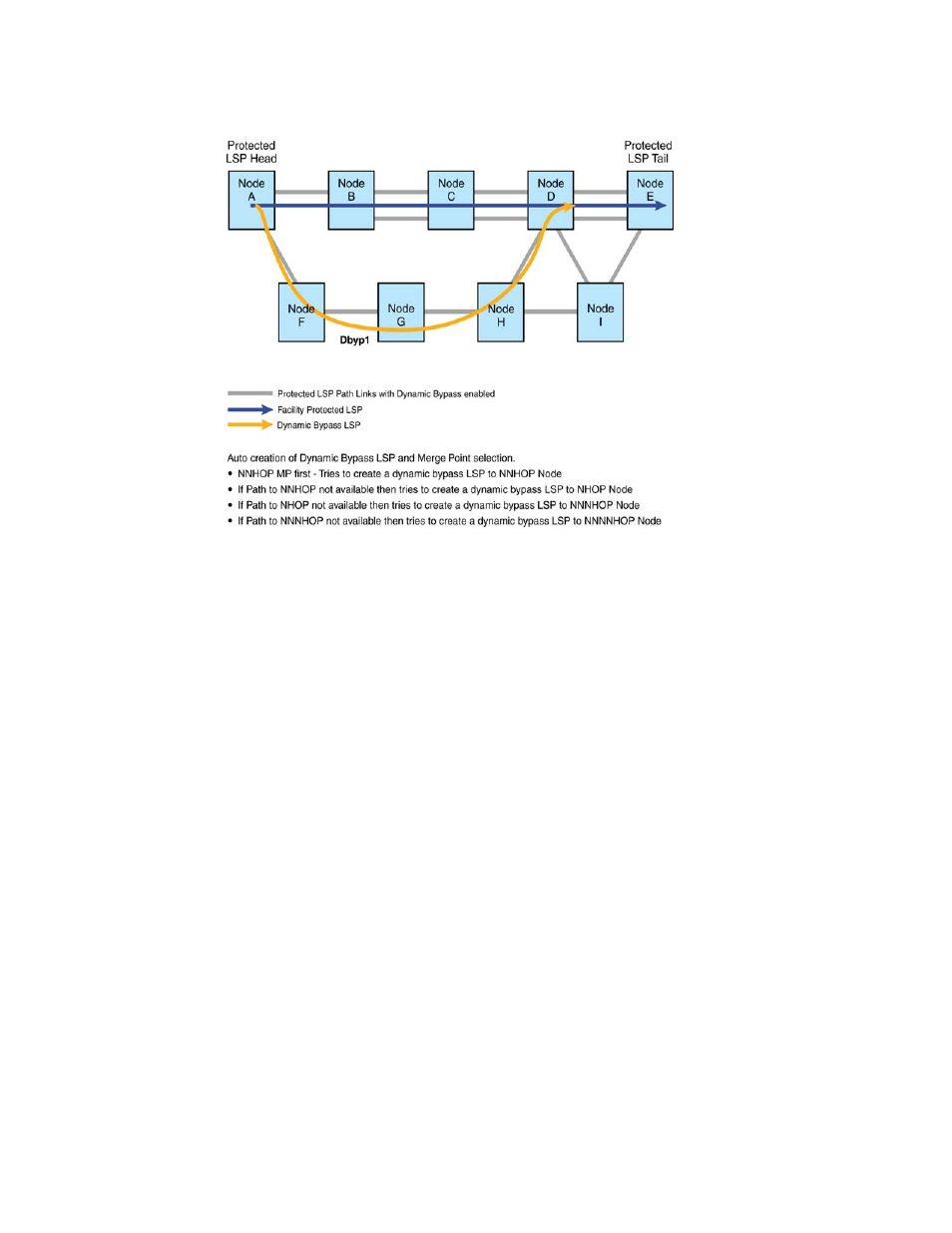

FIGURE 30
Automatic creation of a dynamic bypass LSP for a facility protected LSP
