Enabling m file transfers – Rockwell Automation GMLC Reference Manual User Manual
Page 836
Publication GMLC-5.2 - November 1999
Understanding M Files
799

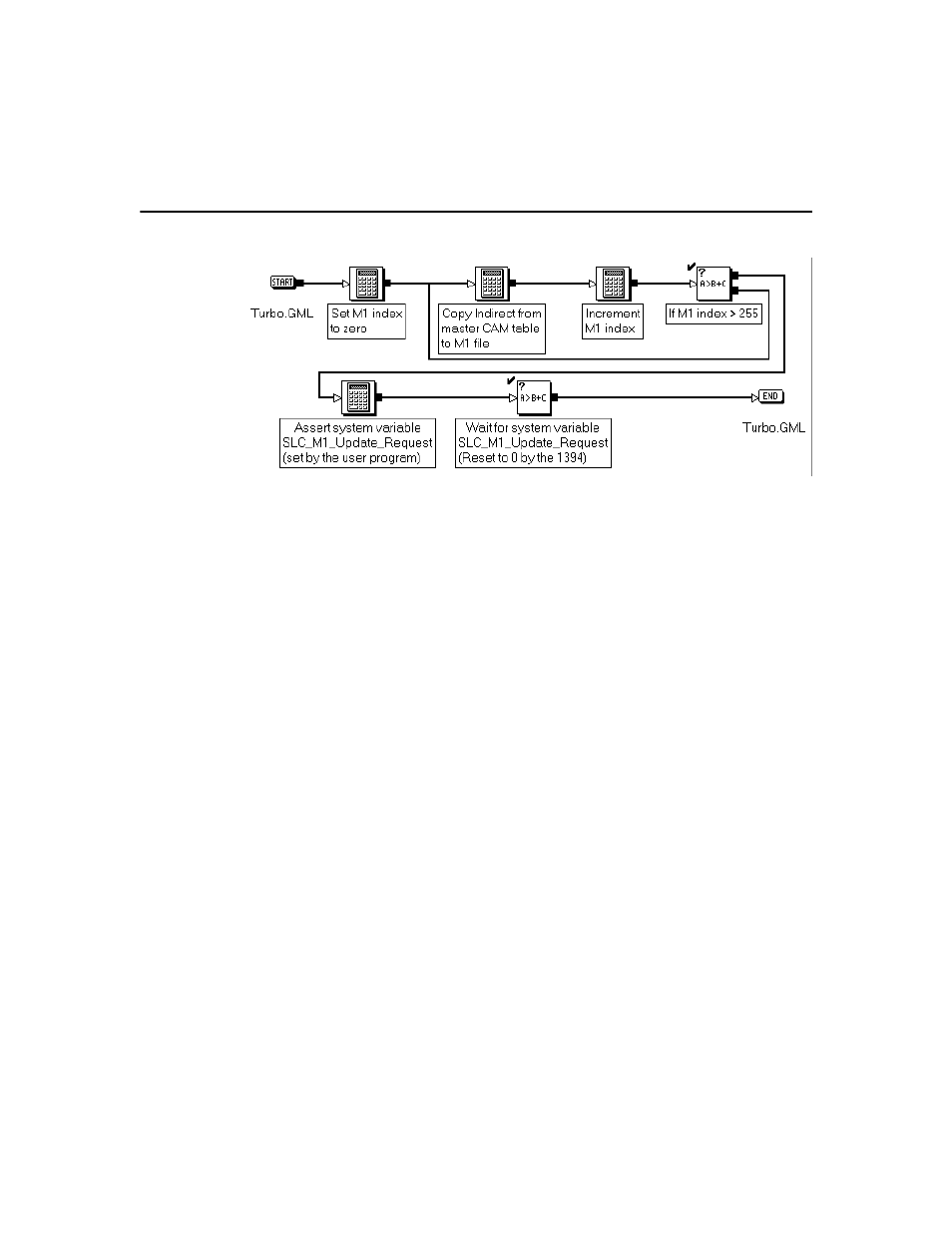

Figure 9: Typical GML Commander Program for M1 File Transfers
Enabling M File Transfers
To enable M file transfers in GML Commander:
1. From the menu bar, select Configure. The Configure menu appears.
2. Select Control Options. The Configure Control Options dialog box
appears.
3. Select the SLC tab. The SLC page appears.
Note: If the SLC tab doesn’t appear, on the General page of the
Control Options dialog box, select IMC S Class 1394/1394
Turbo in the Control Type field, 3.5 (or higher) in the iCODE
Version field, and the SLC field in the Interface area (see
Enabling the SLC Interface in GML Commander). Then
select the SLC tab.
