Manipulating Blocks 139

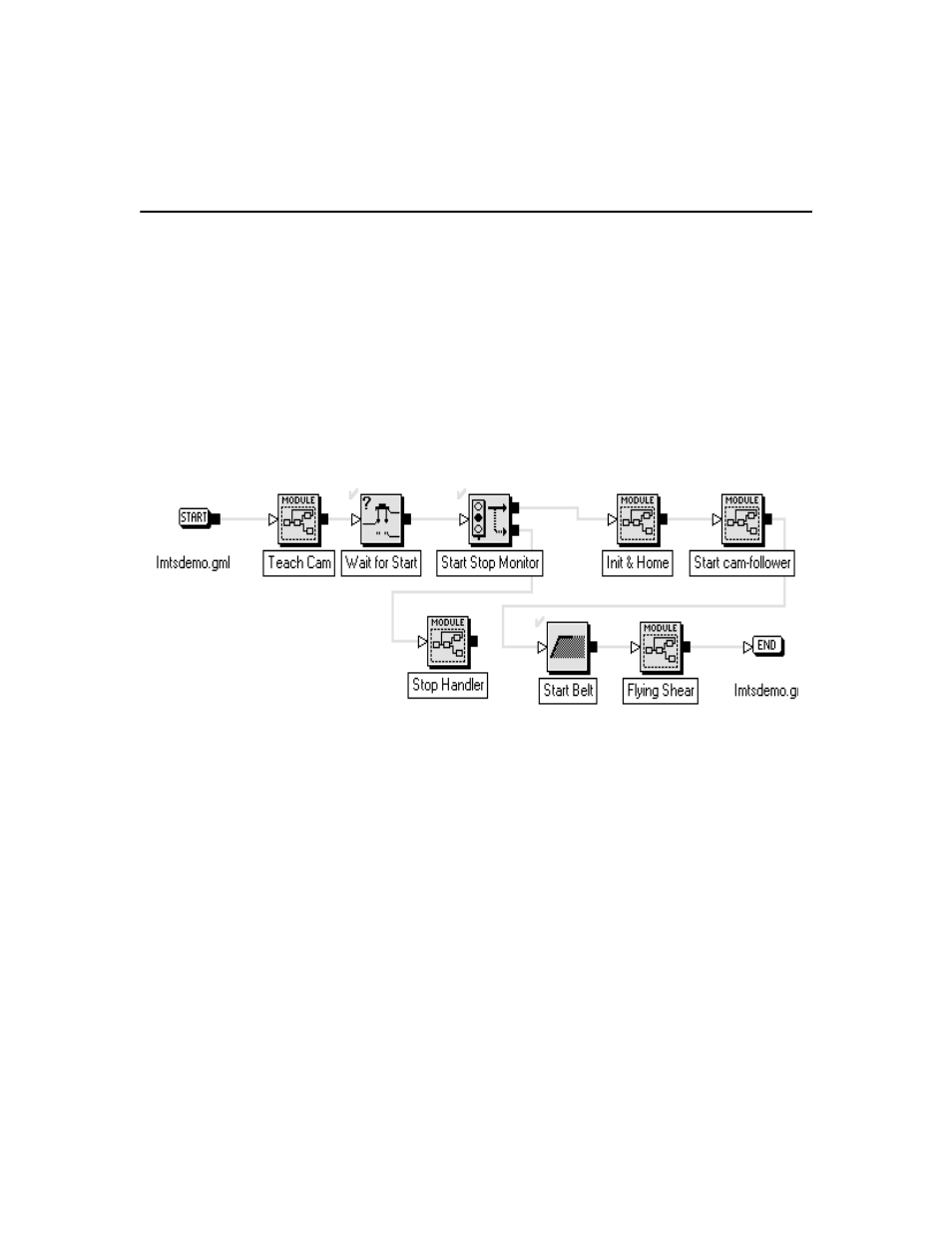

Moving Blocks
You can drag blocks, including the Start and End blocks, anywhere in the
Diagram Window. To drag a block or selection of blocks press and hold
down the left mouse button on the selected blocks and drag the cursor
(now in the shape of a hand) to the desired location. Then release the left
mouse button. The original connection lines remain intact no matter
where you move them.
Showing the Connection Lines
Use the Diagram Drawing option (select Properties from the File menu)
to show connection lines:
• On top of blocks to help keep track of connections in the foreground.
• Underneath blocks to show blocks in the foreground.
Disconnecting Blocks
To cut a connection:
