Publication GMLC-5.2 - November 1999
788 1394 GMC Turbo SLC Interface

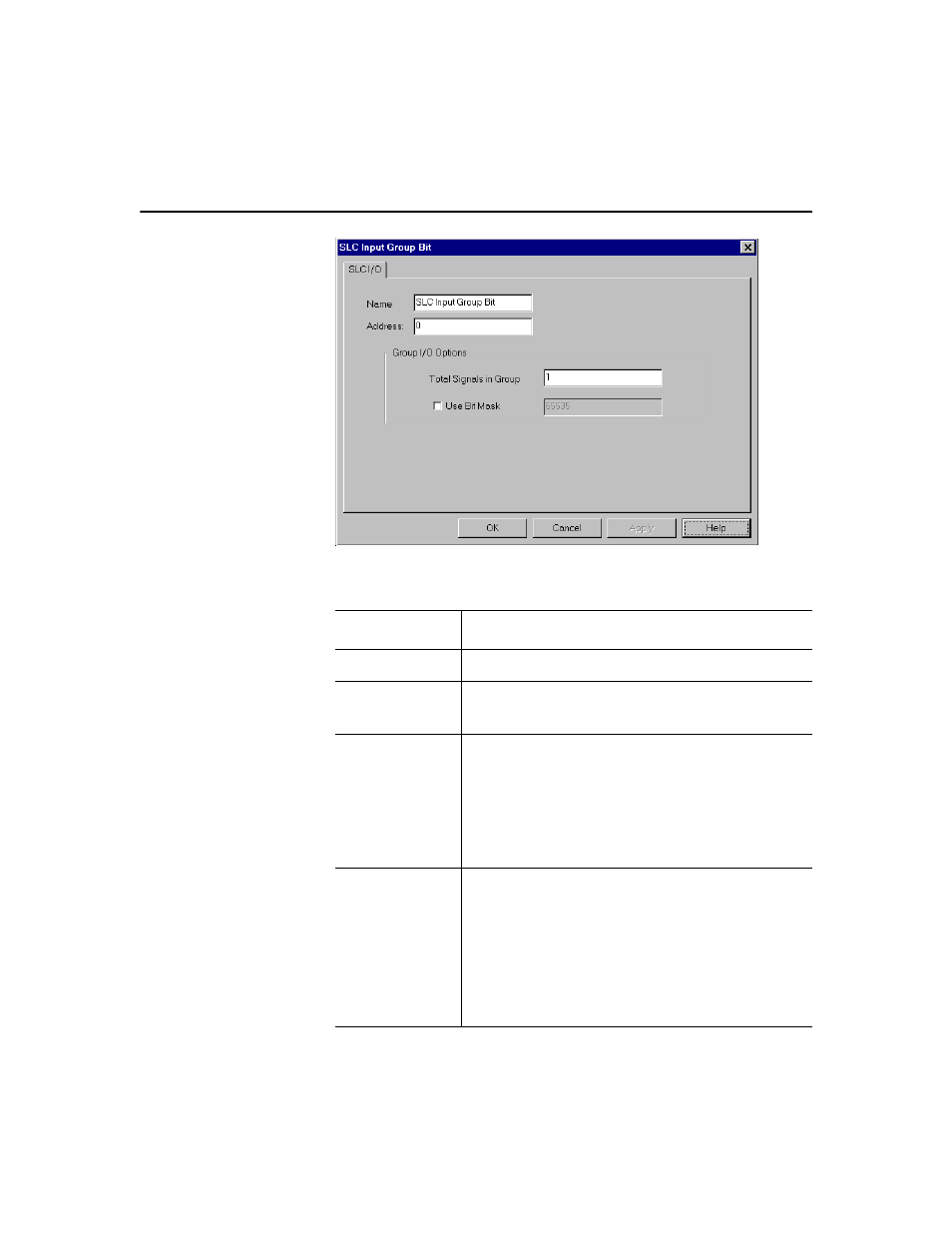

4. Make entries to the following fields:
Field Description
Name Type the name of the SLC Input Bit Group.
Address Type the address, or number, of the first bit in
the group.
Total Signals in
Group Type the number of consecutive bits in the
group.
Note:
This number must include all bits in the
sequence—bits whose signals you use,
as well as bits in the sequence whose
signals you do not use.
Use Bit Mask Select this if you wish to exclude (mask) one or
more signals in the group, then type a binary
value representing the bits whose signals are to
be read.
See the Optional Mask section of the Expression
Builder chapter of this manual for more
information on bit masks.
