Setting the Smart Power Options 43

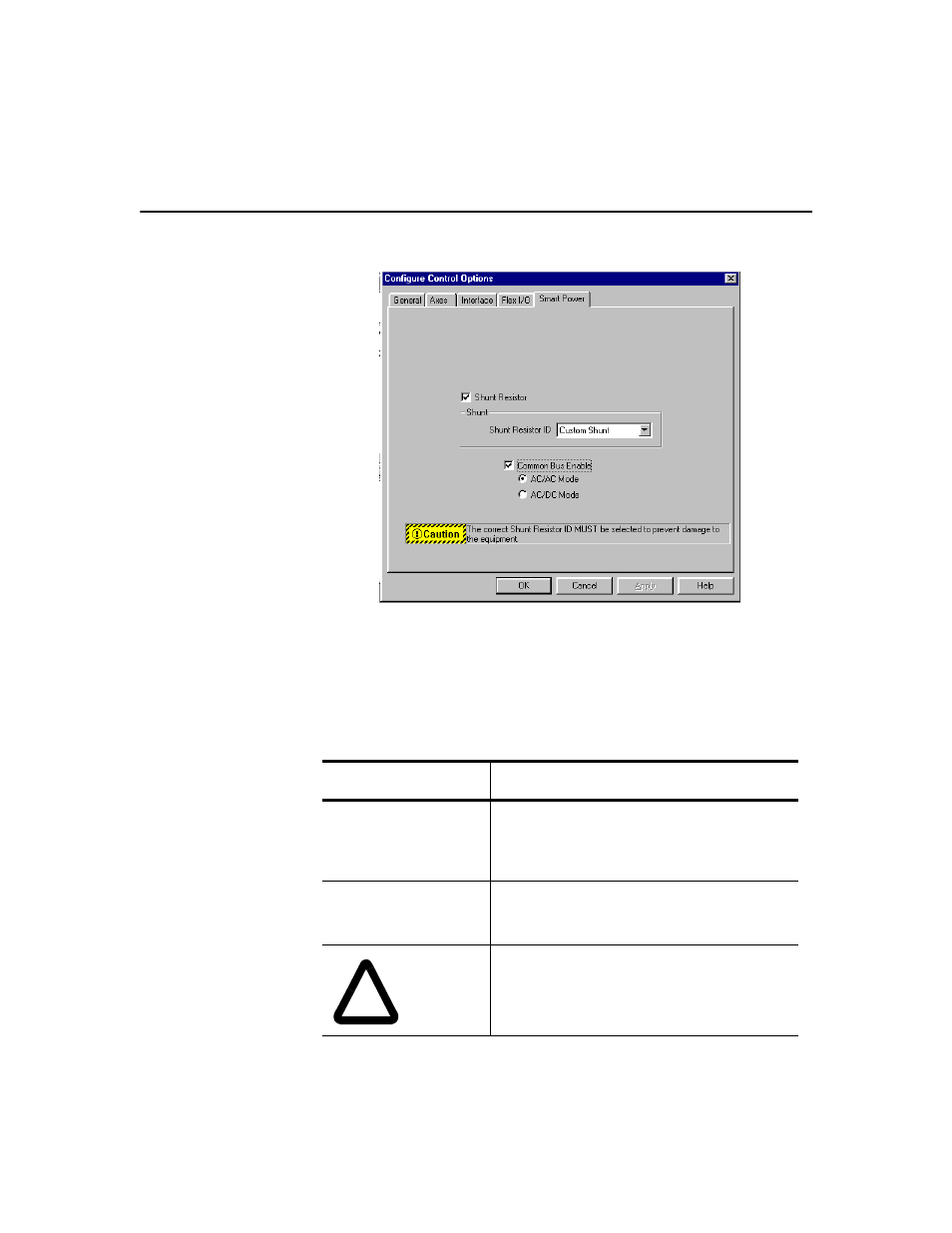

To make the necessary System Smart Power data parameter settings (data
parameters D132 through D136) and data bit (data bits B63 and B64)
settings, make entries in the following fields:
Field: Description:
Shunt Resistor Select this if your Smart Power 1394 system module is
equipped with a shunt resistor.Note:If your Smart Power
1394 system module is not equipped with a shunt
resistor, do not make this selection.
Shunt Resistor ID If Shunt Resistor is selected, above, select the catalog
number of the Allen-Bradley shunt resistor you are
using.
!
ATTENTION: If you do not select the
correct Shunt Resistor ID, there is a risk
of damage to the equipment.
