140 Working with Blocks

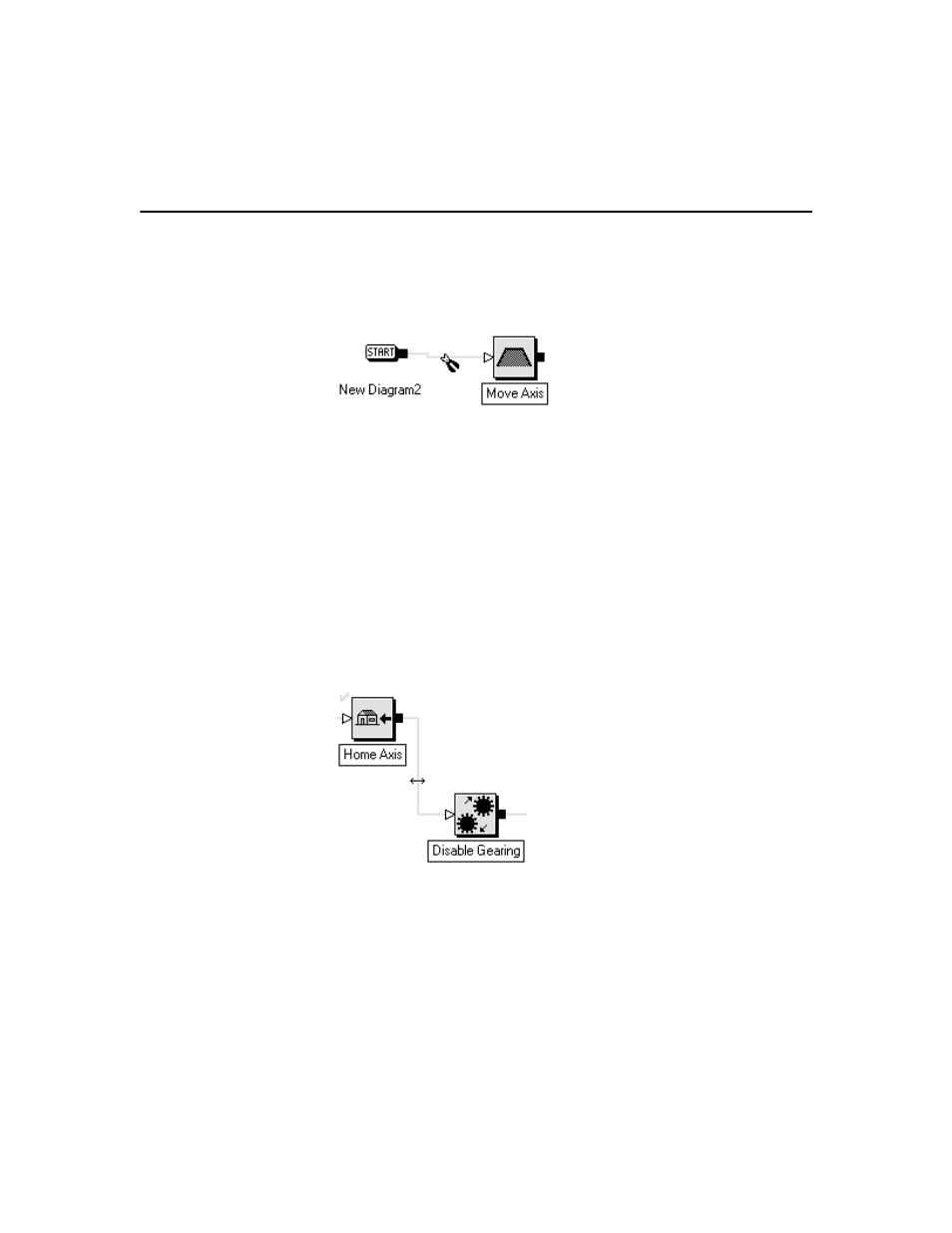

1. Move the cursor to a connecting line. The cursor changes to a wire
cutter.
Note: You can only cut horizontal connecting lines.
2. Click your left mouse button. The connection is cut.
Changing the Position of the Connection Lines Between Blocks
In some cases, when you have a connection that loops back to an earlier
block in the diagram, you can move a vertical connection to avoid other
blocks.
To move lines:
1. Place the cursor on the vertical connecting line. The cursor changes to
a double arrow.
2. Hold down the left mouse button.
3. Drag the connection line to the desired position and release.
