Rockwell Automation GMLC Reference Manual User Manual
Page 167
Publication GMLC-5.2 - November 1999
130
Using the Imaginary Axis

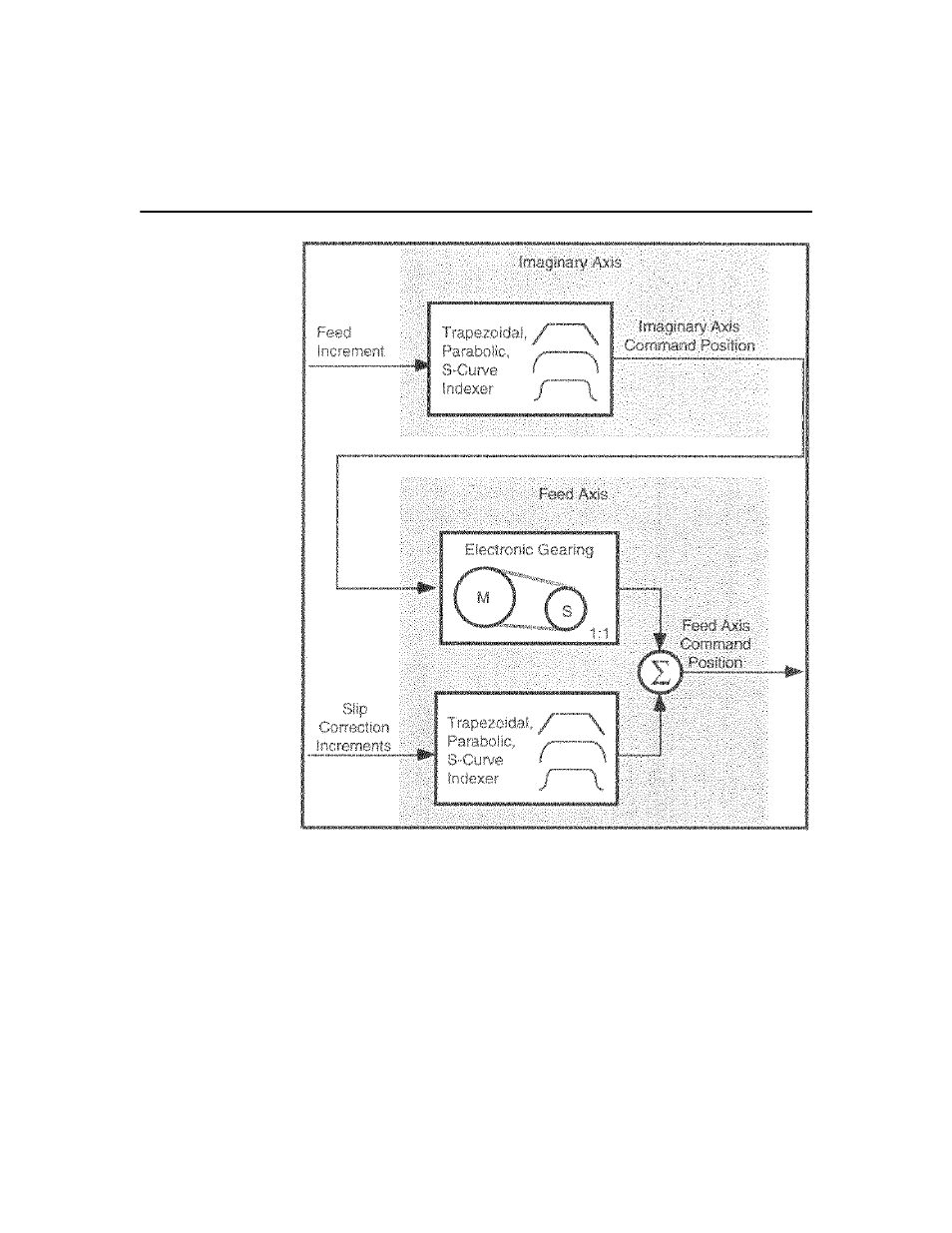

Using the imaginary axis allows two moves to be superimposed on one
another in the same way that a move is superimposed on gearing. A GML
diagram that implements this technique is shown in the following diagram
and included with the GML distribution software in the Samples
directory, as SLIPCOMP.GML.
