Publication GMLC-5.2 - November 1999

166

Working With Modules

•

Select a single module in the Diagram Explorer and view its contents
in the Diagram Window.

Viewing Module Contents Using Expand

To view the contents of a module while preserving the module:

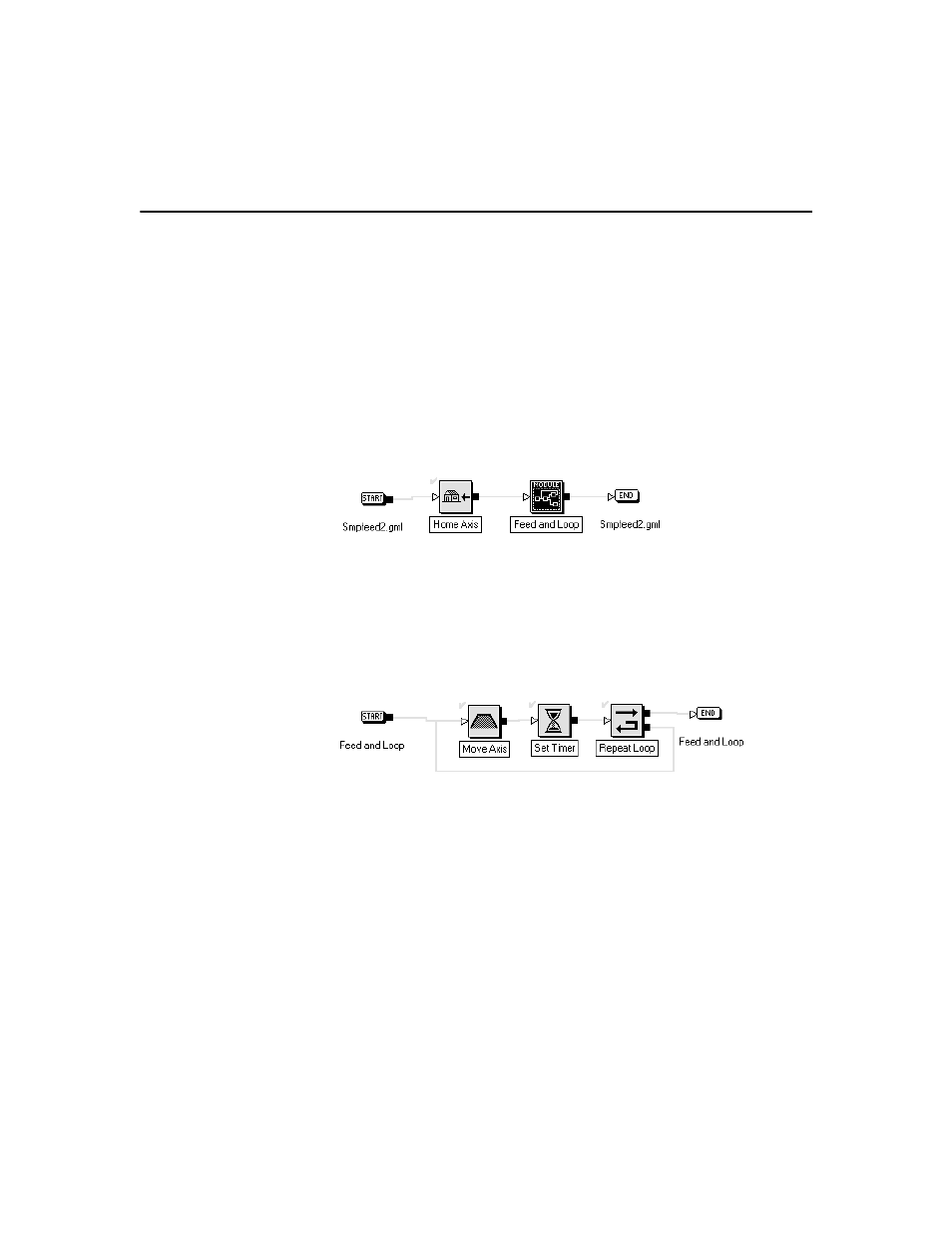

1. In the Diagram Window, click once with the left mouse button to

select a module block within a diagram. The module block is
highlighted. In the following example, the Feed and Loop module
block is highlighted

2. From the menu bar, select Module. The Module File menu appears.

3. Select Expand. The module block in the Diagram Window is

replaced by the contents the module. In the following example, the
contents of the Feed and Loop module appear (The name of the mod-
ule appears under the Start and End blocks).

Collapsing Modules

There are several ways to collapse an expanded module in the Diagram
Window, causing it to display the module block (in place of the blocks
and connections within it):

•

In the Tag Explorer tree diagram, select a module that is one or more
levels above the expanded module.
