Displaying Diagram Information 153
5. Make entries in the following fields:
6. Select Find. The system searches for the information.
Displaying Diagram Information
GML Commander has a Diagram Info option to display module and block
information for the current diagram. The message box states the number
of discrete modules in the active diagram, the number of times modules
are used in the diagram, and the number of discrete function blocks the
diagram contains.
To display this information about the current diagram:
1. From the menu bar, select Diagram. The Diagram menu appears.

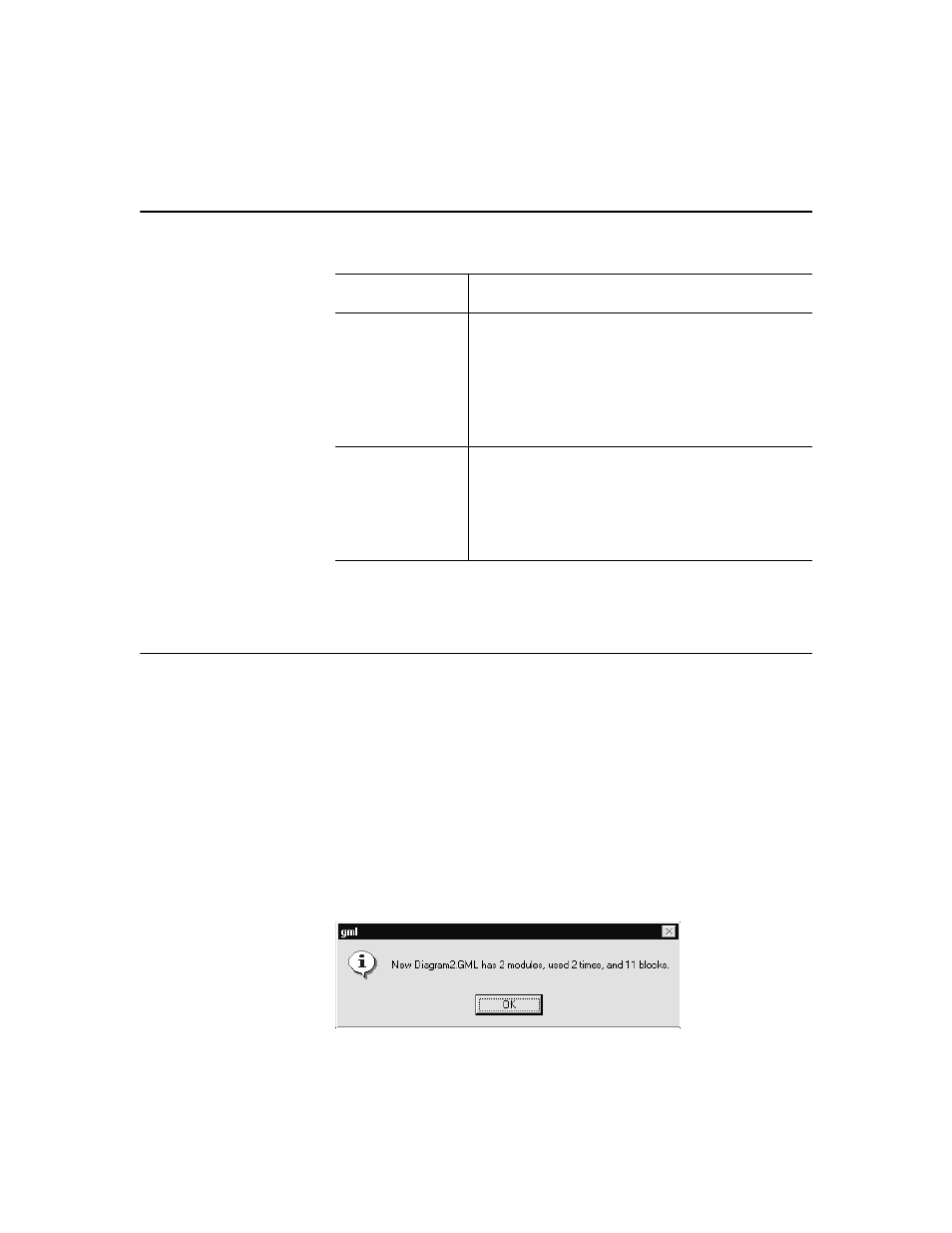

2. Select Diagram Info. A dialog box similar to the following appears:
Field Description
Find what Type the text that you want to search for. If a
block contains the text, the block appears in the
Diagram Window.
Note:
This field is activated only if the In
Block’s Name or In Block’s Parameter
field is selected in the Search area.
Find type Select the type of block that you want to search
for from the drop-down list.
Note:
This field is activated only if the For
Block Type field is selected in the
Search area.
