Using AxisLink I/O 669

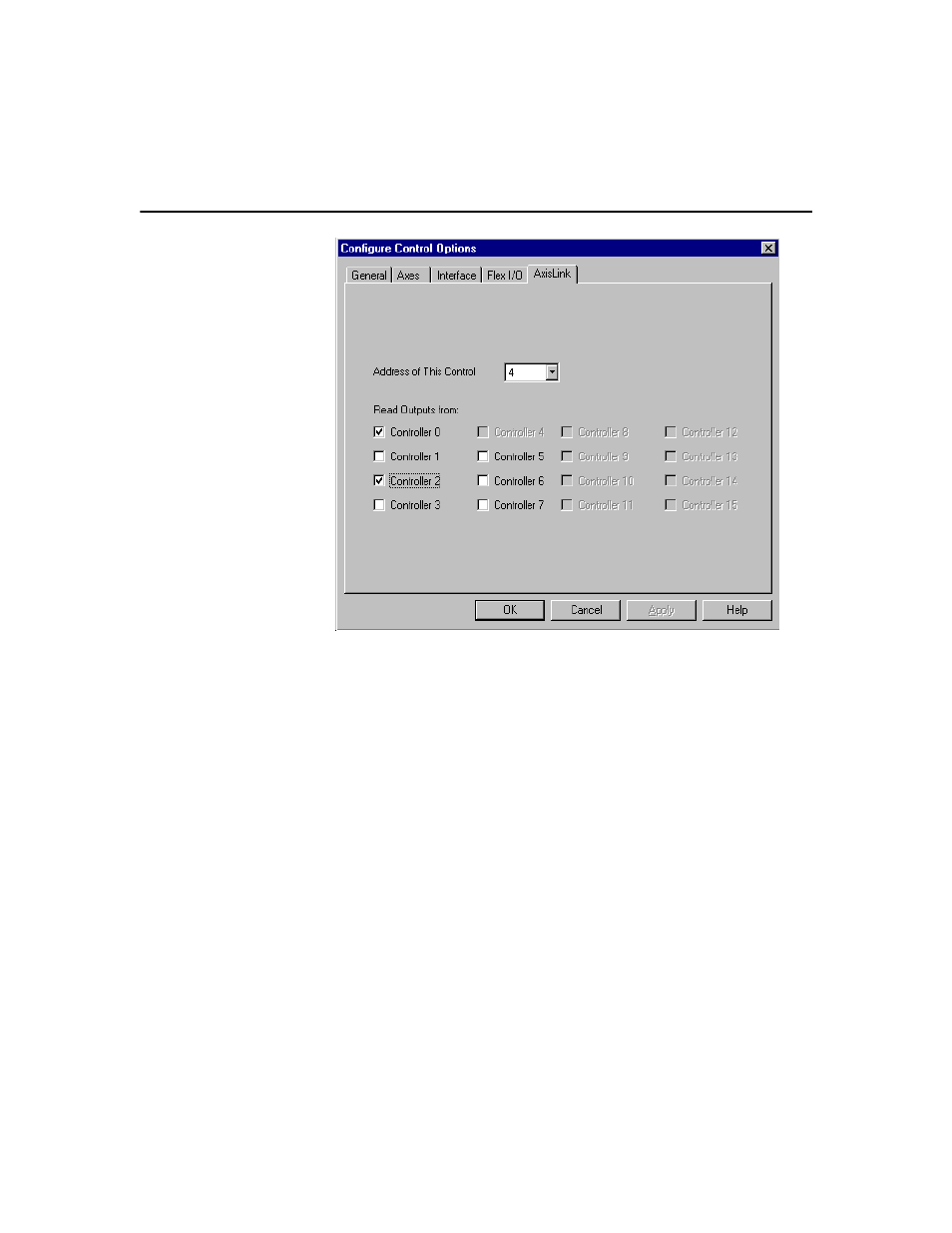

Note: In the above example, controller address number 4—the
address of the controller receiving input—is not available.
Addresses 8 through 15 are enabled only by selecting
Extended AxisLink in the General page of the Configure
Control Options dialog box.
Defining AxisLink Inputs
After the AxisLink I/O Connections have been configured, the next step
is to define the AxisLink inputs that are used in the GML Commander
diagram.
1. In the Tag Explorer, under AxisLink I/O, highlight either Input or
Input Group.
2. To define a new input, in the Tag Window, do one of the following:
• Double-click the left mouse button.
• Single-click the right mouse button.
