16 GML Commander Overview
Understanding the Diagram Explorer

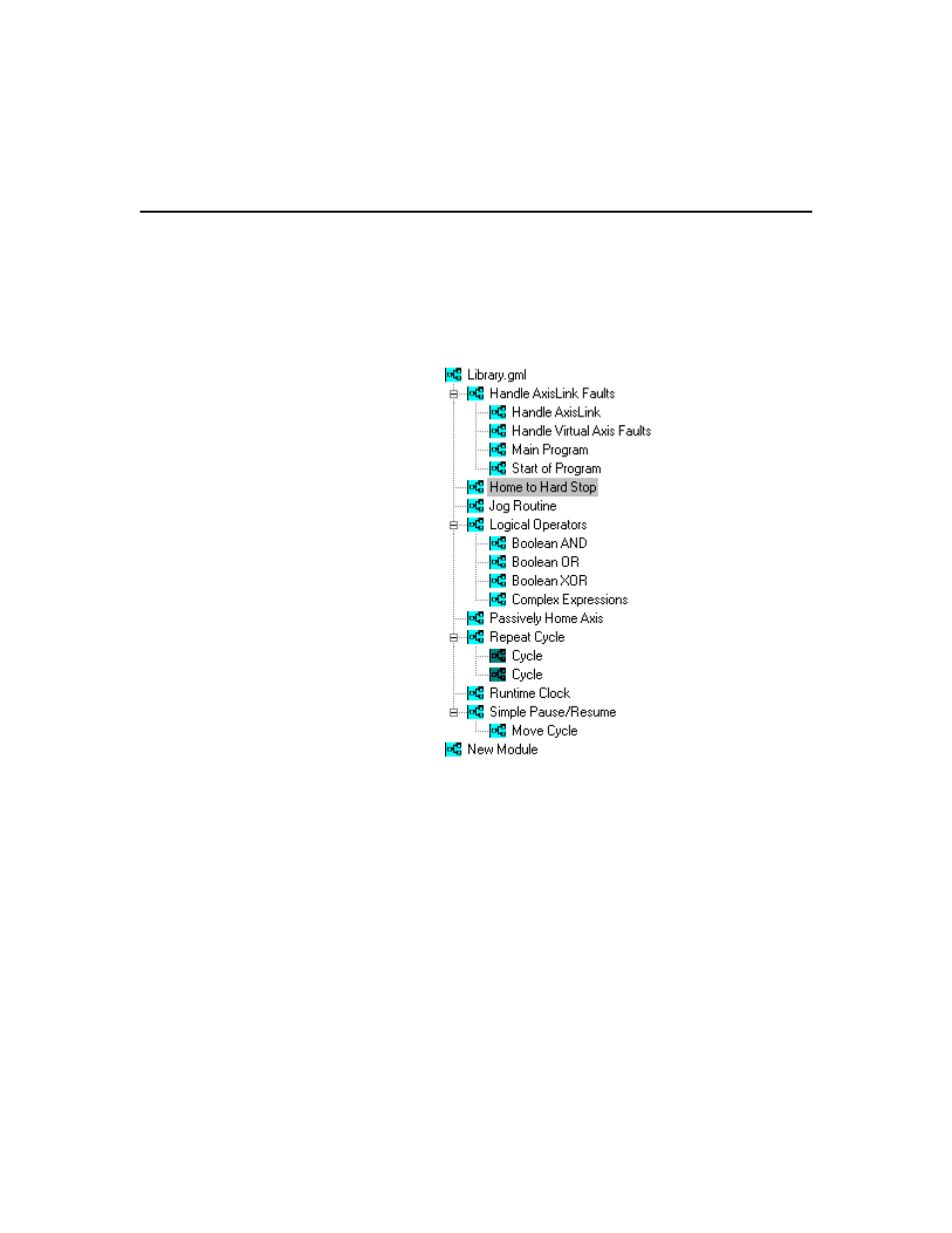

The Diagram Explorer provides a hierarchical tree that shows the
organization of information.
GML Commander uses the same methods that Microsoft Windows
Explorer uses to move, open, and view the blocks and modules within a
diagram. You can:
• Navigate or edit programs on a module level.
• Explode or collapse branches.
• Drag and drop a module from the tree's node onto another tree's node.
The new module retains not only its tags, blocks and connections, but
also its branches.
