8

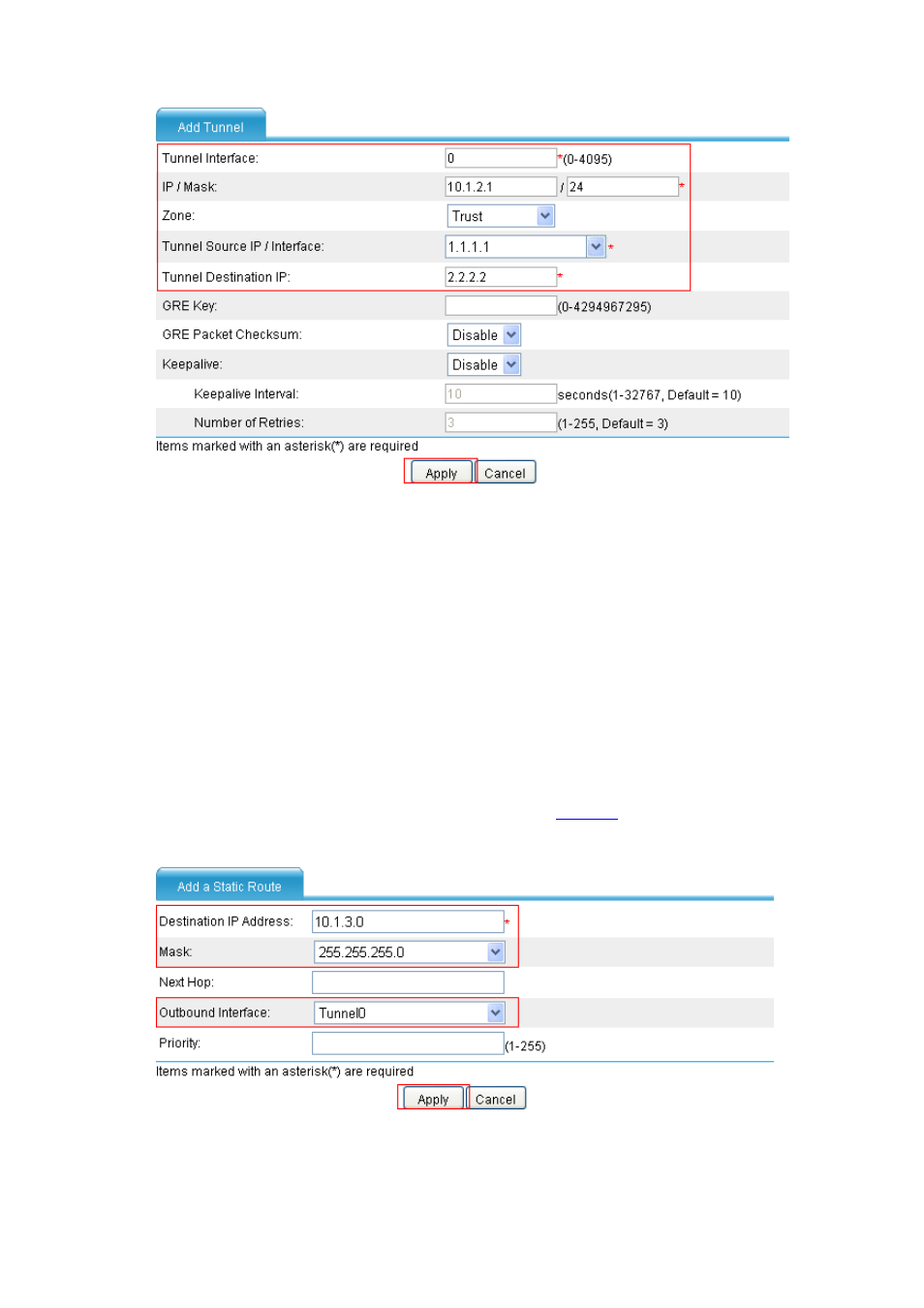

Figure 11 Create a GRE tunnel interface
•
Type 0 in the Tunnel Interface text box.
•
Type IP address/mask 10.1.2.1/24.
•
Select Trust from the Zone drop-down list. (Select a security zone according to your network
configuration.)
•
Type the source end IP address 1.1.1.1, the IP address of GigabitEthernet 0/1.
•
Type the destination end IP address 2.2.2.2, the IP address of GigabitEthernet 0/1 on Device B.
•
Click Apply.
# Configure a static route from Device A through interface Tunnel 0 to Group 2.
•
Select Network > Routing Management > Static Routing from the navigation tree and
then click Add to perform the configurations shown in
.
Figure 12 Add a static route from Device A through interface Tunnel 0 to Group 2
•
Type 10.1.3.0 as the destination IP address.
•
Select mask 255.255.255.0.
•
Select Tunnel0 as the outbound interface.
