5

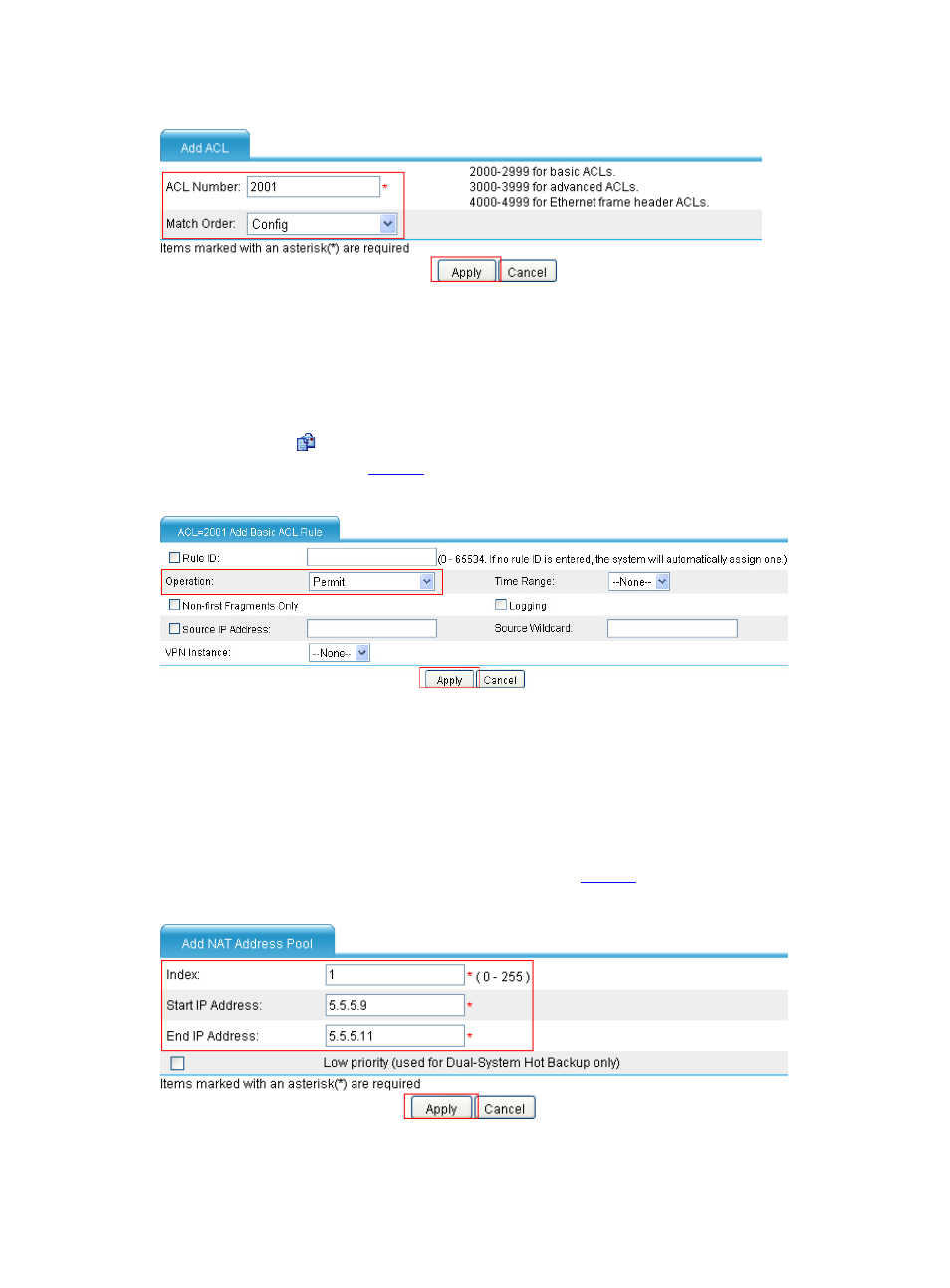

Figure 5 Add ACL 2001
• Type 2001 in the ACL Number text box.
• Select Config as the match order.
• Click Apply.
# Configure an ACL rule.
• Click the icon of ACL 2001 to enter the ACL rule configuration page. Then click Add. Create
an ACL rule as shown in Figure 6 .
Figure 6 Add an ACL rule
• Select Permit as the operation.
• Click Apply.
Step3 Configure dynamic NAT and the internal server.
# Configure the address pool.
• Select Firewall > NAT Policy > Dynamic NAT from the navigation tree. In the Address Pool
area, click Add. Add a NAT address pool as shown in
Figure 7 .
Figure 7 Add a NAT address pool
• Type 1 in the Index text box.
