AT-S60 Management Software User’s Guide
Section VI: Web Browser Management 805
Displaying the RADIUS Settings
To display the RADIUS settings, perform the following procedure:
1. From the Home Page, select Monitoring.
The Monitoring System Page is displayed with the General Tab
selected by default, as shown in Figure 194 on page 592.
2. Select the Server-based Authentication Tab.
The Server-based Authentication Tab is shown in Figure 298 on
page 803.
3. Click on RADIUS Settings.
4. Click View.
The RADIUS Client Configuration Page is shown in Figure 300.

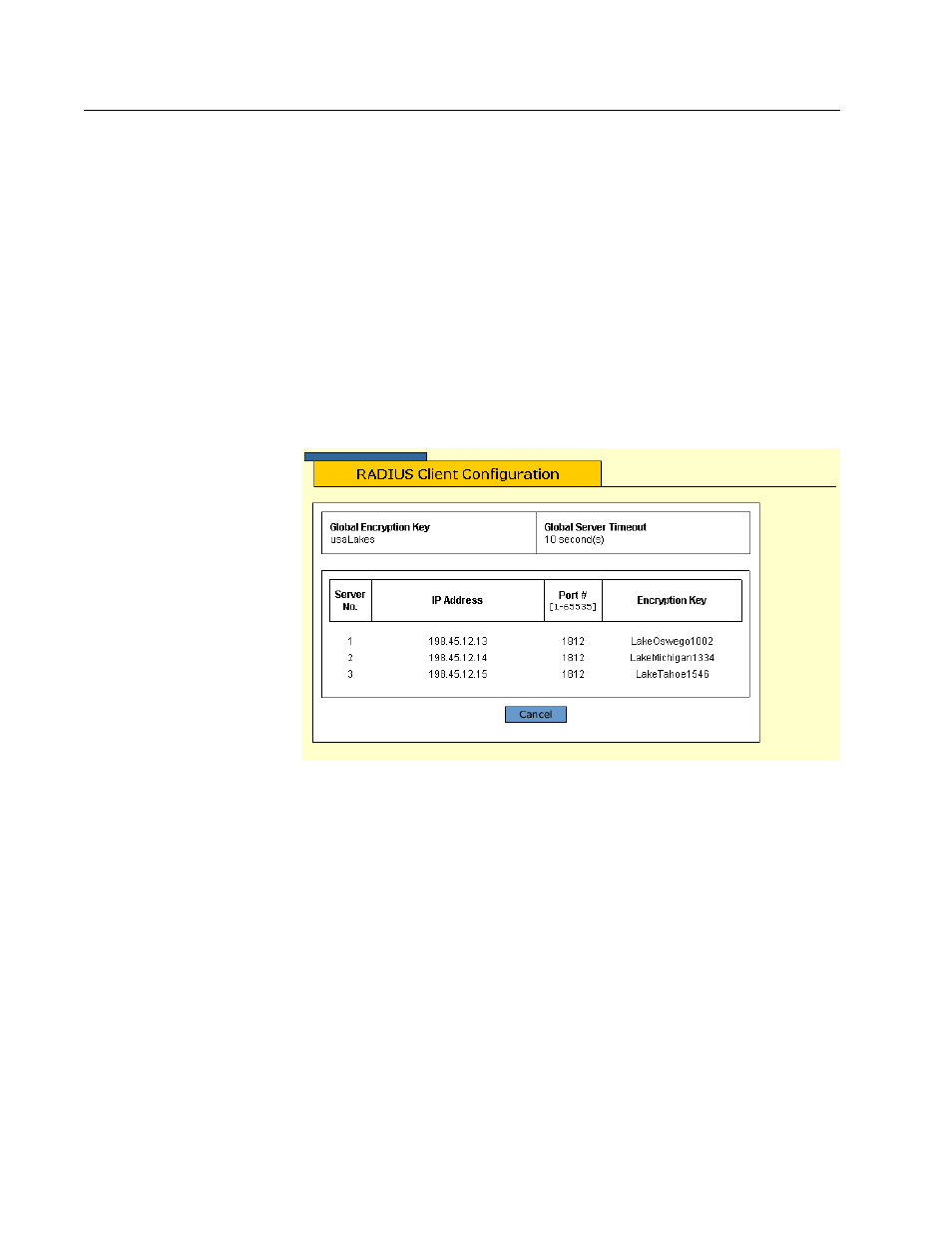

Figure 300 RADIUS Client Configuration Page
5. To close the page, click Cancel.
