AT-S60 Management Software User’s Guide
Section VI: Web Browser Management 747
Displaying User
Table Entries
To display entries in the SNMPv3 User Table, perform the following
procedure.
1. From the Home Page, select Monitoring.
The Monitoring System Page is displayed with the General Tab
selected by default, as shown in Figure 194 on page 592.
2. Select the SNMP Tab.
The SNMP Monitoring Tab is shown in Figure 199 on page 602.
3. From the SNMP Monitoring Tab, click the circle next to View User
Table.
4. Click View at the bottom of the page.
The Monitoring, SNMPv3 User Table Page is shown in Figure 267.

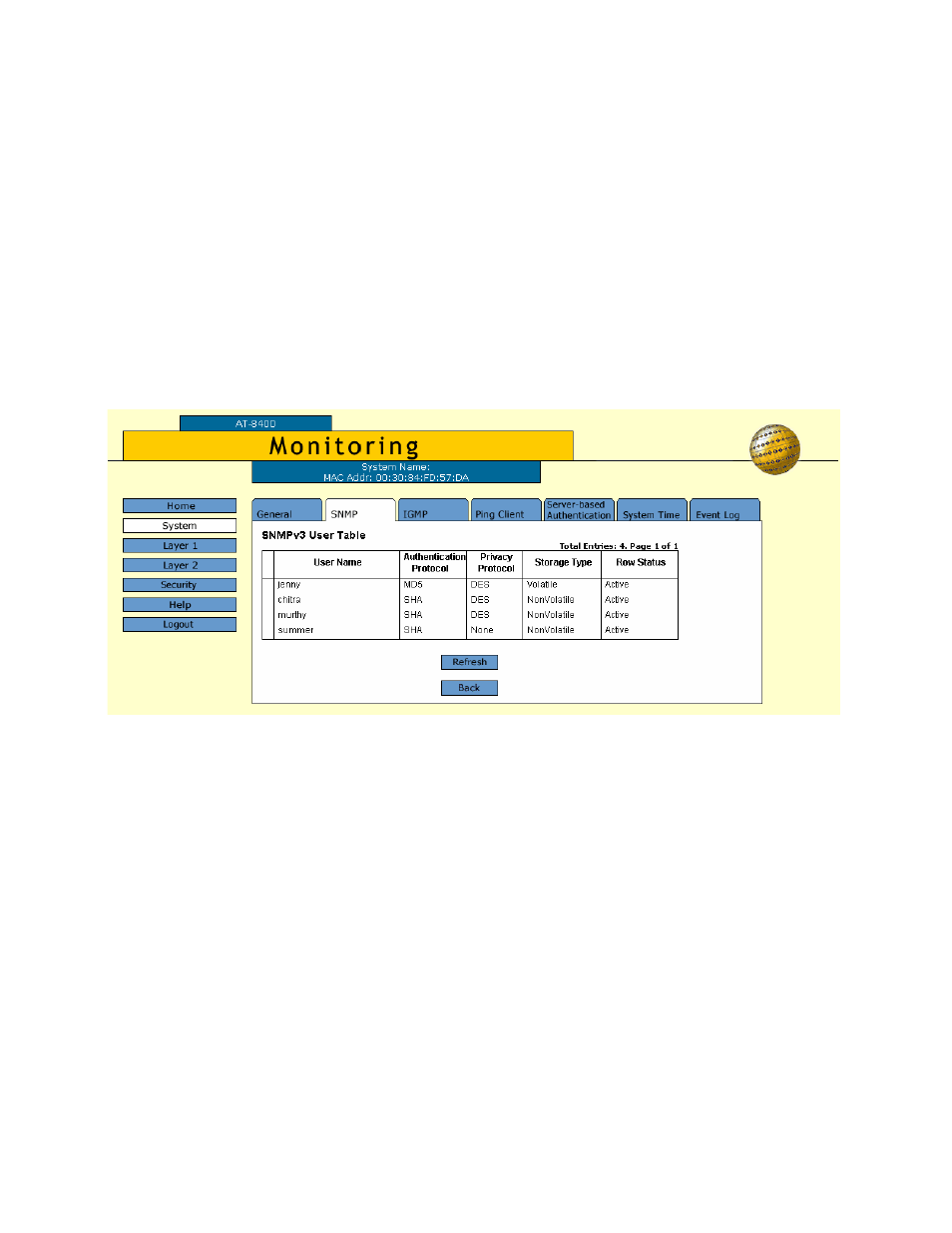

Figure 267 Monitoring, SNMPv3 User Table Page
