AT-S60 Management Software User’s Guide
Section VI: Web Browser Management 647
Displaying the Port Trunks
This procedure allows you to view the port trunk settings using a web
browser management session.
To display the port trunks, perform the following procedure:
1. From the Home Page, select Monitoring.
The Monitoring System Page is displayed with the General Tab
selected by default, as shown in Figure 194 on page 592.
2. Select the Layer 1 option.
The Layer 1 Page is displayed with the Port Settings Tab selected
by default, as shown in Figure 209 on page 626.
3. Select the Port Trunking Tab.
The Port Trunking Tab is shown in Figure 218.

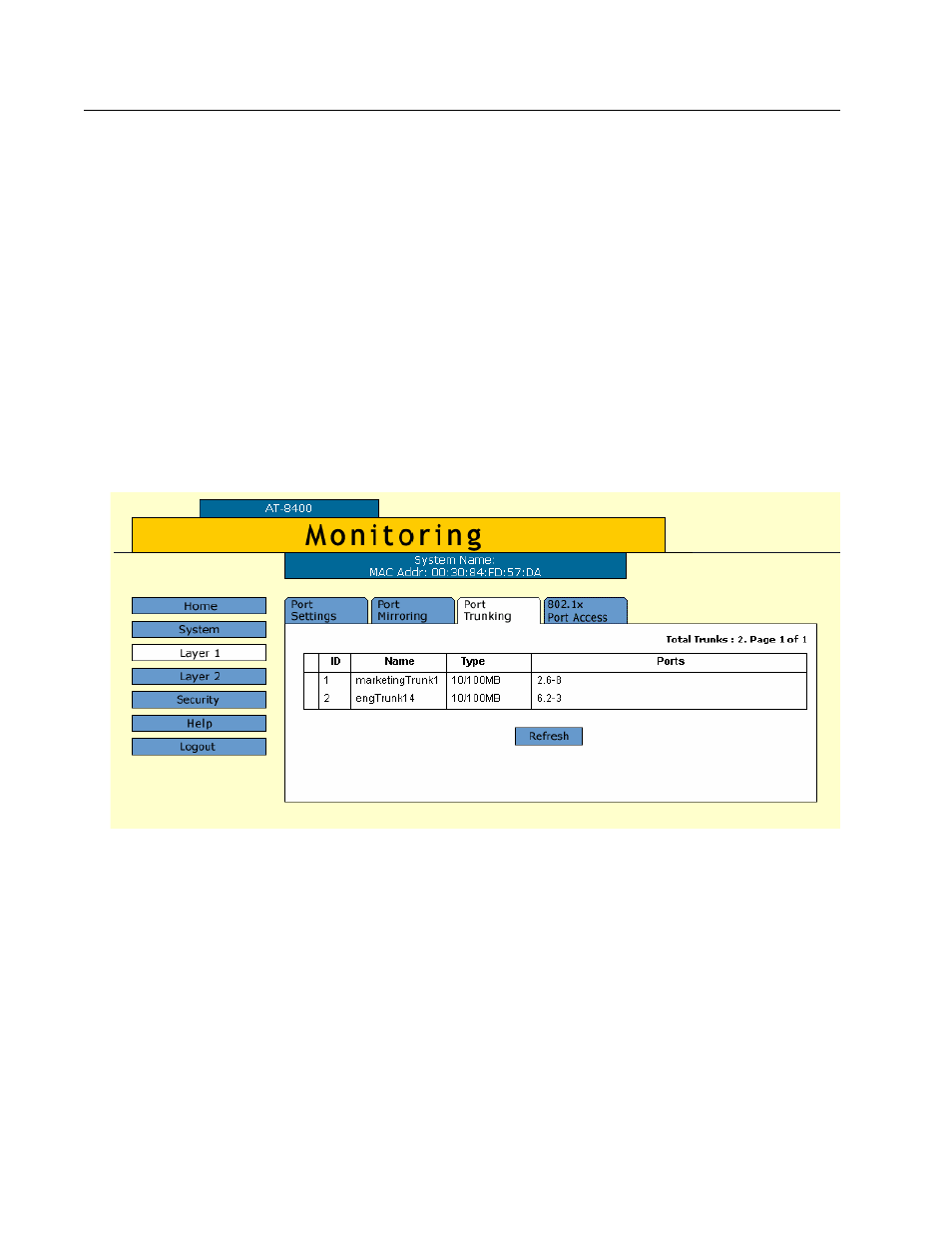

Figure 218 Monitoring Layer 1 Page, Port Trunking Tab
