AT-S60 Management Software User’s Guide
Section VI: Web Browser Management 659

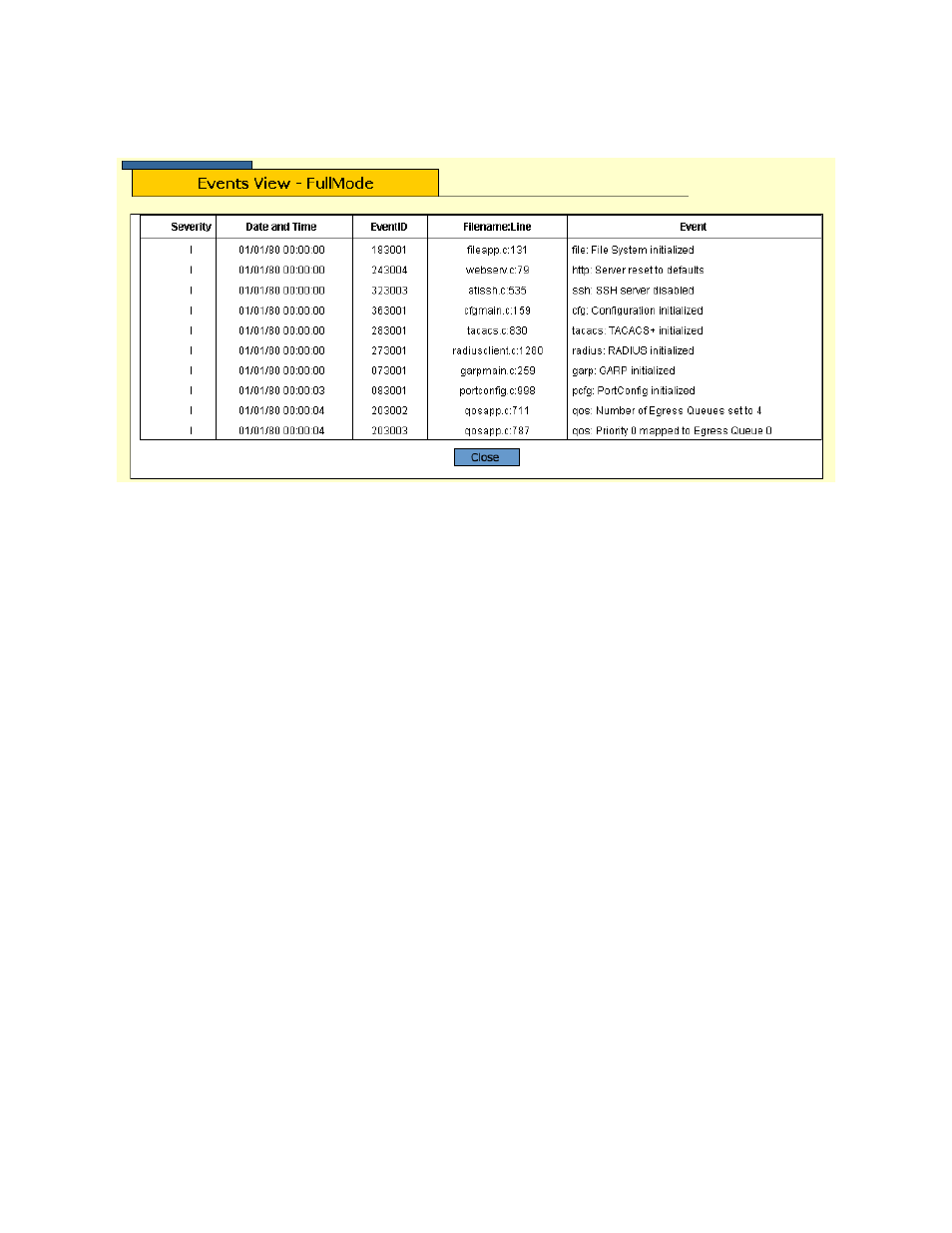

Figure 224 shows an example of the Event Log in the Full display
mode. The Normal display mode does not include the Filename,
Line Number, and Event ID items.
Figure 224 Event Log Example
The columns in the log are described below:
❑ S (Severity) - The event’s severity. Table 7 on page 209 defines the
different severity levels.
❑ Date/Time - The date and time the event occurred.
❑ Event ID - A unique number that identifies the event. (Displayed
only in the Full display mode.)
❑ Filename: Line - The subpart of the AT-S60 module and the line
number that generated the event. (Displayed only in the Full
display mode.)
❑ Event - The module within the AT-S60 software that generated
the event followed by a brief description of the event. For a list of
the AT-S60 modules, see Software Modules on page 210.
