AT-S60 Management Software User’s Guide
Section II: Advanced Features 175
Downloading an Image File Using Xmodem
To download an image file using Xmodem (this procedure shows how to
use the Hilgraeve HyperTerminal program), perform the following
procedure:
1. Type X at the prompt displayed in Step 4 in the procedure that begins
on page 173.
The following prompt is displayed:
You are going to invoke the Xmodem download utility.
Do you wish to continue? [Yes/No]
2. Type Y.
The following prompt is displayed:
Use HyperTerminal’s ‘Transfer/Send File’ option to
select Filename & Protocol

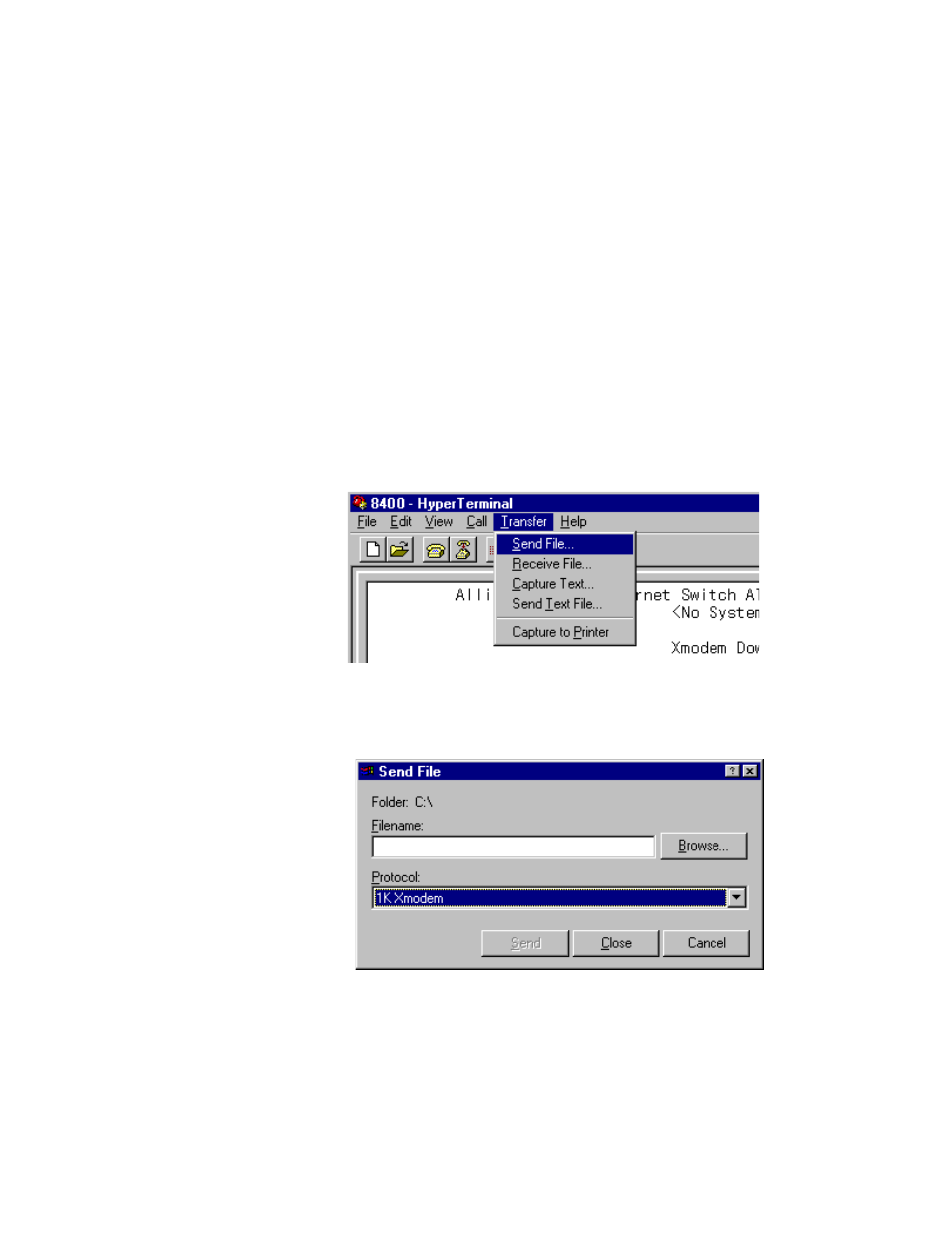

3. In the HyperTerminal main window, select the Transfer menu. Then
select Send File from the pull-down menu, as shown in Figure 47.
Figure 47 Transfer Menu
The Send File window is shown in Figure 48.
Figure 48 Send File Window
4. In the Filename field, type the path and filename, or click the Browse
button to locate and select the file to be downloaded onto the switch.
