Chapter 33: Port Parameters
Section VI: Web Browser Management 626
Displaying Port Status and Statistics
The procedures in this section display the operating status of the ports
on a switch and port statistics. You can view a port’s operating speed,
duplex mode, MDI/MDI-X configuration, and more. You can also view
the operating status of any GBIC modules installed.
Displaying Port
Status
To display the status of a port, perform the following procedure:
1. From the Home Page, select Monitoring.
The Monitoring System Page is displayed with the General Tab
selected by default, as shown in Figure 194 on page 592.
2. Select the Layer 1 option.
The Layer 1 Page is displayed with the Port Settings Tab selected
by default, as shown in Figure 209.

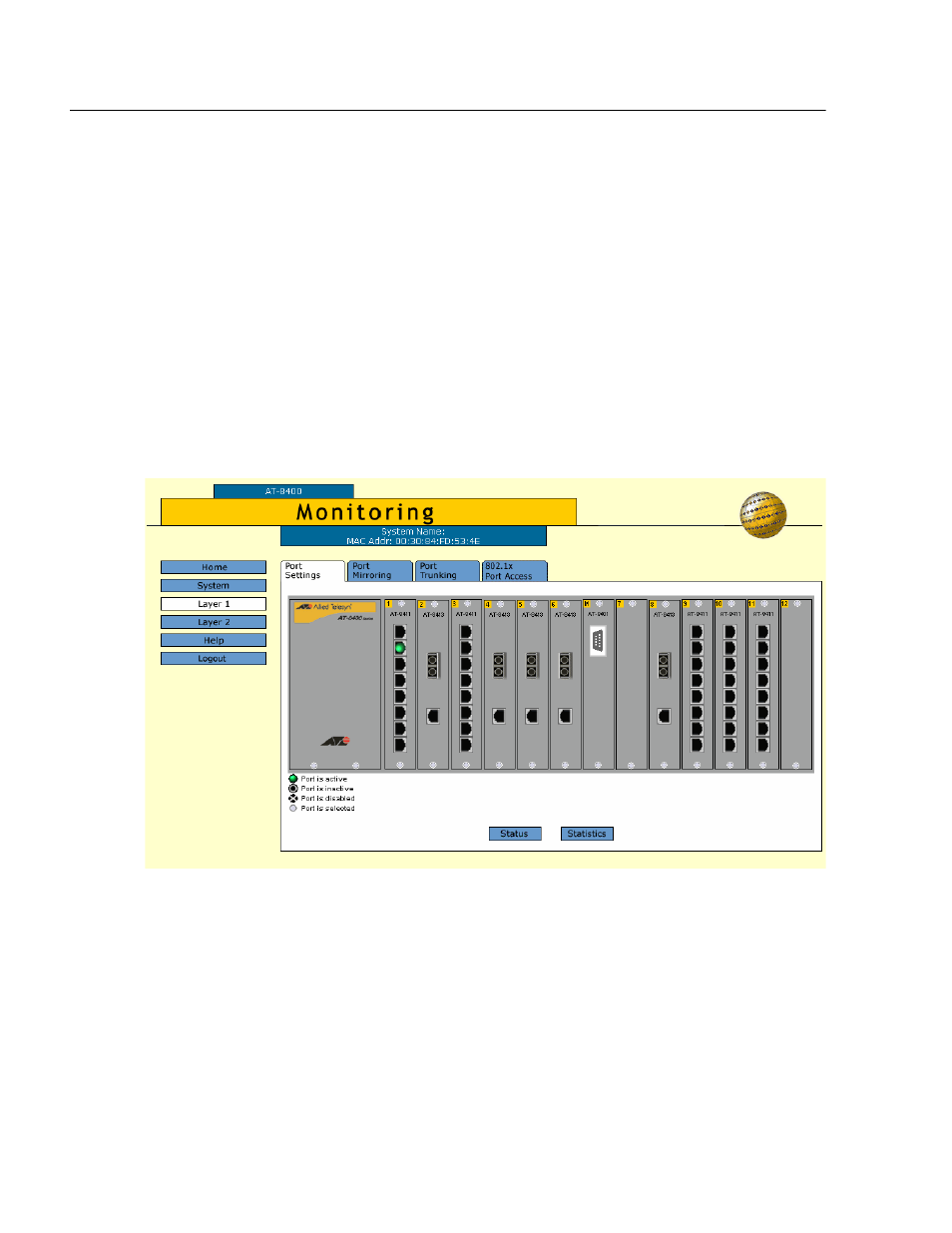

Figure 209 Monitoring Layer 1 Page, Port Settings Tab
This page displays a graphical image of the front of the switch.
Ports with a valid link to an end node are green.
