AT-S60 Management Software User’s Guide
Section VI: Web Browser Management 667

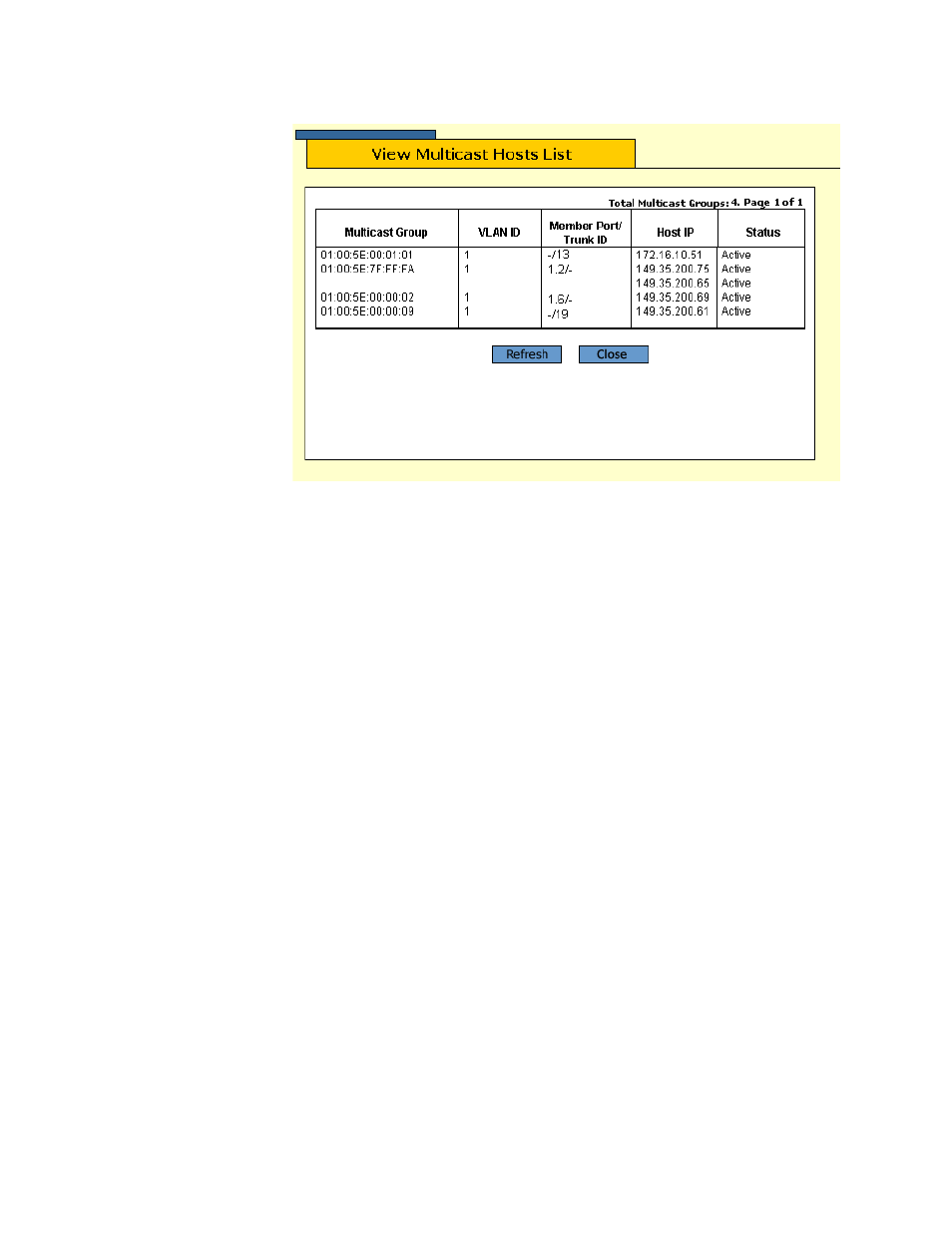

The View Multicast Hosts List Page is shown in Figure 227.
Figure 227 View Multicast Hosts List Page
This page displays the following information:
Multicast Group
The multicast address of the group.
VLAN ID
The VID of the VLAN in which the port is an untagged member.
Member Port/Trunk ID
This column displays host members present on either a port or a
trunk of the switch.
Host IP
The IP address(es) of the host node(s) connected to the port.
Status
Indicates IGMP group status of the port.
— Active indicates the port is active in the IGMP group.
— Left Group indicates the port is not active in the IGMP
group.
4. To view the multicast routers, click View Multicast Router List and
then click View.
