AT-S60 Management Software User’s Guide
Section VI: Web Browser Management 605
Pinging a Remote System
You can instruct the switch to ping a node on your network. This
procedure is useful in determining whether a valid link exists between
the switch and another device.
To ping a network device, perform the following procedure:
1. From the Home Page, select Monitoring.
The Monitoring System Page is displayed with the General Tab
selected by default, as shown in Figure 194 on page 592.
2. Select the Ping Client Tab.
The Ping Client Tab is shown in Figure 201.

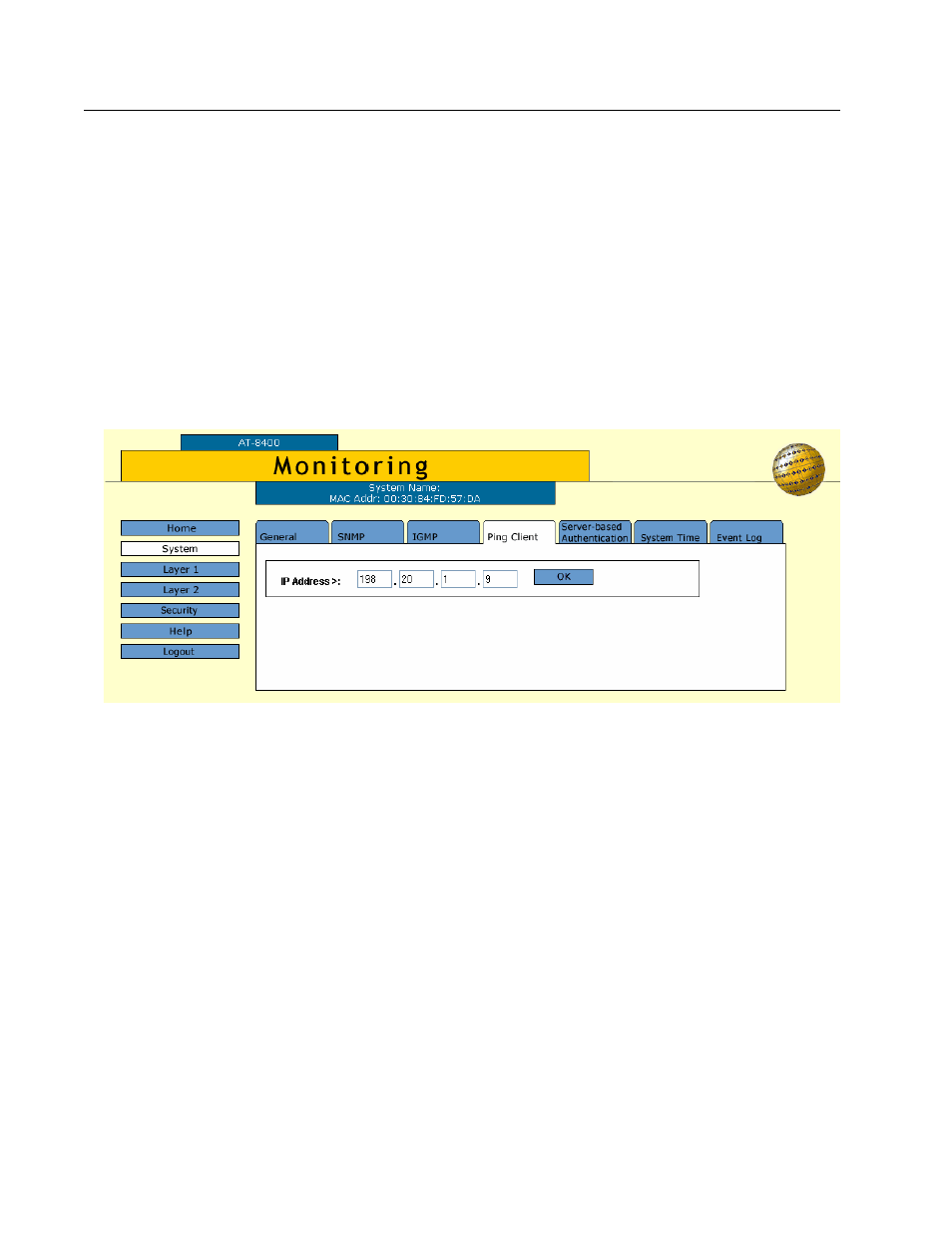

Figure 201 Monitoring System Page, Ping Client Tab
3. Enter the IP address of the end node you want the switch to ping.
4. Click OK.
The results of the ping are displayed in a new page.
5. To stop the pinging, click OK.
