Chapter 40: SNMPv3 Protocol
Section VI: Web Browser Management 696
Enabling the SNMP Protocol
In order to allow an NMS (an SNMP manager) to access the switch, you
need to enable SNMP access. In addition, to allow the switch to send a
trap when it receives a request message, you need to enable
authentication failure traps. This section provides a procedure to
accomplish both of these tasks.
To enable SNMP access and authentication failure traps, perform the
following procedure.
1. From the Home Page, select Configuration.
The Configuration System Page is displayed with the General Tab
selected by default, as shown in Figure 192 on page 584.
2. Select the SNMP Tab.
The SNMP Tab is shown in Figure 242.

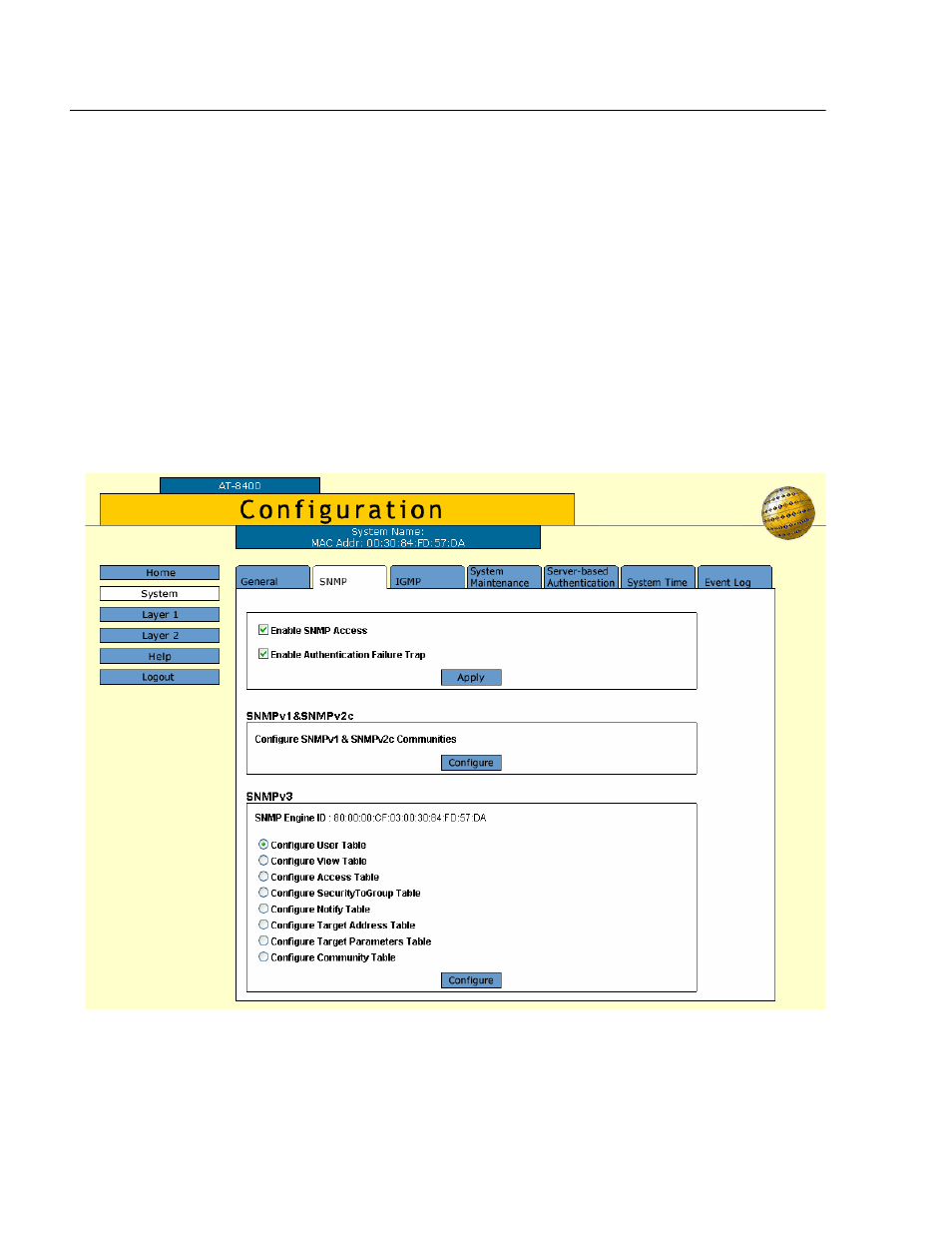

Figure 242 Configuration System Page, SNMP Tab
3. To enable SNMP Access, click the box next to Enable SNMP Access.
