Allied Telesis AT-S60 - Manual (Page 799)

AT-S60 Management Software User’s Guide
Section VI: Web Browser Management 799
Configuring TACACS+
To configure TACACS+, perform the following procedure:
1. From the Home Page, select Configuration.
The Configuration System Page is displayed with the General Tab
selected by default, as shown in Figure 192 on page 584.
2. Select the Server-based Authentication Tab.
The Server-based Authentication Tab is displayed as shown in
Figure 295 on page 797.
3. Click the check circle next to TACACS+ Configuration and click
Configure.
The TACACS+ Client Configuration Page is shown in Figure 296.

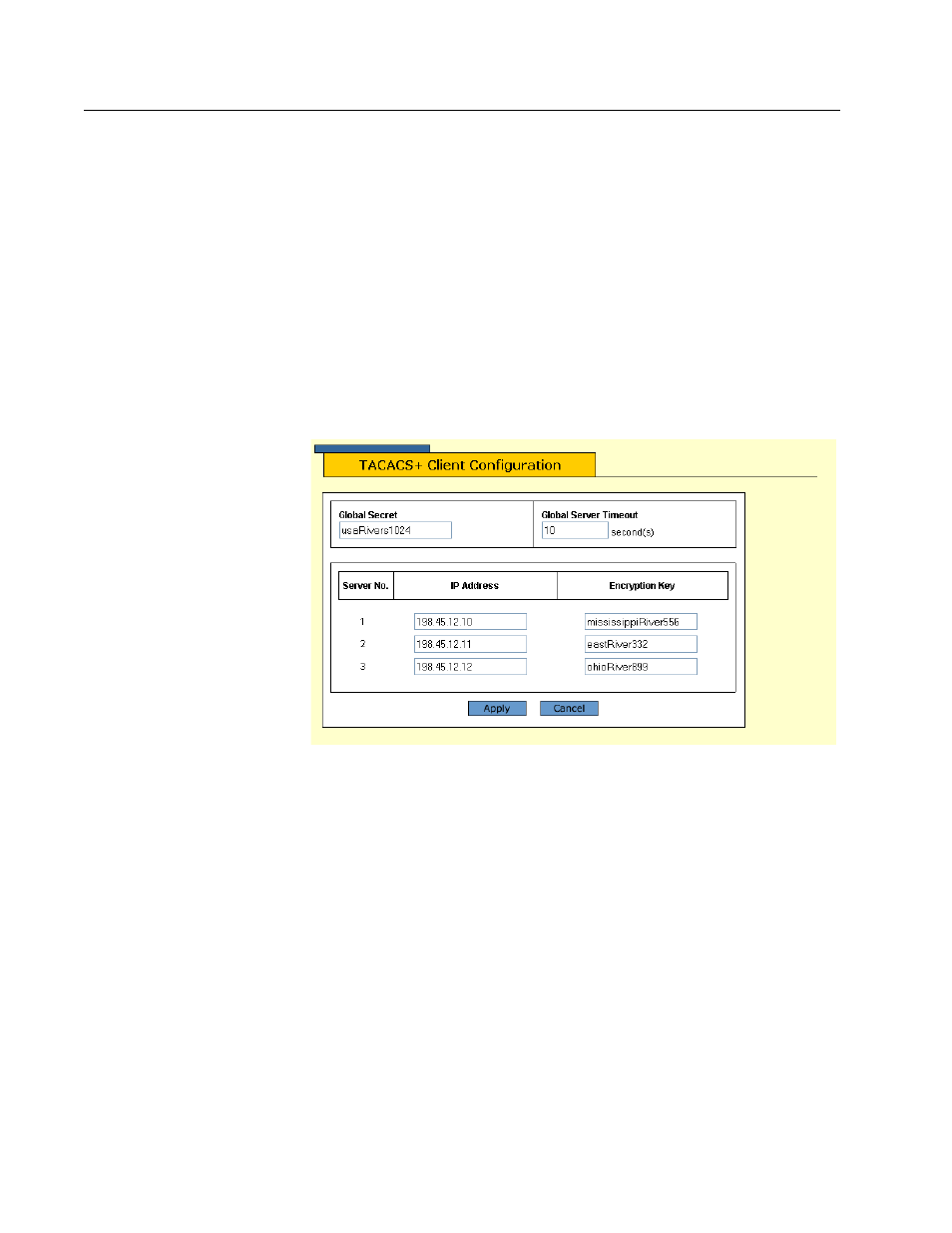

Figure 296 TACACS+ Client Configuration Page
4. Configure the following parameters as needed:
Global Secret
If all of the TACACS+ servers have the same encryption secret, you
can enter the key here. If the servers have different keys, you must
specify each key when you specify a server’s IP address.
